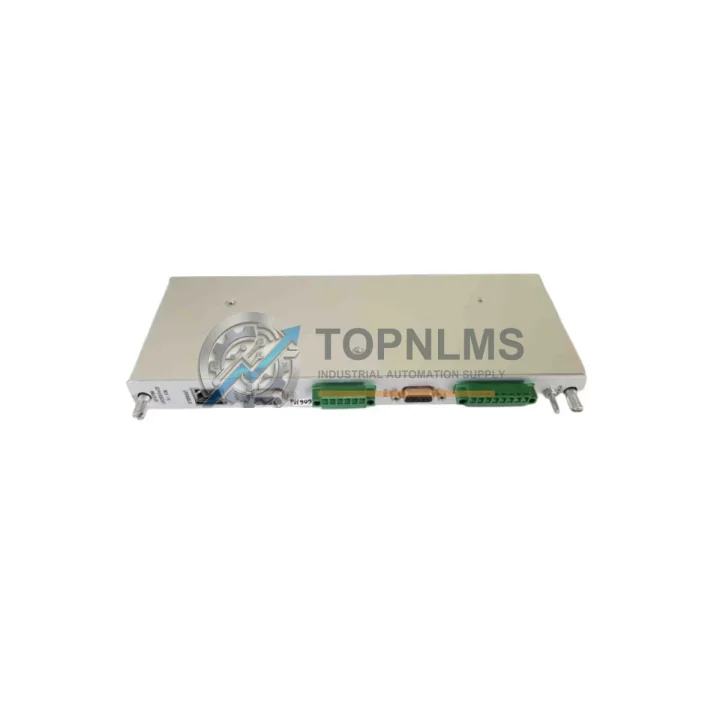

Provib Tech PT2060/91-A0 Replacement for PT2060 Series

Product Overview

Provib Tech PT2060/91-A0 Replacement for PT2060 Series: Seamless Transition from Legacy Vibration Monitoring Systems

The Provib Tech PT2060/91-A0 is the System Interface Module (SIM) designed for the PT2060 Series vibration monitoring rack platform. As legacy condition monitoring systems reach end-of-life or become increasingly difficult to source, plant engineers and reliability teams face mounting pressure to maintain uptime without triggering a full system overhaul. This module provides a direct, validated replacement path — preserving your existing rack infrastructure, wiring topology, and communication architecture while restoring full system functionality.

Whether you are replacing a failed unit, building a critical spare inventory, or executing a phased modernization of your rotating machinery protection system, the PT2060/91-A0 SIM Module is engineered to slot into your existing PT2060 rack without modification to field wiring, transducer cabling, or host communication links. The module maintains backward compatibility with the PT2060 rack backplane, ensuring that adjacent channel modules — including proximity probe input cards, velocity input modules, and keyphasor interface cards — continue to operate without reconfiguration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PT2060/91-A0 replacement rarely involves a single module in isolation. In practice, plant teams executing a rack-level restoration or phased upgrade will also evaluate adjacent components within the same PT2060 monitoring system. Proximity probe input modules — such as the PT2060 eddy-current channel cards — are frequently replaced in parallel when a SIM failure is traced to a broader rack-level event like a power surge or ground fault. Similarly, the PT2060 power supply module should be inspected and, if showing signs of age or voltage drift, replaced concurrently to prevent repeat failures.

For sites integrating the PT2060 rack into a modern DCS or safety instrumented system, a serial-to-Ethernet gateway or Modbus RTU-to-TCP converter is often added at the same time as the SIM replacement, enabling the legacy rack to communicate with contemporary control platforms such as a Siemens S7-300 or Rockwell ControlLogix without replacing the entire monitoring system. Keyphasor interface modules within the PT2060 rack should also be verified for firmware compatibility after a SIM swap, as the system interface card coordinates phase reference data distribution across the rack backplane.

Where the PT2060 rack feeds alarm outputs to a relay output module or external annunciator panel, the wiring from the SIM’s relay contacts to the field terminal strip should be verified against the original loop drawing before commissioning the replacement unit. Signal isolators or barriers installed between the rack and field transducers — particularly in hazardous area installations — do not require recalibration following a like-for-like SIM replacement, provided the input impedance and signal range of the new module match the original specification.

For customers managing a broader machinery protection upgrade, the PT2060/91-A0 is also commonly sourced alongside velocity sensor interface cards, thrust position monitor modules, and differential expansion input cards that share the same PT2060 rack platform. Sourcing these components together reduces lead time risk and simplifies site acceptance testing, as the full rack can be bench-tested as a system before installation.

Retrofit Guidance FAQ

Q: Do I need to rewire field cables when replacing the PT2060/91-A0?
No. The PT2060/91-A0 uses the same backplane connector and terminal block layout as the original SIM. Field wiring to transducers, relay outputs, and host communication ports remains unchanged.

Q: Will my existing RS-232/RS-485 host communication configuration be retained?
Yes. The replacement module supports the same serial communication parameters (baud rate, parity, stop bits, device address) as the original. No changes to the host SCADA or DCS polling configuration are required.

Q: Is there a firmware or software upload required after installation?
The PT2060/91-A0 is supplied ready for installation. If your system uses a configuration tool to set alarm setpoints or channel parameters, those settings should be re-entered or downloaded from a saved configuration file after the module is seated and powered.

Q: Can this module be installed in a live rack with adjacent channels powered?
It is strongly recommended to de-energize the rack before removing or inserting the SIM module, as the system interface card coordinates backplane communication for all installed channel modules. Refer to the PT2060 rack installation manual for the correct power-down sequence.

Q: What physical space does the module require?
The PT2060/91-A0 occupies a single card slot in the PT2060 rack at position 91. No additional panel space, DIN rail, or external enclosure is required.

Warranty Assurance

Every PT2060/91-A0 SIM Module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including backplane communication checks, power rail integrity testing, and serial interface validation. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on fault assessment. Our technical team is available to support installation queries, configuration questions, and commissioning troubleshooting via email and phone. Typical order processing time is 1–3 business days, with express shipping options available for urgent plant requirements. Stock availability is confirmed at time of order, and a certificate of conformance can be provided upon request.

For volume procurement, spare parts programs, or site-wide rack restoration projects, please contact our sales team directly to discuss lead times, pricing, and technical documentation availability.
