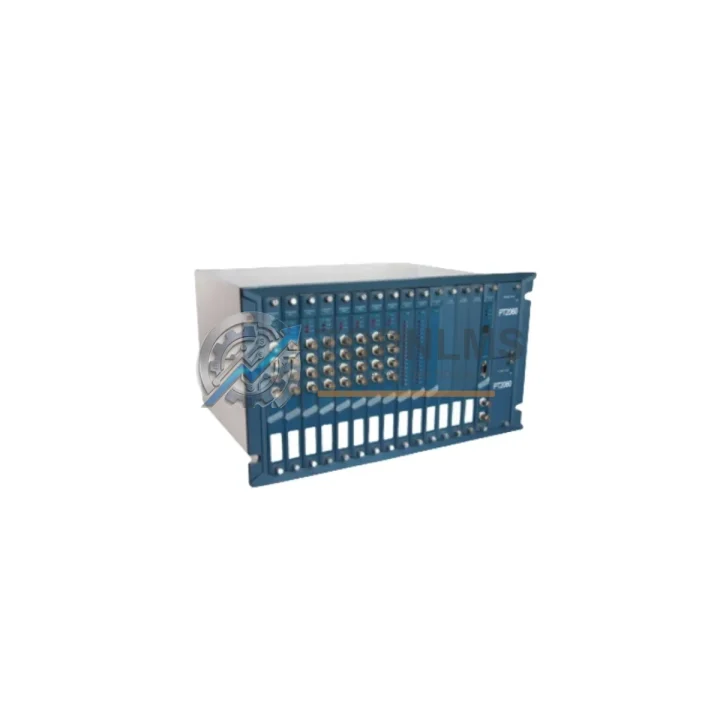

ProvibTech PT2060/40 Replacement for PT2060 Series

Product Overview

ProvibTech PT2060/40 Replacement for PT2060 Series: Smooth Transition & Legacy System Compatibility

The ProvibTech PT2060/40 is a precision vibration monitoring module widely deployed in rotating machinery protection systems across petrochemical, power generation, and heavy industrial facilities. As legacy condition monitoring architectures age and original equipment manufacturers discontinue older firmware revisions, plant engineers face increasing pressure to source verified replacement units that maintain full backward compatibility with existing wiring, signal conditioning chains, and DCS/PLC integration layers. TOPNLMS stocks the PT2060/40 as a ready-to-ship replacement, enabling facilities to restore monitoring continuity with minimal engineering intervention and zero compromise on measurement accuracy.

The PT2060/40 operates within the ProvibTech PT2060 Series platform — a modular vibration monitoring system designed for continuous online protection of turbines, compressors, pumps, fans, and gearboxes. The module accepts standard IEPE (ICP®-compatible) accelerometer inputs and eddy-current proximity probe signals, making it directly interchangeable with earlier PT2060 Series variants in most installation scenarios. When replacing a failed or end-of-life unit, field technicians can typically reuse existing Belden or equivalent shielded cable runs, terminal block wiring, and DIN-rail mounting hardware without modification. This direct compatibility dramatically reduces both engineering hours and unplanned downtime — two of the most significant cost drivers in any rotating machinery maintenance event.

For facilities operating under tight maintenance windows, the PT2060/40’s plug-and-play replacement profile means that a trained technician can complete a channel swap, verify output signals against the DCS historian, and return the machine to service within a single shift. No specialized programming tools are required for a like-for-like replacement, and the module’s front-panel LED indicators provide immediate confirmation of power, signal, and alarm status during commissioning. TOPNLMS maintains in-stock inventory in Xiamen, China, with standard orders shipping within 1–3 business days and express courier options available for emergency scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PT2060/40 retrofit rarely involves a single module in isolation. In practice, plant engineers replacing a vibration monitor must evaluate the surrounding measurement chain and control architecture to ensure system-wide integrity. When the PT2060/40 is installed as a replacement in a ProvibTech rack-based monitoring system, the adjacent PT2060 Series channel cards — including dedicated velocity and displacement monitoring modules — should be inspected for firmware consistency and calibration status. Mismatched firmware revisions across channels in the same rack can introduce subtle measurement offsets that are difficult to diagnose during commissioning.

The signal path upstream of the PT2060/40 typically includes eddy-current proximity probe drivers such as the ProvibTech PR6423 or PR9268 series probe driver modules, which condition raw gap voltage signals before they reach the monitor input. If the probe driver is also approaching end-of-life, replacing it concurrently with the PT2060/40 eliminates a second maintenance window and ensures the entire measurement chain operates within factory specification. Similarly, IEPE accelerometers connected to the PT2060/40’s AC vibration input channels should be verified for sensitivity matching — a 100 mV/g sensor paired with a channel configured for 10 mV/g will produce a tenfold overrange condition that trips protection relays unnecessarily.

On the output side, the PT2060/40’s 4–20 mA analog outputs typically feed into a DCS analog input module — commonly a Yokogawa CENTUM VP AI card, a Honeywell Experion C300 analog input module, or an ABB 800xA S800 I/O module — where the vibration trend is historized and alarmed. Verifying that the DCS input range scaling matches the PT2060/40’s configured full-scale output prevents false alarms during the first hours of operation after replacement. If the facility uses a Modbus RTU integration path instead of hardwired analog, the PT2060/40’s RS-485 communication parameters — baud rate, parity, and device address — must be configured to match the existing Modbus master settings before the unit is energized.

Control cabinet space is rarely a concern with the PT2060/40 given its standard DIN-rail form factor, but engineers working in congested panels should confirm that adjacent terminal blocks — such as Phoenix Contact MACX or Weidmüller DIN-rail terminal strips — provide adequate clearance for the module’s connector and status LED visibility. In installations where the original PT2060 unit was panel-mounted rather than DIN-rail mounted, a DIN-rail adapter bracket may be required. Power supply capacity should also be confirmed: a 24 VDC rail supplying multiple PT2060 Series modules, a ProvibTech power supply module, and associated relay output modules must have sufficient headroom to absorb the PT2060/40’s inrush current at startup without causing a voltage dip that resets neighboring modules.

For facilities migrating from older Bently Nevada 3300 Series or 3500 Series rack-based protection systems to a ProvibTech platform, the PT2060/40 provides a cost-effective entry point. The 4–20 mA output compatibility means that existing DCS wiring from the Bently Nevada rack can often be redirected to the PT2060/40 without retermination, provided the cable shielding and grounding practices meet ProvibTech’s installation requirements. Signal isolators — such as a DIN-rail mounted galvanic isolator from the Pepperl+Fuchs KFD series — may be inserted between the PT2060/40 output and the DCS input to eliminate ground loop interference in facilities with long cable runs or mixed grounding systems.

Retrofit Guidance FAQ

Q: Can I reuse existing wiring when replacing my old PT2060 unit with the PT2060/40?
A: In the vast majority of installations, yes. The PT2060/40 uses the same terminal block pinout as earlier PT2060 Series modules. Verify the wiring diagram against the PT2060/40 datasheet before energizing, but rewiring is typically not required.

Q: Do I need to reprogram my DCS or PLC after installing the PT2060/40?
A: No PLC or DCS program changes are required if the PT2060/40 is configured to the same output range and alarm setpoints as the unit it replaces. Only the module-level configuration — via ProvibTech configuration software or front-panel DIP switches — needs to be verified and matched to the original settings.

Q: Is the PT2060/40 compatible with Modbus RTU communication?
A: Yes. The PT2060/40 supports Modbus RTU over RS-485. Ensure the device address, baud rate, and parity settings are configured to match your existing Modbus master before commissioning.

Q: What probe types are compatible with the PT2060/40?
A: The PT2060/40 accepts IEPE (ICP®-compatible) accelerometers and eddy-current proximity probes with standard gap voltage outputs. Verify probe sensitivity and driver output range against the module’s input configuration.

Q: How much physical space does the PT2060/40 require in the control cabinet?
A: The PT2060/40 uses a standard DIN-rail form factor identical to other PT2060 Series modules. No additional cabinet space is required for a like-for-like replacement.

Q: Can the PT2060/40 replace a Bently Nevada 3300 or 3500 Series channel card?
A: The PT2060/40 is not a direct pin-compatible replacement for Bently Nevada rack cards, but it can serve as a functional equivalent when installed on a separate DIN-rail and wired to the same sensor and DCS termination points. Signal isolators may be required to manage grounding differences between the two platforms.

Q: What is the lead time for the PT2060/40?
A: TOPNLMS maintains in-stock inventory of the PT2060/40 in Xiamen, China. Standard orders ship within 1–3 business days. Express international shipping is available for emergency replacement scenarios.

Warranty Assurance

Every PT2060/40 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, output signal calibration check, and communication interface validation. Units that do not meet ProvibTech factory specifications are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team — reachable at [email protected] or +86 18359293191 — responds to warranty and commissioning inquiries within one business day. We maintain detailed shipping records and test logs for every unit, enabling rapid traceability in the event of a field issue.

For emergency replacement orders where downtime cost is critical, TOPNLMS offers priority processing and express courier options to minimize the gap between order placement and unit arrival on site. Procurement teams can request a proforma invoice, packing list, and certificate of conformance for each shipment to satisfy internal purchasing and quality assurance requirements.
