PROFACE GP477R-EG11 Original Industrial Spare GP77R Compatible

Product Overview

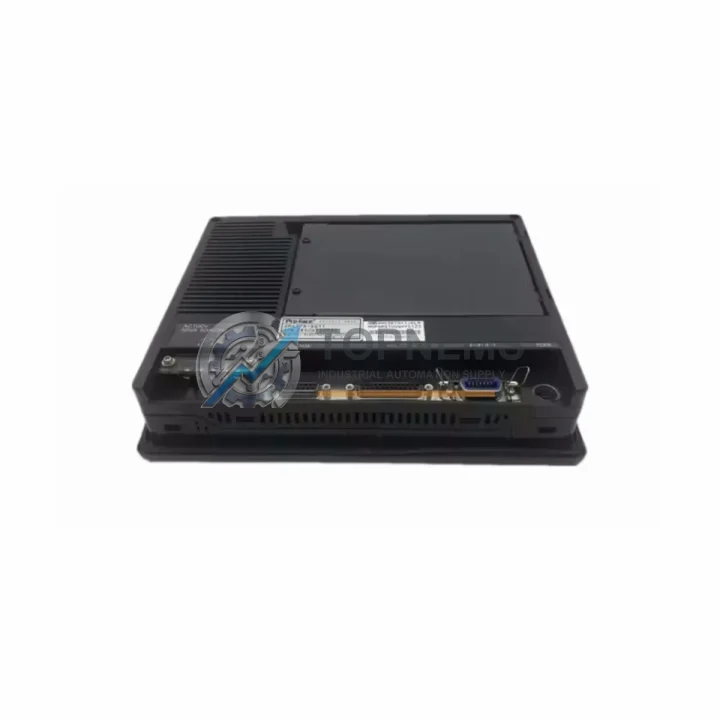

PROFACE GP477R-EG11 Original Industrial Spare GP77R Compatible

When a production line halts due to a failed operator interface, every minute of downtime translates directly into lost output and escalating maintenance costs. The PROFACE GP477R-EG11 is a proven, original-specification HMI touch panel from the GP77R Series — a platform that has anchored operator interfaces across discrete manufacturing, process control, food and beverage, and automotive assembly lines for decades. Keeping a verified spare of the GP477R-EG11 in your maintenance inventory is one of the most cost-effective decisions a plant engineer or maintenance manager can make to protect system uptime and extend the operational life of existing control architectures.

The GP477R-EG11 features a 10.4-inch STN color display with a resolution of 640 × 480 pixels, delivering clear, readable process graphics even in demanding industrial lighting conditions. Its resistive touch interface is engineered for gloved-hand operation, making it well-suited for environments where operators work with protective equipment. The panel communicates via RS-232C and RS-422/485 serial interfaces, maintaining full compatibility with the wide range of PLCs and controllers that the GP77R Series was originally designed to support — including Mitsubishi MELSEC A/Q Series, Omron C/CJ/CS Series, Siemens S7-300/400, and Allen-Bradley SLC/MicroLogix families. This broad protocol compatibility means the GP477R-EG11 can be reintegrated into an existing control cabinet without reprogramming the host controller or rewiring field devices.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for HMI-based control systems goes well beyond replacing the touch panel itself. When scheduling a GP477R-EG11 inspection or replacement, experienced maintenance engineers know that the surrounding electrical environment deserves equal attention. The GP77R Series panel draws its 24 VDC supply from the control cabinet’s DC power rail — if the power supply module is aging or showing voltage ripple, a new HMI panel will inherit the same instability. It is standard practice to simultaneously inspect or stock a replacement 24 VDC DIN-rail power supply alongside the GP477R-EG11 to eliminate this risk.

The serial communication cable connecting the GP477R-EG11 to the host PLC — typically a dedicated PROFACE programming and communication cable such as the CA3-CBLSYS-01 or equivalent RS-232C/RS-422 cable — is a frequent source of intermittent communication faults that are often misdiagnosed as HMI panel failures. Replacing or bench-testing this cable during a scheduled maintenance window prevents unnecessary panel swaps. Similarly, the RS-232C or RS-485 communication port on the host PLC’s CPU module or communication card should be inspected for pin damage and connector wear.

In control cabinets where the GP477R-EG11 is mounted alongside a Mitsubishi Q Series or A Series PLC, maintenance teams should also verify the condition of the PLC’s CPU module battery, I/O module terminal blocks, and any installed communication modules such as the QJ71C24N RS-232/485 serial communication module. A failing battery in the PLC CPU can corrupt the ladder program or lose retentive data, which will manifest as erratic HMI behavior that is easily confused with a panel fault. Stocking a replacement CPU battery and verifying I/O module seating during the same maintenance visit is a proven efficiency measure.

For systems using Omron CJ or CS Series PLCs as the host controller, the CJ1W-SCU21-V1 serial communication unit and associated terminal block adapters should be included in the inspection checklist. Loose terminal connections on the serial interface side are a leading cause of communication timeouts between the GP477R-EG11 and the host controller. A torque-verified re-termination of all RS-422/485 connections, combined with a continuity check of the shielded communication cable, will significantly reduce nuisance faults.

Where the GP477R-EG11 is installed in a cabinet that also houses relay output modules or signal isolators, it is worth inspecting the 24 VDC common ground connections. Ground loops introduced by improperly bonded signal isolators or relay coil suppression circuits can inject noise onto the HMI’s power supply line, causing display flickering or touch calibration drift. Replacing aging surge suppressors on relay coils and verifying the integrity of the cabinet’s PE (protective earth) bus bar are low-cost steps that protect the longevity of the replacement panel.

Strategic Replacement Solutions

The GP477R-EG11 is a direct form-fit-function replacement for any GP77R Series panel installed in the same cutout. Because PROFACE maintained consistent panel cutout dimensions and mounting hole patterns across the GP77R product family, a GP477R-EG11 can be installed in a cabinet originally designed for an earlier GP477R variant without any sheet metal modification. The existing panel gasket and mounting clamps are reused, preserving the IP65 front-panel sealing integrity of the original installation.

Screen project files created with GP-PRO/PB III or GP-PRO EX software are transferable to the replacement panel via the RS-232C programming port using the same PROFACE programming cable used for the original unit. No screen redesign is required — the existing project file is uploaded directly, and the panel is operational within minutes of physical installation. This dramatically reduces the skill level required for field replacement and eliminates the need for a specialist programmer to be present during an emergency swap.

For plants managing a mixed fleet of PROFACE GP77R and GP2000 Series panels, the GP477R-EG11 serves as a stable anchor for the older GP77R installations while newer GP2000 or GP4000 Series panels are progressively introduced on new machine builds. This coexistence strategy allows maintenance teams to standardize on a single spare panel model for legacy equipment while avoiding a costly fleet-wide HMI upgrade program. Stocking two units of the GP477R-EG11 — one installed, one on the shelf — is the minimum recommended inventory posture for any facility with more than three GP77R Series panels in service.

Support FAQ

Q1: How do I verify that a GP477R-EG11 spare is compatible with my existing installation before committing to purchase?
Confirm the panel cutout dimensions match the GP77R Series standard (approximately 259 × 199 mm), verify that your host PLC supports RS-232C or RS-422/485 serial communication, and check that your existing screen project was created with GP-PRO/PB III or GP-PRO EX. All three conditions being met confirms direct compatibility. If you are uncertain, contact TOPNLMS with your existing panel’s nameplate data and we will confirm compatibility before shipment.

Q2: What is the recommended inventory quantity for a facility with multiple GP477R-EG11 panels in service?
Industry best practice for critical HMI spares is a minimum of one spare unit per five installed panels, with a floor of one spare regardless of fleet size. For facilities running 24/7 continuous operations, two spare units are recommended to cover both an emergency replacement and a bench-tested standby. TOPNLMS offers volume pricing for multi-unit spare orders — contact us for a quotation.

Q3: How is the GP477R-EG11 tested before shipment, and what does the 12-month warranty cover?
Every GP477R-EG11 unit shipped by TOPNLMS undergoes a pre-shipment functional test covering power-on self-test, display uniformity, touch calibration, and serial communication port continuity. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with a replacement unit dispatched upon confirmation of the defect.

Q4: What is the typical lead time and shipping method for the GP477R-EG11?
In-stock units are dispatched within 1–3 business days from our Xiamen warehouse. International shipments are handled via DHL Express, FedEx International Priority, or TNT, with typical transit times of 3–7 business days to most destinations. Express same-day dispatch is available for orders confirmed before 14:00 CST. A tracking number is provided upon dispatch.
