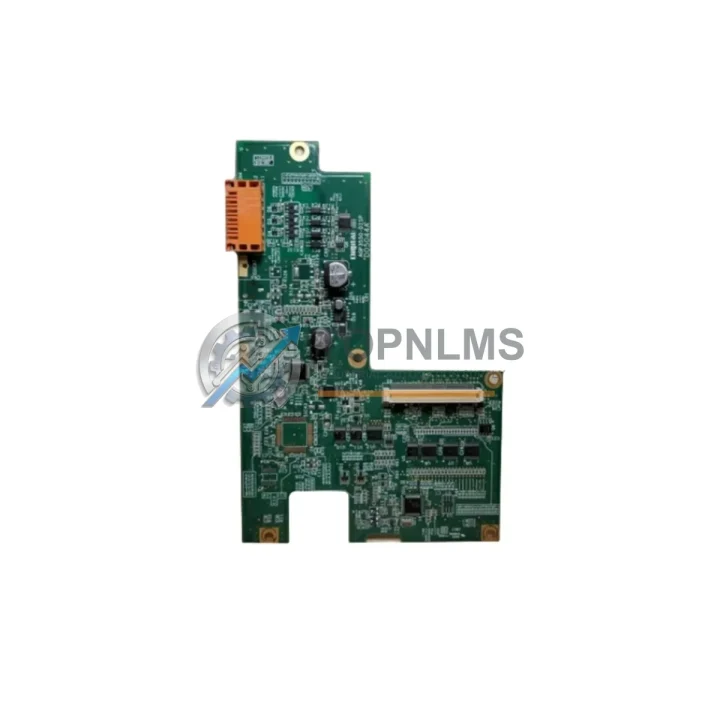

Proface AGP3550-DISP D05044A Replacement for AGP3550 Series: Smooth Transition & Legacy System Compatibility

When your Proface AGP3550 series HMI display fails or reaches end-of-life, sourcing a verified replacement display driver board is the most critical step in minimizing production downtime. The Proface AGP3550-DISP D05044A is the OEM display driver board designed specifically for the AGP3550 series of GP-Pro EX-compatible HMI panels. TOPNLMS maintains ready stock of this component to support urgent field replacements, scheduled maintenance shutdowns, and long-term spare parts programs for industrial facilities running legacy Proface HMI infrastructure.

The AGP3550 series is widely deployed across manufacturing, process control, and machine automation environments. Many facilities operate these panels as the primary operator interface for PLCs, DCS controllers, servo drives, and motion control systems. When the display driver board fails — typically presenting as a blank screen, backlight failure, touch-unresponsive display, or partial image corruption — the entire HMI becomes non-functional, halting operator visibility into the control system. Replacing the AGP3550-DISP D05044A board restores full display functionality without requiring replacement of the entire HMI unit, the front bezel, the main CPU board, or the touch panel assembly.

This replacement is a direct board-level swap. The D05044A display driver interfaces with the AGP3550 main board via the original internal ribbon cable connector, maintaining the same signal routing, backlight power supply path, and display timing parameters as the factory-installed unit. No firmware modification, no GP-Pro EX project re-download, and no PLC communication reconfiguration is required after the board swap. The HMI resumes communication with connected controllers — whether a Mitsubishi MELSEC Q-series PLC, a Siemens S7-300, an Omron CJ2M, or a Rockwell ControlLogix — immediately upon power restoration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A display driver board failure rarely occurs in isolation. In many AGP3550 installations, the HMI is the central operator interface for a broader control architecture that includes multiple interdependent components. During a planned maintenance window or emergency repair, it is common practice to inspect and pre-stage related spare parts to prevent repeat downtime events.

The AGP3550-DISP D05044A is most frequently replaced alongside the Proface AGP3550 main CPU board, which handles GP-Pro EX project execution, PLC communication, and Ethernet connectivity. In systems where the HMI communicates with a Mitsubishi Q06UDEHCPU or Q02UCPU via Ethernet or serial link, verifying the integrity of the QJ71E71-100 Ethernet module or the QJ71C24N RS-232/422 communication module on the PLC rack is a recommended step before returning the system to production.

For facilities running Siemens S7-300 or S7-400 systems interfaced to the AGP3550 via MPI or PROFIBUS, the CP 343-1 Ethernet communication processor and associated SM 321 digital input modules are common co-replacement items during extended shutdown windows. Similarly, in Omron-based architectures, the CJ1W-SCU41-V1 serial communication unit is often inspected when HMI communication faults are logged prior to the display failure.

In control cabinet environments, the AGP3550-DISP D05044A replacement is typically performed alongside inspection of the 24 V DC power supply module feeding the HMI, as undervoltage conditions are a known contributor to display driver board degradation. Phoenix Contact or Siemens SITOP power supply modules in the same cabinet should be load-tested during the repair window. If the HMI is mounted in a panel with a Proface GP-4501T or GP-4601T as a secondary display station, those units’ display assemblies should also be visually inspected for early signs of backlight aging.

For sites planning a phased migration from the AGP3550 platform to a newer GP4000 or GP4000M series HMI, the AGP3550-DISP D05044A serves as a cost-effective bridge solution — maintaining the existing installation while the migration project is scoped, budgeted, and scheduled. During this transition period, maintaining a minimum of one spare display driver board per installed AGP3550 unit is a standard recommendation for facilities with 24/7 production requirements.

Retrofit Guidance FAQ

Q: Does replacing the AGP3550-DISP D05044A require re-downloading the GP-Pro EX project?
No. The GP-Pro EX project is stored in flash memory on the AGP3550 main CPU board, not on the display driver board. Swapping the D05044A display driver does not affect project storage. The HMI will boot normally and resume operation with the existing project after the board replacement.

Q: Will the PLC communication configuration need to be reconfigured after the swap?
No. All communication ports (Ethernet, RS-232, RS-422/485, USB) are located on the main CPU board. The display driver board replacement does not affect any communication parameters, IP address settings, or PLC driver configurations.

Q: Is the wiring harness compatible between the old and replacement board?
Yes. The AGP3550-DISP D05044A uses the same internal LVDS ribbon cable connector as the original factory-installed board. No wiring modification, adapter, or re-pinning is required.

Q: Can this board be installed in a panel cutout without modification?
Yes. The display driver board is an internal component of the AGP3550 HMI unit. It does not affect the external panel cutout dimensions (192 × 138 mm standard). The control cabinet door or panel face requires no modification.

Q: What tools are required for the board swap?
Standard ESD-safe tools: a Phillips screwdriver for the rear housing screws, an anti-static wrist strap, and a clean work surface. The LVDS ribbon cable connector uses a ZIF (zero insertion force) latch — no soldering is required.

Q: Is this board compatible with both the touch-screen and keypad variants of the AGP3550?
The D05044A display driver is specific to the AGP3550 display assembly. Compatibility should be confirmed against the full model number of your installed unit (e.g., AGP3550-T1-D24 for touch, AGP3550-S1-D24 for keypad). Contact TOPNLMS with your full model number if confirmation is required before ordering.

Q: How do I verify the board is the root cause of the display failure before ordering?
Common symptoms of D05044A failure include: completely blank display with backlight on, display backlight not illuminating, partial image with horizontal or vertical lines, and image flickering at startup. If the HMI main board is confirmed operational (GP-Pro EX communication active, PLC data updating) but the display is non-functional, the display driver board is the most probable failed component.

Warranty Assurance

Every Proface AGP3550-DISP D05044A shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on testing, display signal output confirmation, and visual inspection for physical defects. Units that do not pass pre-shipment testing are not dispatched.

In the event of a warranty claim, TOPNLMS provides replacement or refund support within the warranty period. Customers are required to provide the order number, a description of the fault, and photographic or video evidence of the defect. Warranty claims are processed within 3 business days of receipt of documentation. Return shipping for confirmed defective units is coordinated by TOPNLMS.

TOPNLMS ships from Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited available for time-critical orders. Standard lead time for in-stock units is 1–3 business days from order confirmation. Export documentation, commercial invoices, and packing lists are provided with every international shipment to facilitate customs clearance.

For bulk procurement, spare parts program pricing, or technical pre-sales consultation, contact the TOPNLMS sales team directly.
