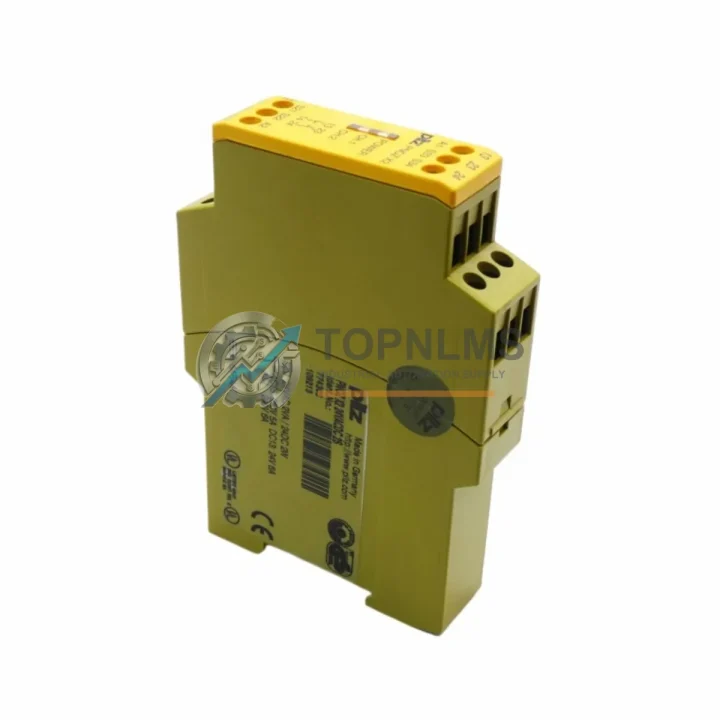

PILZ PNOZ X2 774303 Ruggedized Safety Relay Module

Product Overview

PILZ PNOZ X2 774303 Ruggedized Safety Relay Module for Harsh Industrial Environments

The PILZ PNOZ X2 774303 is a dual-channel safety relay module from the renowned PNOZ X Series, engineered to deliver uncompromising reliability in the most demanding industrial safety applications. Whether deployed on a high-speed automotive assembly line, a continuous chemical processing plant, or a heavy-duty mining conveyor system, the PNOZ X2 774303 maintains its safety integrity even under conditions of elevated temperature, persistent vibration, electromagnetic interference, and high-humidity environments. Its compact DIN-rail mounting design allows seamless integration into existing control cabinets without requiring additional panel space, making it an ideal choice for both new installations and direct replacement of aging safety relay infrastructure.

Designed to monitor emergency stop circuits, safety gate interlocks, and two-hand control devices, the PNOZ X2 774303 operates on a 24 VDC supply and provides two safety-rated output contacts (2 N/O) along with one auxiliary contact (1 N/C) for diagnostic feedback. The dual-channel input architecture ensures cross-fault detection, a critical requirement in Category 3 and Category 4 safety systems per EN ISO 13849-1. This level of protection is non-negotiable in facilities where a single point of failure could result in personnel injury or catastrophic equipment damage.

In harsh industrial environments, the PNOZ X2 774303 proves its resilience daily. On oil and gas platforms where salt-laden air and temperature swings are constant, the module’s sealed housing and robust contact design prevent premature degradation. In steel mills and foundries where radiated heat and airborne particulates are unavoidable, the PNOZ X2 774303 continues to perform within its rated operating temperature range of -10°C to +55°C. Its immunity to conducted and radiated electromagnetic interference — compliant with IEC 61000 series standards — makes it equally dependable in variable frequency drive (VFD) environments where switching noise from drives such as the SIEMENS SINAMICS G120 or ABB ACS880 can disrupt lesser-grade safety devices.

Rugged Specifications Table

Comprehensive Protection Solutions

The PNOZ X2 774303 rarely operates in isolation. In a fully engineered safety architecture, it works in concert with a range of complementary components to deliver system-wide protection. For applications requiring expanded safety output capacity, the PILZ PNOZ X3 774310 — a three N/O contact variant — is frequently paired alongside the PNOZ X2 to cover multiple machine zones from a single control cabinet. Where muting functions are required for material-handling lines, the PILZ PNOZ m B0 configurable safety controller provides the programmable logic backbone that the PNOZ X2 feeds into as a hardwired input device.

On the power supply side, a stable and clean 24 VDC rail is essential for the PNOZ X2 774303 to operate within its rated parameters. Industrial power supply units such as the PHOENIX CONTACT QUINT-PS/1AC/24DC/10 or equivalent 24 VDC DIN-rail PSUs are commonly installed in the same cabinet to ensure voltage stability even during mains fluctuations. Surge protection devices and EMC filters installed upstream of the safety relay further enhance its resilience against transient voltage spikes common in heavy industrial environments.

For wiring termination, WAGO 2-conductor terminal blocks (Series 2001 or 2002) are widely used alongside the PNOZ X2 to provide reliable, vibration-resistant connections for the safety input and output circuits. In applications where the safety relay monitors a light curtain or laser scanner — such as the SICK deTec4 Core or KEYENCE GL-R Series — the PNOZ X2 774303 serves as the hardwired safety interface between the sensing device and the machine’s power contactor or servo drive enable circuit.

Where the control system integrates a SIEMENS S7-300 or S7-1500 PLC with a PROFINET or PROFIBUS backbone, the PNOZ X2 774303 provides the hardwired safety layer that operates independently of the PLC’s software logic — a critical design principle in functional safety engineering. The relay’s auxiliary contact feeds a digital input on the PLC’s SM 321 or ET 200SP DI module for status monitoring and fault logging, without compromising the integrity of the safety circuit itself.

Application in Critical Infrastructure

The PILZ PNOZ X2 774303 is a trusted component across the most demanding sectors of critical infrastructure. In oil and gas facilities, it monitors emergency shutdown (ESD) pushbuttons on wellhead control panels and compressor stations, where a delayed safety response is simply not acceptable. Its Category 4 capability ensures that even a single wiring fault — an open circuit or short to ground — is detected before the next demand on the safety function.

In mining and mineral processing operations, the PNOZ X2 774303 is installed on conveyor belt emergency stop systems, crusher interlock circuits, and hoisting equipment safety gates. The module’s vibration tolerance and wide operating temperature range make it suitable for underground installations where ambient conditions are far from ideal. Maintenance teams value its plug-in terminal design, which allows rapid module replacement during planned shutdowns without rewiring the entire safety circuit.

In power generation and water treatment plants, the PNOZ X2 774303 is deployed on turbine access gate interlocks, high-voltage switchgear safety circuits, and pump station emergency stops. Its TÜV-certified design provides the documented safety evidence required for functional safety audits under IEC 61511 (process industry) and IEC 62061 (machinery). For automotive and metal fabrication plants, it is a standard component on robotic cell safety fencing, press brake two-hand controls, and welding line perimeter guarding systems — environments where the relay may cycle thousands of times per shift under continuous production pressure.

Security & Quality FAQ

Q1: What warranty does the PILZ PNOZ X2 774303 come with?
Every PILZ PNOZ X2 774303 unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional testing to verify contact continuity, input channel response, and supply voltage operation. If a unit fails within the warranty period under normal operating conditions, we provide a replacement or full refund — no lengthy claims process.

Q2: How do I verify compatibility with my existing safety system?
The PNOZ X2 774303 is a direct form-fit-function replacement for earlier PILZ PNOZ X2 variants. It uses the same 22.5 mm DIN-rail footprint, identical terminal assignments, and the same 24 VDC supply requirement. If you are replacing a PNOZ X2P or an older PNOZ 2 unit, please share your existing wiring diagram with our technical team at [email protected] and we will confirm compatibility before shipment.

Q3: Can this module be used in SIL 3 / PLe applications?
Yes. The PILZ PNOZ X2 774303 is TÜV-certified for use in safety functions up to Performance Level e (PLe) per EN ISO 13849-1 and SIL 3 per IEC 62061, when applied in a dual-channel configuration with cross-fault monitoring. Safety documentation including the SISTEMA library data is available upon request to support your functional safety assessment.

Q4: What is your lead time and shipping capability?
Stock units ship within 1–3 business days from our Xiamen warehouse. We support international express shipping via DHL, FedEx, and UPS to most global destinations, with typical transit times of 3–7 business days. For urgent plant shutdowns or emergency maintenance situations, contact us directly at +86 18359293191 for expedited handling.
