PILZ 773540 PNOZ ml1p Ruggedized Safety Module for Harsh Environments

Product Overview

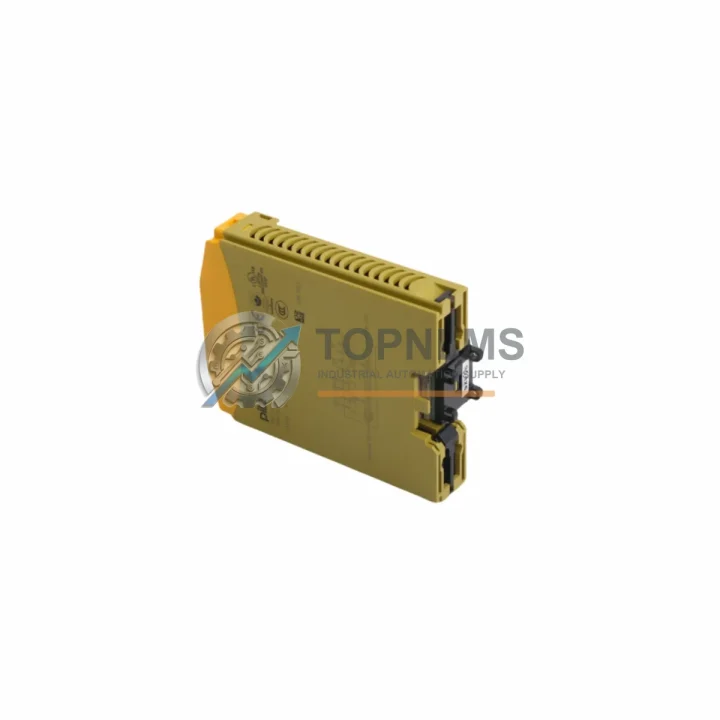

PILZ 773540 PNOZ ml1p Ruggedized Safety Relay Expansion Module for Harsh Environments

The PILZ 773540 PNOZ ml1p is a certified safety relay expansion module engineered for the PNOZmulti 2 modular safety controller platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process lines, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing — this module delivers the functional safety performance that critical infrastructure demands. Whether deployed in a safety-rated control cabinet alongside PILZ PNOZmulti 2 base units or integrated into a broader machine safety architecture, the 773540 PNOZ ml1p maintains SIL 3 / PLe / Cat. 4 compliance without compromise.

Industrial facilities operating continuous production lines cannot afford unplanned downtime caused by unreliable safety components. The PNOZ ml1p expansion module addresses this directly: its compact DIN-rail form factor, robust housing, and wide operating temperature range make it equally at home in a climate-controlled electrical room or a harsh outdoor enclosure exposed to electromagnetic interference from variable frequency drives, motor starters, and high-current bus bars. Its plug-in connection technology enables rapid replacement during scheduled maintenance windows, minimizing mean time to repair (MTTR) and keeping production uptime targets on track.

Rugged Specifications Table

Comprehensive Protection Solutions

The PILZ 773540 PNOZ ml1p is rarely deployed in isolation. In a fully integrated machine safety architecture, it works in concert with a range of complementary components to deliver layered, system-wide protection. The PILZ PNOZ m B0 and PNOZ m B1 base units serve as the central processing core, with the ml1p expansion module extending the I/O capacity needed to monitor additional safety circuits — emergency stop buttons, light curtains, two-hand controls, and interlocking gate switches — across larger machine footprints.

In control cabinets where space and thermal management are critical, the PNOZ ml1p pairs naturally with PILZ PNOZmulti 2 communication modules such as the PNOZ m ES ETH for Ethernet-based diagnostics, enabling remote monitoring of safety states without interrupting production. For applications requiring integration with Profibus DP or PROFINET networks — common in automotive body shops, press lines, and packaging machinery — the corresponding PNOZ m ES DP or PNOZ m ES PN fieldbus modules slot directly into the same backplane, sharing the same plug-in bus connector system.

Beyond the PILZ ecosystem, the 773540 PNOZ ml1p is frequently installed alongside Siemens SIMATIC S7-300/S7-1500 PLC I/O modules, Schneider Electric Modicon safety PLCs, and Allen-Bradley GuardLogix safety controllers in hybrid control architectures where the PILZ safety layer handles SIL 3 / PLe functions while the main PLC manages process logic. Industrial power supplies — such as the PILZ PMCprotego D series or equivalent 24 V DC SITOP units — provide the stable, filtered DC supply the module requires, particularly important in environments with significant conducted EMI from variable frequency drives controlling large induction motors.

Terminal modules, marshalling racks, and DIN-rail mounted relay output modules from the same control cabinet complete the protection chain, ensuring that safety-rated signals from the PNOZ ml1p reach actuators — contactors, solenoid valves, and motor starters — with full traceability and without signal degradation caused by loose wiring or thermal cycling.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the PILZ 773540 PNOZ ml1p is deployed in emergency shutdown (ESD) panels and wellhead control systems where SIL 3 integrity is a regulatory requirement. Its resistance to vibration from reciprocating compressors and pumps, combined with its wide operating temperature range, makes it a dependable choice for both onshore and offshore platform control rooms.

In underground and open-cut mining operations, the module protects conveyor drive systems, crusher interlocks, and personnel access gates. The high-dust, high-humidity conditions typical of coal preparation plants and mineral processing facilities place extreme demands on electronic components; the PNOZ ml1p’s sealed housing and conformal-coated PCB options ensure long service life without premature failure from particulate ingress or condensation.

In power generation and electrical utilities — including thermal, hydro, and wind generation facilities — the module monitors turbine safety circuits, transformer protection interlocks, and high-voltage switchgear access controls. Its compliance with IEC 61508 and EN ISO 13849-1 satisfies the functional safety requirements imposed by grid operators and national safety regulators.

In water and wastewater treatment plants, the PNOZ ml1p supervises pump station interlocks, chemical dosing system guards, and confined-space entry controls. Its low power consumption and DIN-rail mounting make it straightforward to retrofit into existing MCC (motor control center) panels during planned maintenance outages, reducing the capital cost of safety upgrades.

In metallurgical and steel production environments — blast furnaces, rolling mills, and continuous casting lines — the module withstands the intense electromagnetic interference generated by large thyristor drives and induction heating systems, maintaining reliable safety circuit monitoring even in the most electromagnetically hostile industrial settings.
