Phoenix Contact IBS ST ME 24-BK-T Ruggedized Bus Terminal Module

Product Overview

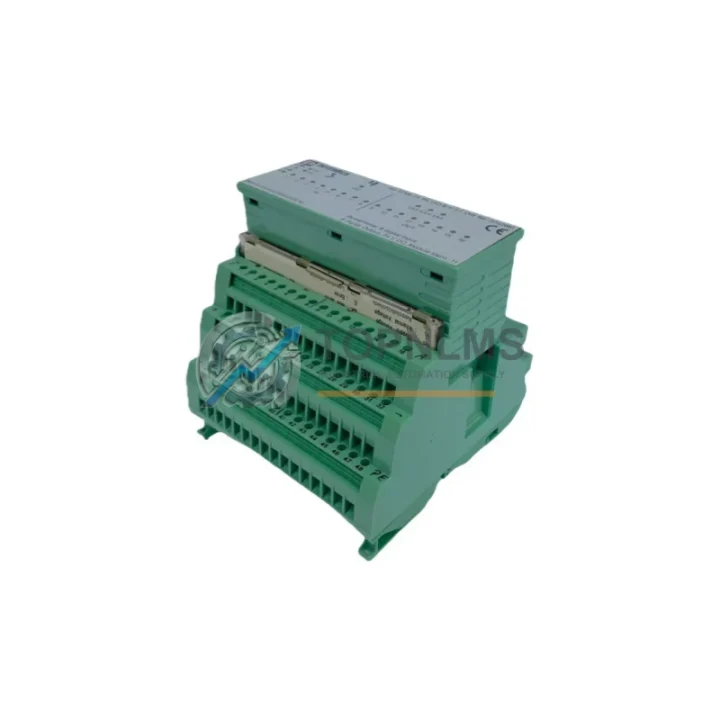

Phoenix Contact IBS ST ME 24-BK-T Ruggedized Bus Terminal Module for Harsh Industrial Environments

The Phoenix Contact IBS ST ME 24-BK-T (Part No. 2754367) is a high-integrity INTERBUS Inline fieldbus bus terminal module engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed and manufactured in Germany to Phoenix Contact’s exacting quality standards, this module delivers unwavering signal integrity and system availability across applications where failure is not an option — from high-temperature foundry floors and dust-laden mining galleries to vibration-intensive offshore platforms and chemically aggressive water treatment facilities.

Built on the proven INTERBUS Inline architecture, the IBS ST ME 24-BK-T functions as a segment-terminating bus terminal that defines the physical and logical boundary of an INTERBUS Inline station. It provides the 24 V DC bus supply termination required to close the INTERBUS ring, ensuring that every upstream I/O module — including digital input terminals, analog signal conditioners, and specialty function modules — maintains a clean, low-impedance communication path even under severe electromagnetic interference (EMI) conditions common in variable-frequency drive (VFD) environments, large motor start-up transients, and high-power switching operations.

Rugged Specifications Table

Comprehensive Protection Solutions

In a modern industrial control cabinet, the IBS ST ME 24-BK-T does not operate in isolation — it is the keystone of a tightly integrated INTERBUS Inline station that may include dozens of coordinated components. A typical high-availability station built around this bus terminal will incorporate Phoenix Contact IBS IL 24 BK-T bus couplers to bridge multiple Inline segments, IBS IL 24 DI 8-T digital input terminals for field sensor acquisition, and IBS IL 24 DO 8-T digital output terminals driving solenoid valves, contactors, and indicator lamps. Analog process variables — pressure, temperature, flow — are captured through IBS IL AI 2/SF-T analog input modules and transmitted with 16-bit resolution across the INTERBUS ring to the host PLC or DCS controller.

For applications requiring functional safety, the station can be extended with Phoenix Contact PSR safety relay modules and PSRmini safety controllers, which monitor emergency-stop circuits, light curtains, and two-hand control devices in accordance with IEC 62061 and ISO 13849. Power distribution within the cabinet is typically handled by Phoenix Contact QUINT POWER or TRIO POWER 24 V DC DIN-rail power supplies, whose active power boost and SFB (Selective Fuse Breaking) technology ensure that a short-circuit on one branch does not collapse the 24 V bus and disrupt the INTERBUS communication ring. Surge protection for field wiring is provided by Phoenix Contact TERMITRAB or PLUGTRAB surge protective devices installed at the cabinet entry point, clamping transient overvoltages before they can reach the sensitive Inline terminals.

Communication upward to the plant DCS or SCADA system is typically routed through a Phoenix Contact ILC 150 ETH or ILC 131 ETH Inline controller, which acts as the INTERBUS master and simultaneously provides an Ethernet/Modbus TCP gateway. In larger installations, Phoenix Contact FL SWITCH managed industrial Ethernet switches provide the backbone network with PROFINET or EtherNet/IP connectivity, while RAD-ISM-900 wireless modules extend I/O reach to remote field stations without additional cable runs. Terminal blocks from the Phoenix Contact CLIPLINE complete system — including PT 2.5 and PTFIX series — provide the reliable, vibration-proof field wiring terminations that complete the protection chain from sensor to controller.

Application in Critical Infrastructure

The IBS ST ME 24-BK-T has established a strong track record across the most challenging sectors of critical infrastructure. In oil and gas upstream and midstream facilities, INTERBUS Inline stations terminated with this module manage wellhead control panels, pipeline valve actuators, and compressor station I/O — environments where ambient temperatures swing from sub-zero winter conditions to summer heat exceeding 50 °C, and where explosive-atmosphere zoning demands that all cabinet components meet strict EMC and isolation standards. The module’s robust 24 V DC bus termination prevents ground loops and common-mode noise from corrupting the INTERBUS data frame, a critical requirement when long cable runs between field junction boxes and the central control room introduce significant capacitive loading.

In mining and mineral processing, continuous vibration from crushers, conveyors, and ball mills subjects control cabinet components to sustained mechanical stress. The IBS ST ME 24-BK-T’s snap-on Inline connector system and DIN-rail mounting provide a mechanically secure installation that resists connector loosening under IEC 60068-2-6 vibration profiles. Coal dust and silica particulate ingress is managed at the cabinet level through IP54 or IP65 enclosures, while the module itself operates reliably within its rated IP20 environment inside the sealed cabinet.

In power generation and electrical utilities — including thermal, hydro, and renewable energy plants — the module supports turbine governor I/O, transformer protection relay interfaces, and substation automation I/O marshalling. The high EMC immunity per EN 61000-6-2 is essential in substations where high-voltage switching events generate intense electromagnetic transients. Water and wastewater treatment plants rely on INTERBUS Inline stations for pump station control, chemical dosing systems, and SCADA telemetry, where the module’s wide operating temperature range accommodates both heated indoor pump rooms and unheated outdoor kiosks. In metals and smelting operations, the module supports continuous casting line I/O, furnace temperature control loops, and rolling mill drive coordination — applications where 24/7 uptime is a commercial imperative and unplanned downtime costs can exceed tens of thousands of dollars per hour.
