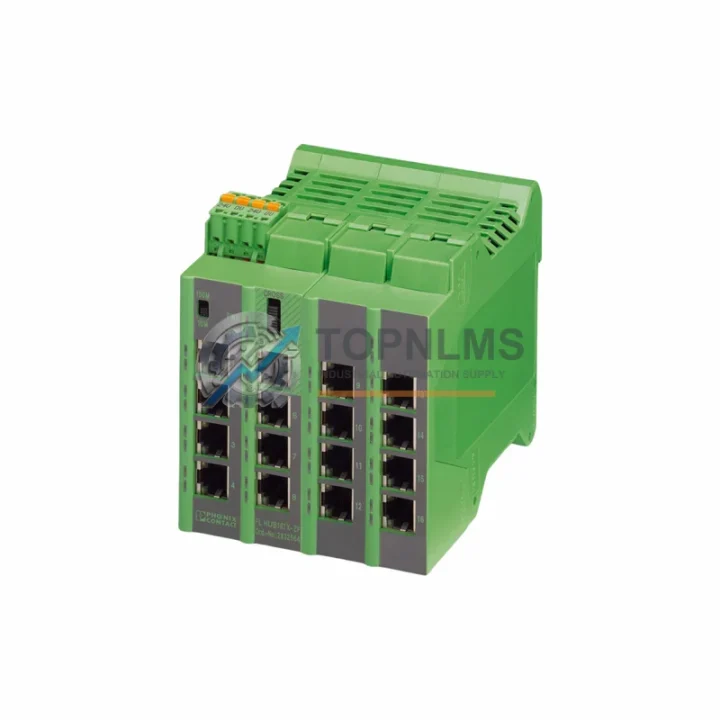

PHOENIX CONTACT FL HUB 16TX-ZF 2832564 Ruggedized Ethernet Hub

Product Overview

PHOENIX CONTACT FL HUB 16TX-ZF 2832564 Ruggedized Ethernet Hub: Industrial Resilience for the Harshest Environments

The PHOENIX CONTACT FL HUB 16TX-ZF (Part No. 2832564) is a 16-port industrial Ethernet hub engineered for continuous, reliable operation in demanding automation environments. Designed as part of the proven FL HUB Series, this unit delivers deterministic network performance across applications where standard commercial networking equipment would fail — including high-temperature process lines, high-humidity enclosures, vibration-intensive machinery, and environments subject to severe electromagnetic interference (EMI).

Whether deployed in a control cabinet alongside a PHOENIX CONTACT FL SWITCH 8TX managed switch or integrated into a distributed I/O network driven by a PHOENIX CONTACT ILC 150 ETH inline controller, the FL HUB 16TX-ZF maintains stable 10/100 Mbps Ethernet connectivity without packet loss or link instability — even under sustained electrical noise from variable frequency drives, servo amplifiers, and high-current switching loads.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, network reliability is inseparable from the reliability of every connected device. The FL HUB 16TX-ZF is routinely deployed as the Ethernet backbone hub connecting PHOENIX CONTACT AXL F BK ETH bus couplers, FL COMSERVER UNI serial-to-Ethernet gateways, and PSI-MOS-DNET CAN/FO 850 E fiber optic media converters — all within a single DIN-rail-mounted control cabinet.

In high-vibration environments such as compressor stations or rolling mill drives, the hub’s DIN rail mounting and robust RJ45 port design prevent connector fatigue failures that plague consumer-grade switches. When paired with a PHOENIX CONTACT QUINT-PS/1AC/24DC/20 power supply unit, the system benefits from a stable, filtered 24 V DC rail that suppresses conducted interference before it reaches the hub’s internal circuitry.

For safety-critical zones requiring SIL-rated control, the FL HUB 16TX-ZF provides the Ethernet segment that links PHOENIX CONTACT PSR-SCP-24DC/ESD/5X1/1X2 safety relays and PSR-SPP-24DC/URM/5X1/2X2 safety modules to the supervisory PLC or DCS. Its passive hub architecture ensures that all connected nodes receive identical frame copies simultaneously — a behavior that simplifies deterministic safety polling in non-switched segments.

Terminal connectivity within the cabinet is typically handled by PHOENIX CONTACT UK 5-TWIN or ST 2.5 series terminal blocks, while PHOENIX CONTACT MCR-SL-S/I-4-ILP signal conditioners protect analog I/O channels from ground loops and transient spikes that could otherwise corrupt process data transmitted over the Ethernet network.

Application in Critical Infrastructure

In oil and gas upstream facilities, the FL HUB 16TX-ZF is deployed in wellhead control panels and SCADA RTU enclosures where ambient temperatures fluctuate widely between day and night cycles, and where explosive atmosphere zoning demands that all equipment within the safe area control room meet stringent EMC and surge immunity standards. The hub’s compliance with EN 61000-6-2 industrial immunity ensures it withstands the high-energy transients generated by solenoid valve switching and motor starter contactors.

In power generation and substation automation, the hub serves as the Ethernet aggregation point for IED (Intelligent Electronic Device) communications, connecting protection relays, energy meters, and bay controllers to the station HMI. Its wide operating temperature range and DIN rail form factor make it suitable for installation in outdoor marshalling kiosks and secondary equipment rooms.

In water and wastewater treatment plants, continuous 24/7 operation is non-negotiable. The FL HUB 16TX-ZF supports uninterrupted network connectivity for pump control PLCs, chemical dosing systems, and SCADA historian servers — environments where a network outage can trigger regulatory compliance failures or environmental incidents.

In metallurgical and heavy manufacturing facilities, the hub withstands the intense electromagnetic fields generated by arc furnaces, induction heaters, and large DC drive systems. Its passive architecture eliminates the risk of managed-switch firmware failures that can cause network partitioning during critical production sequences.

Security & Quality FAQ

Q1: Does the FL HUB 16TX-ZF 2832564 come with a warranty?
Yes. Every unit shipped by TOPNLMS is covered by a 12-month quality warranty from the date of delivery. If the unit exhibits any functional defect within this period under normal operating conditions, we provide replacement or full technical support at no additional cost.

Q2: How is each unit tested before shipment?
All FL HUB 16TX-ZF units undergo pre-shipment functional verification, including power-on testing, port link integrity checks across all 16 RJ45 ports, and visual inspection for physical damage. Units that do not pass our quality checklist are quarantined and not dispatched.

Q3: Is this hub compatible with existing PHOENIX CONTACT FL SWITCH and ILC controller networks?
Yes. The FL HUB 16TX-ZF operates as a standard IEEE 802.3/802.3u compliant device and is fully interoperable with PHOENIX CONTACT FL SWITCH managed and unmanaged switches, ILC inline controllers, AXL remote I/O bus couplers, and any third-party Ethernet device conforming to 10/100BASE-TX standards. No special configuration is required.

Q4: Can TOPNLMS support long-term or repeat procurement of this part?
Absolutely. TOPNLMS maintains dedicated stock of high-demand PHOENIX CONTACT FL HUB Series components to support MRO (Maintenance, Repair & Operations) procurement programs. We can provide scheduled delivery agreements, advance reservation of stock, and technical documentation packages for engineering teams managing spare parts inventories in critical infrastructure facilities.
