Pepperl+Fuchs NJ4-12GM-N-10M Ruggedized Inductive Sensor

Product Overview

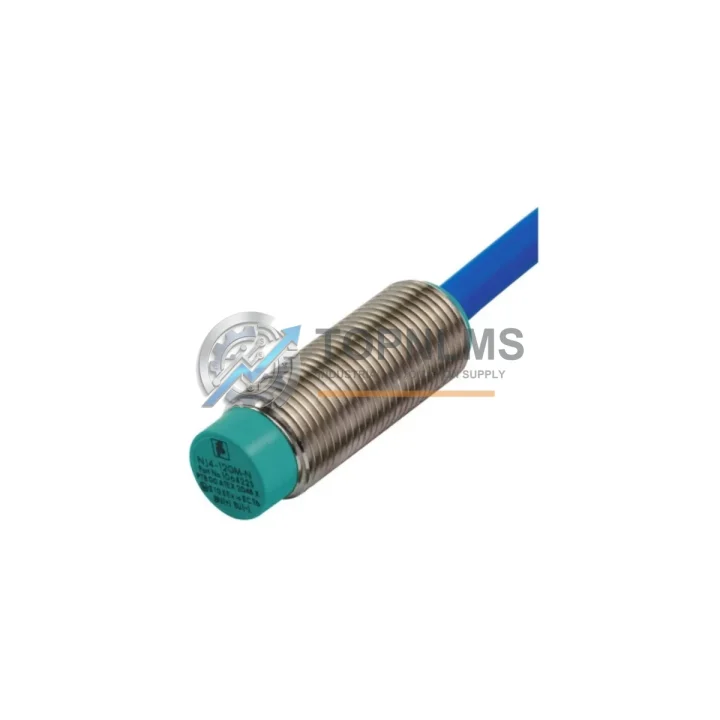

Pepperl+Fuchs NJ4-12GM-N-10M Ruggedized Inductive Sensor: Industrial Resilience for Harsh Environments

The Pepperl+Fuchs NJ4-12GM-N-10M is a high-performance inductive proximity sensor engineered for continuous, reliable operation in the most demanding industrial environments. Built on Pepperl+Fuchs’ proven NJ Series platform, this M12-threaded sensor delivers a stable 4 mm sensing range with NPN normally-closed (NC) output and a 10-metre pre-wired cable — making it a preferred choice for machine builders, system integrators, and maintenance engineers who cannot afford unplanned downtime.

Designed to withstand high-temperature fluctuations, elevated humidity, heavy dust accumulation, mechanical vibration, and electromagnetic interference (EMI) common in heavy industrial settings, the NJ4-12GM-N-10M maintains consistent switching accuracy across the full operating cycle. Its stainless-steel M12 barrel housing provides robust mechanical protection, while the IP67-rated sealing ensures complete dust-tightness and resistance to temporary water immersion — critical for wash-down zones, outdoor installations, and wet-process environments.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the NJ4-12GM-N-10M functions as a critical field-level sensing element that feeds position and presence data directly into the control layer. When integrated with a Siemens S7-1200 or S7-300 PLC via a digital input module such as the SM 1221 DI 16×24VDC, the sensor’s NPN NC signal is interpreted with high noise immunity, ensuring that even in environments with heavy motor-drive interference from Siemens SINAMICS G120 variable frequency drives, the switching state is accurately captured without false triggers.

For DCS-based installations — such as those running on Emerson DeltaV M-Series I/O modules or Honeywell Experion C300 controllers — the NJ4-12GM-N-10M can be wired through marshalling panels using Phoenix Contact PTFIX terminal blocks, which provide vibration-resistant, tool-free connections that maintain signal integrity across the full cable run. In high-density control cabinets, pairing the sensor with a Weidmüller ACT20P signal conditioner further isolates the NPN output from ground loops and potential EMI coupling introduced by adjacent power supplies or relay coils.

Safety-critical lines benefit from combining the NJ4-12GM-N-10M with Pilz PNOZ X safety relays or Sick Flexi Soft safety controllers, where the sensor’s reliable NC contact logic supports emergency-stop and guard-monitoring circuits. For communication-intensive architectures using PROFIBUS DP or PROFINET IO, the sensor’s fast switching frequency (up to 1,000 Hz) ensures that position feedback reaches the Siemens ET 200SP distributed I/O head station within the required cycle time, supporting real-time process control without latency-induced faults.

In power distribution panels, the sensor is frequently deployed alongside Schneider Electric Zelio Logic smart relays and ABB CP600 operator panels to provide machine-state feedback for HMI visualization. Its 10-metre pre-wired cable eliminates the need for field-side junction boxes in many installations, reducing both installation time and potential ingress points for moisture or contaminants.

Application in Critical Infrastructure

The NJ4-12GM-N-10M has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities, the sensor monitors valve positions, pig launcher gates, and pump shaft proximity in environments where explosive atmospheres, H₂S exposure, and extreme temperature swings are routine. Its IP67 sealing and stainless-steel housing resist corrosive media contact, while its wide supply voltage range (10–30 V DC) accommodates the variable bus voltages common in remote field panels powered by solar or battery backup systems.

In underground and open-cut mining operations, the sensor is mounted on conveyor belt systems, crusher feed chutes, and ore-handling equipment where continuous vibration, coal dust, and water spray create conditions that rapidly degrade lesser sensors. The NJ4-12GM-N-10M’s IEC 60068-2-6 vibration compliance ensures that the sensing gap remains stable even under sustained mechanical shock, preventing nuisance trips that would halt production lines.

At thermal and hydroelectric power generation plants, the sensor is used in turbine governor feedback loops, cooling water pump monitoring, and switchgear position detection. Its fast switching frequency supports the high-speed feedback requirements of governor control systems, while its EMC compliance prevents interference from high-voltage bus bars and transformer fields. In municipal water treatment and wastewater facilities, the sensor monitors actuator positions on sluice gates, chemical dosing pumps, and filter press mechanisms — applications where continuous 24/7 operation and resistance to chlorine-laden atmospheres are non-negotiable.

Metallurgical and steel-making plants deploy the NJ4-12GM-N-10M in rolling mill position detection, ladle transfer car sensing, and furnace door monitoring, where ambient temperatures near the sensor can approach the upper limits of its rated operating range. In these environments, the sensor’s thermal stability and consistent repeat accuracy ensure that the control system receives reliable position data even as the surrounding structure expands and contracts with thermal cycling.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it processed?
All NJ4-12GM-N-10M units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, premature electrical failure, and housing integrity issues under normal operating conditions. In the event of a warranty claim, customers contact [email protected] with the order reference and a fault description. Replacement or repair is processed within 5 business days of the defective unit being received at our facility.

Q2: How is each unit tested before shipment?
Every NJ4-12GM-N-10M undergoes pre-shipment functional verification including output switching confirmation at rated voltage, insulation resistance check, and cable continuity test. Units are inspected for housing damage, thread integrity, and cable jacket condition. A test report is available upon request for customers with incoming inspection requirements.

Q3: Is the NJ4-12GM-N-10M compatible with existing Pepperl+Fuchs NJ Series installations?
Yes. The NJ4-12GM-N-10M is dimensionally and electrically compatible with other M12-threaded NJ Series sensors from Pepperl+Fuchs, including the NJ4-12GM-N, NJ4-12GM-N-5M, and NJ4-12GK-N variants. It can be used as a direct replacement in existing mounting brackets and wiring harnesses without modification, making it an efficient spare-parts solution for facilities maintaining NJ Series sensor inventories.

Q4: Can TOPNLMS support long-term supply continuity for maintenance and MRO programs?
Yes. TOPNLMS maintains dedicated stock of high-demand Pepperl+Fuchs NJ Series sensors to support planned maintenance schedules, emergency breakdowns, and MRO (Maintenance, Repair & Operations) procurement programs. Customers with recurring demand can contact us to discuss reserved stock arrangements, blanket purchase orders, and priority dispatch agreements that ensure parts availability without lead-time risk.
