Pepperl+Fuchs CJ1-12GK-N Original Industrial Spare CJ Compatible

Product Overview

Pepperl+Fuchs CJ1-12GK-N Original Industrial Spare CJ Compatible: System Stability & Industrial Maintenance Value

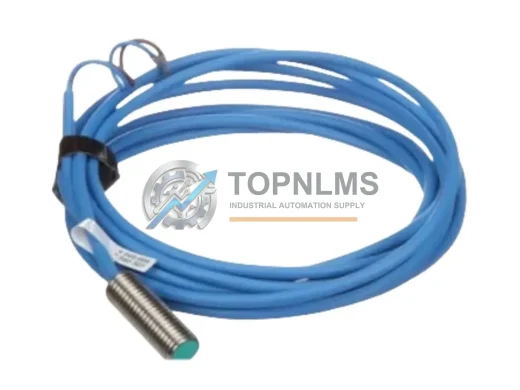

The Pepperl+Fuchs CJ1-12GK-N is an original inductive proximity sensor from the renowned CJ Series, engineered for demanding industrial automation environments. With an M12 cylindrical housing, NPN output configuration, and a 1 mm sensing range, this sensor delivers the precision and reliability that maintenance engineers depend on during scheduled inspections, emergency replacements, and long-term preventive maintenance programs. Whether you are managing a high-throughput production line, a legacy PLC-controlled conveyor system, or a multi-axis robotic cell, the CJ1-12GK-N provides the consistent switching performance required to maintain uptime and reduce unplanned downtime costs.

Sourced directly from Pepperl+Fuchs’ certified supply chain, every unit shipped from TOPNLMS undergoes pre-shipment functional verification. Each sensor is backed by a 12-month warranty, giving procurement teams and maintenance managers the confidence to stock this component as a critical spare without concern for shelf-life degradation or counterfeit risk.

Critical Technical Specs

Preventive Maintenance Strategy

In any automated production environment, the CJ1-12GK-N rarely operates in isolation. It is typically wired into a 24 V DC digital input circuit alongside other sensing and switching components that share the same control cabinet, I/O rack, or field junction box. A disciplined preventive maintenance strategy requires evaluating the entire signal chain — not just the sensor itself.

During scheduled downtime or annual overhauls, maintenance teams should simultaneously inspect the M12 sensor connection cables (4-pin, shielded) that carry the CJ1-12GK-N’s output signal back to the PLC I/O module. Cable insulation degradation and connector corrosion are among the most common causes of intermittent sensor faults that are misdiagnosed as sensor failure. Replacing the sensor without inspecting the cable assembly wastes time and budget.

At the PLC cabinet level, the digital input module receiving the CJ1-12GK-N’s NPN signal should be verified for correct input threshold voltage and channel integrity. In Siemens SIMATIC S7-300/400 systems, modules such as the SM 321 DI 32×DC 24V are commonly paired with NPN proximity sensors in this sensing range. Similarly, in Omron CJ-series PLC systems, the CJ1W-ID211 or CJ1W-ID231 digital input modules are typical counterparts. If the input module shows channel faults or erratic readings across multiple channels, the module itself — not the sensor — may require replacement.

The 24 V DC power supply module feeding the sensor circuit is another critical component to evaluate. Voltage sag or ripple on the supply rail can cause proximity sensors to output false signals or fail to switch reliably. Power supply modules from the same control cabinet — such as Siemens SITOP PSU100S or equivalent DIN-rail power supplies — should be load-tested during the same maintenance window.

For systems using terminal blocks and DIN-rail mounted relay modules, inspect the terminal connections at the field junction box where the CJ1-12GK-N’s cable terminates. Loose or oxidized terminals introduce resistance that degrades the NPN output signal. Phoenix Contact or Weidmüller-style screw terminal blocks and fuse terminal modules in the same circuit should be torque-checked and visually inspected for discoloration or burn marks.

If the CJ1-12GK-N is part of a safety-rated detection circuit, verify that any associated safety relay module or safety PLC input card is functioning within its rated response time. Safety relay modules from Pilz, Schmersal, or equivalent brands that monitor the sensor’s output for E-stop or light curtain bypass logic must be tested in conjunction with sensor replacement.

Finally, for facilities running PROFIBUS or PROFINET fieldbus architectures, the communication module or gateway aggregating I/O data from the sensor’s PLC rack should be checked for firmware currency and bus error logs. A failing DP/PN coupler or remote I/O station can mask sensor faults or generate false alarms that lead to unnecessary sensor replacements. Stocking a spare remote I/O module or fieldbus coupler alongside the CJ1-12GK-N is a sound inventory strategy for facilities with aging fieldbus infrastructure.

Strategic Replacement Solutions

The CJ1-12GK-N is a direct, drop-in replacement for aging or failed inductive proximity sensors in the Pepperl+Fuchs CJ Series. Its M12 form factor, NPN output, and 1 mm sensing range make it mechanically and electrically interchangeable with earlier CJ Series variants, eliminating the need for bracket modifications, cable re-termination, or PLC parameter changes during replacement.

For facilities managing legacy systems originally commissioned with first-generation CJ Series sensors, the CJ1-12GK-N provides a path to extend system life without costly control system upgrades. Maintenance planners can standardize on this part number across multiple machine cells, reducing the number of unique SKUs held in the spare parts room and simplifying reorder processes.

From a procurement standpoint, sourcing the CJ1-12GK-N through TOPNLMS provides access to verified original stock with full traceability. Each unit is tested prior to shipment, packaged in anti-static protective packaging, and accompanied by documentation supporting incoming inspection procedures. The 12-month warranty covers manufacturing defects and provides a clear escalation path if a unit fails in service — reducing the financial risk of stocking industrial spares in advance of need.

For facilities transitioning from older NPN sensor models to current production variants, the CJ1-12GK-N also serves as a bridge component — maintaining backward compatibility with existing wiring and I/O configurations while delivering current-generation switching performance and IP67 environmental protection.

Support FAQ

Q1: What is the shelf life of the CJ1-12GK-N when stored as a spare?
When stored in original packaging in a dry, temperature-controlled environment (15–25 °C, <60% RH), the CJ1-12GK-N has an expected shelf life of 5+ years without performance degradation. The solid-state NPN output circuit and sealed M12 housing make it well-suited for long-term spare parts inventory. TOPNLMS recommends annual visual inspection of stored units to verify packaging integrity.

Q2: How do I verify compatibility with my existing PLC I/O module before installation?
Confirm that your digital input module accepts NPN (sinking) 24 V DC signals with a minimum input current threshold below 2 mA. The CJ1-12GK-N’s NPN output is compatible with the vast majority of 24 V DC digital input cards used in Siemens SIMATIC S7, Omron CJ/CS, Mitsubishi MELSEC, and Schneider Modicon platforms. If your system uses PNP (sourcing) input modules exclusively, this sensor is not directly compatible — contact TOPNLMS for the appropriate CJ Series PNP variant.

Q3: What pre-shipment testing does TOPNLMS perform on the CJ1-12GK-N?
Each CJ1-12GK-N unit undergoes functional output switching verification, supply voltage range testing (10–30 V DC), and visual inspection for housing and connector integrity before dispatch. Units that do not pass all checks are quarantined and not shipped. A 12-month warranty is applied from the date of shipment, covering manufacturing defects under normal operating conditions.

Q4: Can I use the CJ1-12GK-N as a direct replacement without reconfiguring my PLC program?
Yes. The CJ1-12GK-N is a like-for-like replacement for CJ Series inductive proximity sensors with the same output type and sensing range. No PLC program modifications, I/O address changes, or scaling adjustments are required. Simply disconnect the existing sensor, install the CJ1-12GK-N using the same M12 mounting thread and connector, and verify switching function with a metal target at the rated 1 mm sensing distance before returning the machine to service.
