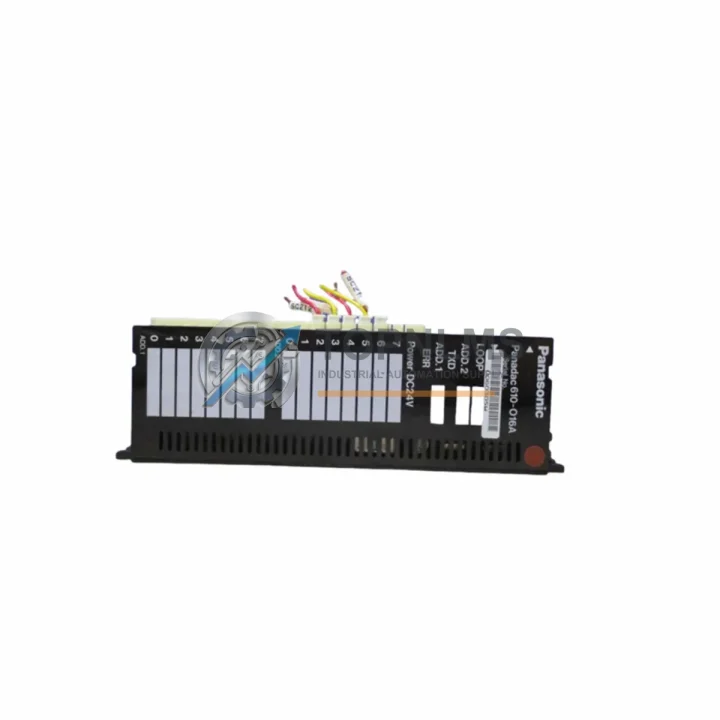

Panasonic Panadac610-O16A Ruggedized Output Module

Product Overview

Panasonic Panadac610-O16A Ruggedized Output Module: Industrial Resilience for Harsh Environments

The Panasonic Panadac610-O16A is a 16-channel optical output I/O module engineered for the PANADAC 610 programmable logic controller series. Designed to operate reliably in the most demanding industrial environments — including high-temperature foundries, high-humidity water treatment plants, dust-laden mining galleries, and vibration-intensive heavy manufacturing lines — this module delivers consistent signal isolation and output switching performance where conventional electronics fail. Its optically isolated output architecture provides inherent immunity to electromagnetic interference (EMI) and ground-loop noise, making it the preferred choice for engineers specifying control hardware in electrically noisy environments such as variable-frequency drive (VFD) cabinets, arc-welding cells, and high-voltage switchgear rooms.

In continuous production environments — petrochemical refineries, steel rolling mills, power generation facilities, and municipal water treatment stations — unplanned downtime caused by I/O module failure can result in significant financial loss and safety risk. The Panadac610-O16A addresses this directly: its solid-state optical output channels eliminate mechanical wear, extend service life, and reduce the probability of field failure compared to relay-based alternatives. Each channel is individually protected, ensuring that a single-point fault does not cascade into a full-rack shutdown. This design philosophy aligns with the safety and availability requirements of IEC 61511 functional safety frameworks commonly applied in oil and gas and chemical processing facilities.

Within a PANADAC 610 control system architecture, the Panadac610-O16A integrates seamlessly alongside companion modules including the Panadac610-I16A 16-channel optical input module, the Panadac610-A04A analog output module, and the Panadac610-CPU central processing unit. Together, these modules form a cohesive I/O subsystem capable of handling both discrete and analog field signals across a unified backplane. The module’s rack-mount form factor is compatible with standard PANADAC 610 base units, allowing direct hot-swap replacement in the field without requiring system reconfiguration — a critical advantage during emergency maintenance windows in 24/7 production facilities.

For installations involving long cable runs between the control cabinet and field devices — common in large-footprint facilities such as open-pit mines, offshore platforms, and power substations — the optical isolation of the Panadac610-O16A provides a measurable advantage over non-isolated I/O. It eliminates common-mode voltage problems that can corrupt signal integrity and damage sensitive PLC circuitry. When paired with industrial-grade shielded cables and properly grounded control cabinets, this module supports reliable operation even in environments with significant electromagnetic radiation from high-power motors, transformers, and radio-frequency equipment.

The module is also well-suited for safety-instrumented system (SIS) support roles, where it can serve as the final output element driving solenoid valves, motor contactors, alarm annunciators, and emergency shutdown (ESD) relays. In these applications, the deterministic switching behavior and low output leakage current of the optical output channels are essential for meeting the response-time requirements of safety logic solvers. Integrators working with Panasonic FP Series PLCs, Yokogawa CENTUM VP DCS systems, or Honeywell Safety Manager platforms frequently specify the Panadac610-O16A as a trusted discrete output interface in hybrid control architectures.

From a procurement standpoint, TOPNLMS maintains verified stock of the Panadac610-O16A, sourced through authorized industrial distribution channels. Every unit undergoes pre-shipment functional testing — including output channel continuity verification, isolation resistance measurement, and backplane connector inspection — before dispatch. Units are packaged in anti-static, shock-absorbing materials suitable for international air and sea freight. Standard lead time for in-stock units is 3–7 business days for international destinations, with expedited options available for urgent plant shutdowns or emergency spares replenishment.

Rugged Specifications Table

Comprehensive Protection Solutions

A robust industrial control system is never built around a single module — it is the result of carefully matched components working in concert. The Panadac610-O16A is most effective when deployed as part of a complete PANADAC 610 I/O architecture. On the input side, the Panadac610-I16A 16-channel optical input module mirrors the output module’s isolation philosophy, ensuring that field sensor signals — from proximity switches, pressure transmitters, and flow meters — enter the PLC backplane free of noise contamination. For analog process variables such as 4–20 mA loop signals from temperature or pressure sensors, the Panadac610-A08A analog input module provides the necessary signal conditioning and conversion.

Power integrity is equally critical in harsh environments. Industrial-grade DIN-rail power supplies — such as those in the Panasonic SUNX range or equivalent 24 VDC regulated supplies rated for wide input voltage ranges — ensure that the PANADAC 610 rack maintains stable logic power even during grid fluctuations common in heavy industrial facilities. Upstream, a properly specified isolation transformer and surge protection device (SPD) at the control cabinet entry point protect the entire I/O system from transient overvoltages caused by lightning strikes or motor switching events.

For facilities requiring communication between the PANADAC 610 system and supervisory SCADA platforms or distributed control systems, Panasonic communication modules supporting RS-232C, RS-485, or Ethernet protocols provide the necessary gateway functionality. In hybrid architectures where the PANADAC 610 coexists with Siemens S7-300 or Mitsubishi MELSEC Q Series PLCs, protocol converters and Modbus RTU/TCP gateway modules enable seamless data exchange across the plant network. Terminal blocks and Phoenix Contact or Weidmüller DIN-rail terminal modules complete the wiring infrastructure, providing reliable field-to-cabinet connections that withstand vibration and thermal cycling.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations — wellhead control panels, pipeline SCADA stations, and compressor skid automation — the Panadac610-O16A serves as the discrete output interface for solenoid valve drivers, motor starter contactors, and alarm horn circuits. Its optical isolation is particularly valued in hazardous area installations where intrinsically safe barriers or Zener barriers are used to limit energy in Zone 1 and Zone 2 classified areas, and where any ground-loop current could compromise the integrity of the safety barrier.

In power generation and electrical substation environments, the module drives relay coils, circuit breaker trip circuits, and annunciator panels. The high EMI immunity of the optical output design is essential in these settings, where high-voltage bus bars, current transformers, and power cables generate intense electromagnetic fields that can induce false signals in poorly isolated I/O hardware. Utilities and independent power producers (IPPs) operating gas turbines, hydroelectric generators, or combined-cycle plants rely on optically isolated output modules to maintain the integrity of their protection and control logic.

In mining and mineral processing — underground coal mines, open-pit copper operations, and gold processing plants — the Panadac610-O16A controls conveyor belt starters, crusher motor contactors, and ventilation fan drives. The module’s tolerance for wide temperature swings and high ambient dust levels (when installed in properly rated IP54 or IP65 control enclosures) makes it a dependable choice for remote surface installations where maintenance access is infrequent and spare parts logistics are challenging. Keeping a verified spare unit on-site — sourced from TOPNLMS with pre-shipment testing documentation — is standard practice for mine electrical teams managing critical conveyor and hoisting systems.

In water and wastewater treatment facilities, the module interfaces with pump motor starters, valve actuators, UV disinfection systems, and chemical dosing pumps. The high-humidity tolerance of the PANADAC 610 platform, combined with the optical isolation of the Panadac610-O16A, makes it well-suited for pump station environments where condensation and chemical vapors are persistent concerns. Municipal utilities and private water operators managing treatment plants under continuous 24/7 operation schedules depend on the long-term reliability of proven PLC hardware rather than experimenting with unvalidated alternatives.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange for replacement or repair at no additional cost. Customers are required to provide the original invoice and a brief description of the failure mode. Return shipping to our Xiamen facility is coordinated by our technical support team, and replacement units are dispatched within 5 business days of receiving the defective item.

Q2: How is each Panadac610-O16A tested before shipment?
Every unit undergoes a multi-point pre-shipment inspection protocol: (1) visual inspection of the PCB, connector pins, and housing for physical damage; (2) output channel continuity and switching function test across all 16 channels; (3) optical isolation resistance measurement to verify photocoupler integrity; and (4) backplane connector engagement test. Units that do not pass all checkpoints are quarantined and not dispatched. A test report is available upon request for customers with quality management system (QMS) documentation requirements.

Q3: Is the Panadac610-O16A compatible with all PANADAC 610 base units and CPU versions?
The Panadac610-O16A is designed for the PANADAC 610 series rack architecture and is compatible with all standard PANADAC 610 base units and CPU modules. It occupies one I/O slot and requires no additional configuration beyond standard I/O address assignment in the PANADAC 610 programming environment. For customers integrating this module into an existing system with a specific CPU firmware version, our technical support team can advise on any known compatibility considerations prior to purchase.

Q4: Can TOPNLMS support long-term and repeat procurement for plant maintenance programs?
Yes. TOPNLMS specializes in the supply of industrial automation spare parts for ongoing plant maintenance, scheduled turnaround, and emergency breakdown scenarios. We maintain buffer stock of high-demand PANADAC 610 series modules and can support blanket purchase orders, consignment stock arrangements, and priority dispatch agreements for customers with critical infrastructure responsibilities. Contact our sales team at [email protected] or +86 18359293191 to discuss a tailored supply agreement.
