Panasonic FP2-DA4 Original Industrial Spare FP2 Compatible

Product Overview

Panasonic FP2-DA4 Original Industrial Spare FP2 Compatible: System Stability & Maintenance Value

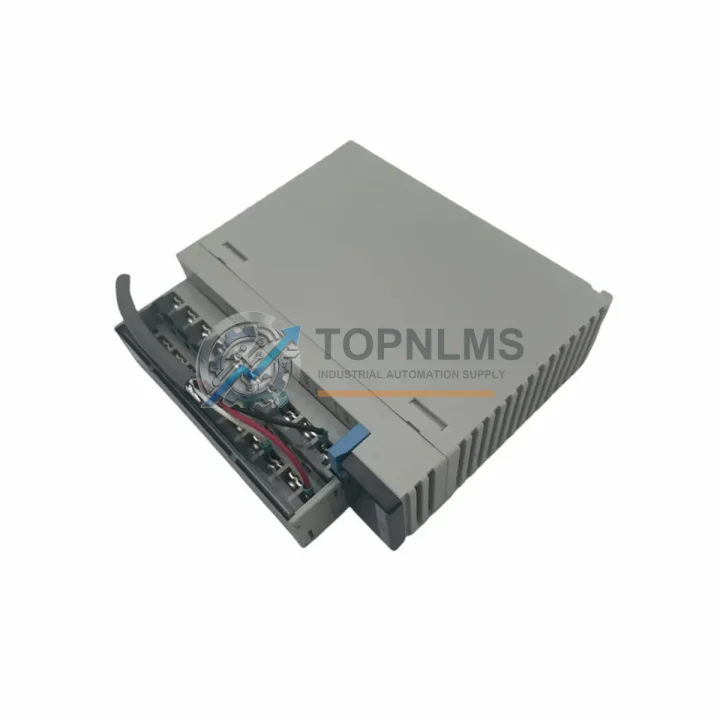

The Panasonic FP2-DA4 is an original 4-channel analog output (D/A) module designed for the FP2 Series programmable logic controller platform. In industrial environments where process continuity is non-negotiable, maintaining a verified spare of the FP2-DA4 is a cornerstone of any responsible preventive maintenance program. Whether your facility operates continuous batch processes, precision motion control, or multi-loop PID regulation, the FP2-DA4 delivers the signal fidelity and system compatibility required to keep production lines running without interruption.

As an original Panasonic component, the FP2-DA4 integrates seamlessly into existing FP2 backplane configurations without firmware re-flashing, parameter migration, or I/O address remapping. This plug-and-replace compatibility dramatically reduces mean time to repair (MTTR) during unplanned shutdowns, making it the preferred choice for maintenance engineers managing aging FP2-based control systems across automotive, food processing, chemical, and discrete manufacturing sectors.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance approach for FP2-based control systems extends well beyond replacing a single analog output module. When scheduling a planned shutdown or responding to an unplanned fault on the FP2-DA4, experienced maintenance teams use the opportunity to audit the entire control cabinet for wear, drift, and latent failure risk.

Begin with the FP2 CPU module (such as the AFP2211 or AFP2431) — verify firmware version, battery backup status, and program integrity. A degraded CPU battery can corrupt retained data and cause erratic analog output behavior that is often misdiagnosed as a DA module fault. Alongside the CPU, inspect the FP2 power supply unit (AFP2802 series) for output voltage stability; an aging PSU delivering marginal 5 VDC rail voltage will cause intermittent conversion errors across all analog modules.

Next, examine the FP2-AD4 or FP2-AD8 analog input modules installed in the same rack. In closed-loop control applications, the analog input and output modules work in tandem — a calibration drift on the input side can mask or amplify apparent faults on the DA output side. Replacing or recalibrating the FP2-DA4 without verifying the AD module’s accuracy leaves the control loop vulnerable to setpoint deviation.

Check all FP2 digital I/O modules (FP2-X32, FP2-Y32 series) for contact wear, especially in high-cycle relay output applications. While inspecting the backplane, verify the condition of the FP2 expansion cable and backplane connectors — oxidized or loose backplane contacts are a leading cause of intermittent module communication faults that are difficult to reproduce under normal operating conditions.

For systems using MEWNET or MEWTOCOL communication modules (such as the FP2-C1 or FP2-C2), confirm that network termination resistors are intact and that communication cycle times remain within specification. A communication module nearing end-of-life can introduce latency that disrupts time-critical analog output updates. Similarly, inspect any FP2 positioning modules (FP2-PP2 or FP2-PP4) for encoder feedback integrity if the DA4 is used in coordinated motion control.

Finally, review the condition of terminal blocks and field wiring connected to the DA4’s analog output terminals. Loose or corroded screw terminals on the output connector are a common source of signal noise and output drift. Replacing the terminal block connector and re-torquing all field wiring connections during a DA4 module swap is a low-cost step that significantly improves long-term signal reliability.

Strategic Replacement Solutions

The FP2-DA4 has been in service across global manufacturing facilities for over two decades. Many plants operating legacy FP2 systems face the challenge of sourcing original spare modules as Panasonic transitions its PLC portfolio toward the FP0R and FPX platforms. Stocking a verified original FP2-DA4 eliminates the risk of production stoppage caused by module unavailability — a risk that grows significantly as the installed base ages and field spares are consumed.

Unlike third-party compatible modules that may require parameter adjustments or custom wiring adapters, the original FP2-DA4 installs directly into any FP2 or FP2SH backplane slot designated for special function modules. No changes to the PLC program’s I/O allocation table are required, and the module’s internal calibration data is factory-set to Panasonic’s original specifications. This ensures that process setpoints, PID tuning parameters, and HMI display scaling remain accurate immediately after replacement — a critical advantage in regulated industries where re-validation after hardware changes is time-consuming and costly.

For facilities managing a mixed fleet of FP2 and FP2SH controllers, maintaining a single FP2-DA4 spare covers both platforms, further simplifying inventory management. Procurement teams are advised to source at minimum one cold spare per production line and one additional unit for the central maintenance storeroom, ensuring sub-4-hour replacement capability for any DA4 fault scenario.
