OMRON E5ZE-8AQHD1TCB Replacement/Upgrade Solution for E5ZE

Product Overview

OMRON E5ZE-8AQHD1TCB Replacement/Upgrade Solution for E5ZE Series: Seamless Transition from Legacy Temperature Control Systems

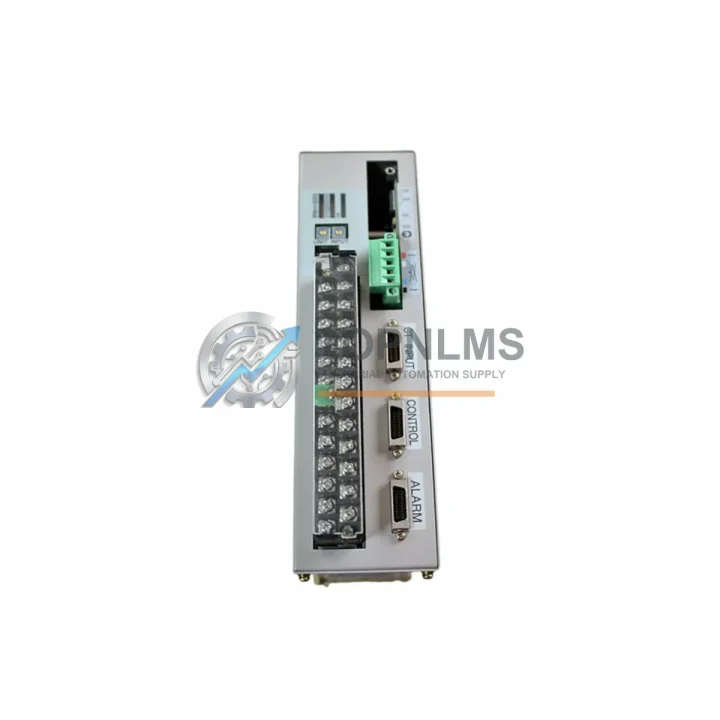

The OMRON E5ZE-8AQHD1TCB is an 8-channel advanced temperature controller from OMRON’s E5ZE Series, designed for precision multi-loop thermal management in demanding industrial environments. As legacy control systems age and original equipment reaches end-of-life, facilities running older OMRON temperature controllers — including earlier E5ZE variants, E5EX, E5CK, and E5AK series units — face increasing pressure to modernize without disrupting production. This product page is specifically structured to support engineers and procurement teams planning a controlled migration from discontinued or aging temperature control hardware to the E5ZE-8AQHD1TCB platform.

Whether your facility operates a multi-zone injection molding line, a continuous heat treatment furnace, a food processing pasteurization system, or a semiconductor packaging oven, the E5ZE-8AQHD1TCB consolidates up to 8 independent PID control loops into a single DIN-rail-mountable unit. This consolidation directly reduces panel space requirements, simplifies wiring harness complexity, and lowers the total number of discrete components that must be maintained or replaced during a retrofit project.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the E5ZE-8AQHD1TCB rarely involves replacing the temperature controller in isolation. In practice, the retrofit scope typically extends to several interconnected components within the same control cabinet or system architecture.

On the communication side, facilities upgrading from RS-232C-based legacy controllers will need to introduce an RS-232C to RS-485 converter or update their OMRON PLC’s communication module. Controllers such as the OMRON CJ1W-SCU41-V1 serial communication unit or the OMRON CS1W-SCB41-V1 provide native RS-485 port support and are commonly deployed alongside the E5ZE-8AQHD1TCB in CJ-series and CS-series PLC racks. If the host PLC is an older C200H or CQM1 platform, a gateway module such as the OMRON NT-AL001 link adapter may be required to bridge legacy backplane communication to the modern RS-485 network.

On the I/O side, thermocouple and RTD field wiring from the existing installation can typically be reused without modification, provided terminal block assignments are remapped according to the E5ZE-8AQHD1TCB wiring diagram. Where terminal pitch differences exist between the old and new units, OMRON XW2B series terminal blocks with pre-wired connector cables simplify the transition and reduce field wiring errors. For applications requiring signal isolation between sensor inputs and the controller — particularly in high-noise environments near variable frequency drives or servo amplifiers — inline signal isolators or OMRON G3PB solid-state relay units are recommended as part of the upgrade bill of materials.

Power supply compatibility is generally straightforward, as the E5ZE-8AQHD1TCB accepts the same 100–240 VAC universal input range used by most legacy OMRON temperature controllers. However, if the control cabinet’s OMRON S8VS or S8VK series power supply is also approaching end-of-life, co-replacement during the same maintenance window is strongly advised to avoid a secondary unplanned outage.

For programming and parameter migration, the OMRON CX-Thermo configuration software supports the E5ZE series and allows engineers to document, back up, and restore PID parameters, setpoints, alarm thresholds, and communication settings. This eliminates the need for manual re-entry of tuning parameters and significantly reduces commissioning time during the cutover window. If the existing system uses an OMRON NS-series or NB-series HMI for operator interface, screen tag remapping will be required to reflect the new Modbus register map of the E5ZE-8AQHD1TCB, but the physical HMI hardware itself does not need replacement.

Retrofit Guidance FAQ

Q: Can I reuse existing thermocouple wiring from my E5CK installation?
A: Yes. The E5ZE-8AQHD1TCB accepts the same thermocouple types (K, J, T, E) supported by the E5CK. Field sensor wiring can be reused; only terminal block assignments need to be verified against the new wiring diagram.

Q: Does the E5ZE-8AQHD1TCB support Modbus RTU for SCADA integration?
A: Yes. The unit supports both OMRON CompoWay/F and Modbus RTU over RS-485, making it compatible with most modern SCADA, DCS, and PLC platforms without additional protocol converters.

Q: How much panel space does the E5ZE-8AQHD1TCB save compared to 8 individual single-channel controllers?
A: Replacing 8 individual 48×48 mm or 96×96 mm single-channel units with one E5ZE-8AQHD1TCB typically recovers 60–75% of the panel real estate previously occupied, freeing space for additional I/O modules or improved cable management.

Q: Can PID parameters from legacy OMRON controllers be transferred directly?
A: PID gain values (P, I, D) can be manually re-entered or migrated via CX-Thermo software. Auto-tuning (AT) is also available on the E5ZE-8AQHD1TCB to re-optimize parameters for the actual thermal load after installation.

Q: What is the minimum downtime required for cutover?
A: With pre-staged parameter files, pre-tested wiring harnesses, and a prepared commissioning checklist, most single-cabinet cutovers can be completed within a 4–8 hour planned maintenance window.

Warranty Assurance

Every OMRON E5ZE-8AQHD1TCB unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on testing, communication port validation, and input/output channel confirmation. Units that fail pre-shipment inspection are quarantined and not dispatched.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement unit dispatch or full refund processing within agreed lead times. Our after-sales response team is reachable via email and phone to support fault diagnosis, parameter recovery, and replacement logistics. We maintain bonded stock of high-demand OMRON E5ZE series units to minimize replacement lead times for critical production environments.

For procurement teams requiring documentation, we can provide product datasheets, test reports, and packing lists upon request prior to order confirmation. Bulk order pricing and consignment stock arrangements are available for MRO and system integrator accounts.
