OMRON TPM1A-40CDR-A Replacement Solution for CPM1A

Product Overview

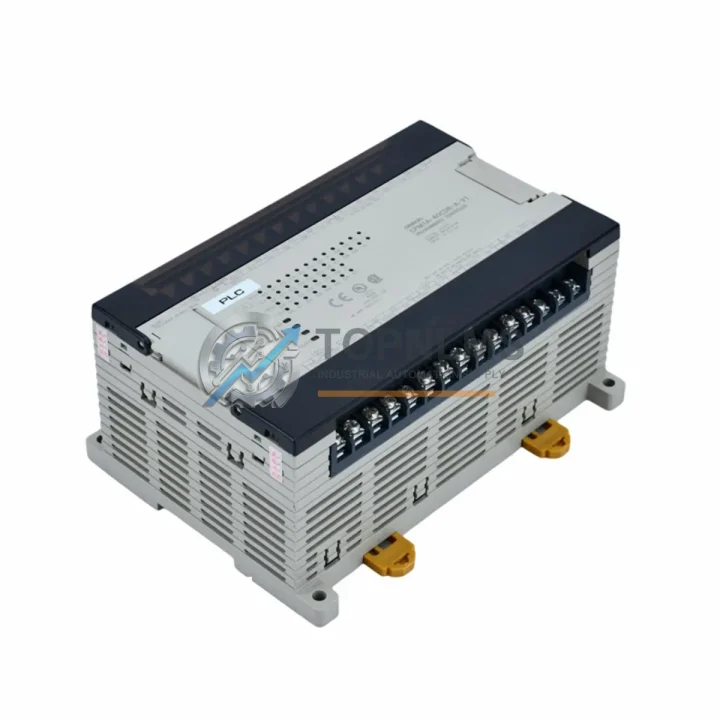

OMRON TPM1A-40CDR-A Replacement Solution for CPM1A: Smooth Transition, Zero Compromise

When a legacy OMRON CPM1A-series controller reaches end-of-life or fails unexpectedly on the production floor, every hour of unplanned downtime translates directly into lost output and escalating maintenance costs. The OMRON TPM1A-40CDR-A is a 40-point compact PLC from the proven CPM1A platform — 24 DC inputs and 16 relay outputs — engineered for reliable discrete control in packaging lines, conveyor systems, injection-moulding machines, and general factory automation. TOPNLMS maintains verified stock of this unit specifically to support emergency replacement and planned upgrade projects, enabling engineers to restore or modernise their control architecture with confidence.

The CPM1A series was designed around a modular philosophy that remains highly compatible with a broad ecosystem of OMRON peripheral hardware. Whether you are replacing a failed unit on a running line or executing a scheduled retrofit from an older C200H or CQM1 platform, the TPM1A-40CDR-A offers a well-understood migration path. Its relay output configuration is directly interchangeable with earlier CPM1A-40CDR-A units, preserving existing field wiring, terminal layouts, and I/O addressing without requiring panel redesign or extensive re-programming.

For facilities managing mixed OMRON fleets, the TPM1A-40CDR-A integrates naturally alongside the CPM1A-20EDR1 expansion I/O unit, allowing engineers to extend the I/O count without changing the base controller. Communication is handled via the built-in RS-232C peripheral port, which supports OMRON’s Host Link (SYSMAC WAY) protocol — the same protocol used by the CPM2A and CQM1H families, ensuring that existing SCADA connections, HMI panels, and PC-based monitoring software require no protocol conversion. Where Ethernet connectivity is needed for integration with a higher-level MES or DCS layer, the CJ1W-ETN21 Ethernet unit or a dedicated serial-to-Ethernet gateway can bridge the gap without altering the PLC program logic.

Panel builders and system integrators frequently pair the TPM1A-40CDR-A with the OMRON S8VS-06024 or equivalent 24 VDC DIN-rail power supply to maintain a compact, standardised power architecture within the control cabinet. The relay output stage is compatible with standard 24 VDC and 240 VAC load circuits, making it straightforward to drive contactors, solenoid valves, indicator lamps, and motor starters already wired to the original CPM1A installation. No rewiring of the output commons is required when replacing a like-for-like unit.

Programming and commissioning are performed using OMRON’s CX-Programmer software (version 9.x and above), which supports the CPM1A instruction set natively. Existing ladder programs developed for the CPM1A-40CDR-A can be uploaded directly to the TPM1A-40CDR-A via the CS1W-CN226 or XW2Z-200S-CV programming cable connected to the peripheral port. This eliminates the need for program conversion or re-verification of logic, significantly reducing commissioning time during an emergency swap-out. For sites migrating from the older C200HS or SRM1 controllers, CX-Programmer’s conversion wizard provides a structured path to adapt legacy programs to the CPM1A instruction set.

In applications where the CPM1A must interface with variable-frequency drives, servo amplifiers, or remote I/O stations over RS-485, the CPM1A-CIF11 RS-422/485 adapter provides the necessary physical layer conversion. This is particularly relevant in textile machinery, pump control panels, and water treatment installations where multiple drives — such as OMRON’s own 3G3MX2 series inverters — are networked on a single Modbus RTU segment supervised by the CPM1A controller. The relay output capacity of the TPM1A-40CDR-A is well-suited to controlling the run/stop and fault-reset signals of these drives without additional interposing relays in most standard applications.

Every unit supplied by TOPNLMS undergoes a pre-shipment functional inspection covering power-on self-test, I/O point verification, and communication port integrity. Units are shipped in anti-static packaging with original or equivalent protective inserts to prevent transit damage. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units, with express courier options available for urgent requirements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CPM1A migration rarely involves the base controller alone. Engineers replacing the TPM1A-40CDR-A on a live production line typically also evaluate the condition of adjacent components to avoid repeat call-outs. The CPM1A-20EDR1 expansion I/O unit is the most common companion module, adding 12 inputs and 8 relay outputs to the base unit and sharing the same DIN-rail footprint. Where analogue process variables — temperature, pressure, or flow — are involved, the CPM1A-MAD01 analogue I/O unit provides two analogue inputs and one analogue output, integrating directly into the CPM1A backplane without additional wiring infrastructure.

For communication-intensive retrofits, the CPM1A-CIF11 RS-422/485 adapter enables multi-drop networking of the CPM1A with OMRON 3G3MX2 inverters or third-party Modbus RTU devices. HMI replacement is often handled concurrently: the OMRON NB5Q-TW01B or NS5-SQ11B-V2 touch panels connect directly to the CPM1A peripheral port using the NT Link protocol, requiring only a cable swap and screen address remapping rather than a full HMI re-engineering exercise. Power supply integrity is verified at the same time — the S8VS-06024 24 VDC / 2.5 A DIN-rail PSU is the standard pairing for CPM1A panels and is stocked alongside the controller for combined shipment. Programming cables such as the CS1W-CN226 are also available to support on-site commissioning teams who need to upload or verify programs immediately upon installation.

Retrofit Guidance FAQ

Q1: Can I reuse my existing field wiring when replacing a CPM1A-40CDR-A with the TPM1A-40CDR-A?
Yes. The terminal layout, I/O addressing, and output commons of the TPM1A-40CDR-A are identical to the standard CPM1A-40CDR-A. No rewiring of input or output circuits is required for a direct unit swap. Verify terminal torque specifications (0.5 N·m recommended) after reconnection.

Q2: Is my existing CX-Programmer ladder program compatible without modification?
In the vast majority of cases, yes. Programs written for the CPM1A-40CDR-A upload directly to the TPM1A-40CDR-A via CX-Programmer 9.x using the CS1W-CN226 or XW2Z-200S-CV cable. No instruction-set conversion is needed. If your program uses SYSWIN format, convert to CX-Programmer format first using the built-in import tool.

Q3: Will my existing HMI or SCADA connection continue to work after the swap?
Yes, provided your HMI or SCADA system communicates via Host Link (SYSMAC WAY) or NT Link protocol over RS-232C. The TPM1A-40CDR-A supports both protocols on its peripheral port at the same baud rates (9600 / 19200 bps). No protocol gateway or driver update is required for standard OMRON HMI panels.

Q4: What if my control cabinet has limited space — will the TPM1A-40CDR-A fit?
The TPM1A-40CDR-A shares the same physical form factor as the CPM1A-40CDR-A (approximately 250 × 90 × 85 mm) and mounts on a standard 35 mm DIN rail. No panel modification or bracket adaptation is required. Ensure a minimum 50 mm clearance above and below the unit for ventilation as specified in the CPM1A installation manual.

Warranty Assurance

TOPNLMS provides a 12-month warranty on every TPM1A-40CDR-A unit from the date of shipment. Each unit is subjected to a pre-shipment functional test covering power-on diagnostics, I/O point cycling, and communication port verification before dispatch. In the event of a confirmed hardware defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a credit note — whichever resolution minimises disruption to your operation.

Units are shipped in anti-static, shock-resistant packaging via tracked international courier. Standard dispatch lead time is 1–3 business days for confirmed in-stock units. Express next-day dispatch is available for emergency orders placed before 14:00 CST. All shipments include a packing list and, where requested, a certificate of conformity for incoming inspection purposes.

For long-term supply agreements, blanket orders, or multi-unit project requirements, TOPNLMS offers reserved stock allocation and priority fulfilment to ensure continuity of supply throughout your maintenance or retrofit programme. Our technical team is available to advise on compatibility, installation, and commissioning questions prior to and after purchase.
