OMRON CPM2AE-60CDR-A Replacement Solution for CPM2A

Product Overview

OMRON CPM2AE-60CDR-A Replacement Solution for CPM2A: Smooth Transition & Legacy System Compatibility

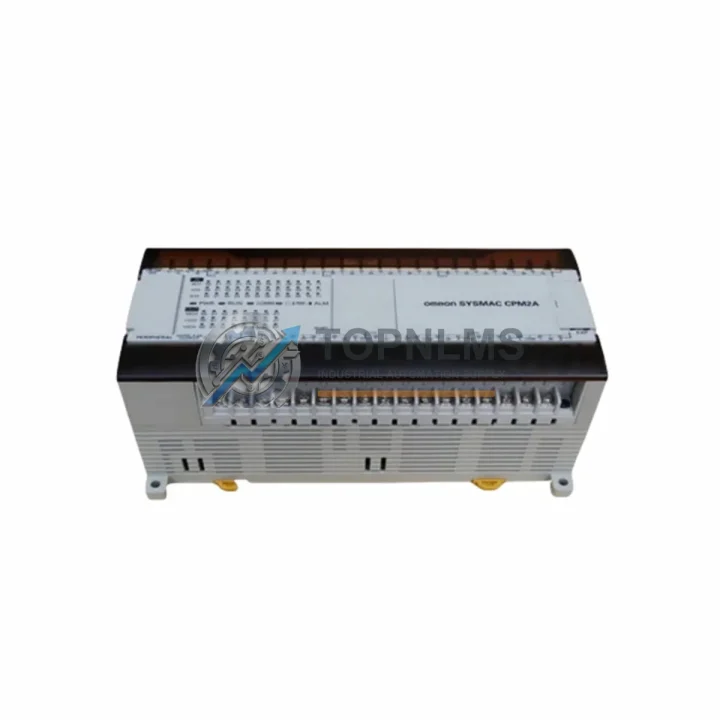

The OMRON CPM2AE-60CDR-A is a compact, high-performance Programmable Logic Controller from the CPM2A Series, featuring 60 I/O points, relay output configuration, and AC power supply. As industrial facilities worldwide face the challenge of maintaining aging control infrastructure, the CPM2AE-60CDR-A has become a critical replacement and upgrade target for engineers managing legacy OMRON-based automation systems. Whether you are replacing a failed unit, upgrading from an earlier CPM1A or CQM1 platform, or consolidating spare parts inventory ahead of a planned shutdown, this unit delivers a proven migration path with minimal disruption to your existing wiring, programming, and cabinet layout.

The CPM2AE-60CDR-A supports OMRON’s established peripheral port and RS-232C communication interface, making it directly compatible with existing programming cables such as the CS1W-CN226 and CIF01, and fully programmable via CX-Programmer without requiring a new software license or PLC architecture redesign. For facilities currently running CPM2A-60CDR-A or CPM2A-60CDT-D units, the CPM2AE-60CDR-A offers a functionally equivalent drop-in replacement with identical I/O mapping, instruction set compatibility, and DIN-rail mounting footprint — dramatically reducing re-commissioning time on the production floor.

Engineers migrating from older CQM1-CPU21-E or CQM1-CPU41-EV1 controllers will find that the CPM2AE-60CDR-A supports the same ladder logic structure and timer/counter instruction set, enabling direct program migration with minor adaptation. The relay output configuration (12 relay outputs) is particularly suited for applications involving motor starters, solenoid valves, and contactor control circuits where solid-state switching is not required, preserving compatibility with existing field wiring without rewiring the control cabinet.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the CPM2AE-60CDR-A typically involves more than a direct controller swap. In most retrofit projects, engineers also source complementary components to ensure the upgraded system operates reliably from day one. The CPM2A-MAD01 analog I/O expansion unit is commonly added when the legacy system included analog signal conditioning, providing 2 analog inputs and 1 analog output without requiring a separate signal converter. For applications requiring additional digital I/O beyond the base 60 points, the CPM2A-20EDR expansion unit integrates directly onto the CPM2AE-60CDR-A via the expansion connector, preserving the original cabinet layout.

Communication upgrades are another frequent requirement. The CPM2A-CIF01 RS-232C adapter and CPM2A-CIF11 RS-422/485 adapter allow the CPM2AE-60CDR-A to interface with SCADA systems, HMI panels, and host computers using standard OMRON Host Link or Modbus RTU protocols — a critical consideration when the legacy system used a dedicated communication module that is no longer available. For HMI connectivity, the NB5Q-TW01B or NT31C-ST141-EV2 operator panels are commonly paired with CPM2A Series controllers, offering a straightforward upgrade from older NT-series displays without requiring protocol changes.

Power supply integrity is essential in any retrofit. The S8VS-06024 or S8JX-G06024CD DIN-rail power supply units are frequently specified alongside the CPM2AE-60CDR-A to replace aging power modules that may no longer deliver stable 24VDC to the I/O field devices. For installations where signal isolation is required between the PLC output and field actuators, DIN-rail mounted signal isolators such as the OMRON G3PA or third-party equivalents are used to protect relay contacts and extend service life. Programming and commissioning require the CS1W-CN226 USB-to-peripheral cable or the CIF01 RS-232C programming cable, both of which are compatible with CX-Programmer running on Windows 10/11 environments.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing a CPM2A-60CDR-A with the CPM2AE-60CDR-A?
A: Yes. The CPM2AE-60CDR-A uses the same terminal block layout and I/O assignment as the CPM2A-60CDR-A. Input terminals (IN0.00–IN2.11) and output terminals (OUT1.00–OUT1.11) are pin-compatible, allowing direct reconnection of existing field cables without rewiring. Always verify terminal torque specifications (0.5 N·m) and confirm 24VDC sensor supply wiring before powering up.

Q: Can I upload my existing CPM2A program directly to the CPM2AE-60CDR-A?
A: Yes. Programs developed for the CPM2A Series are fully compatible with the CPM2AE-60CDR-A. Use CX-Programmer to upload the existing .cxp project file, verify I/O allocation, and perform an online comparison before switching to RUN mode. No instruction set conversion is required.

Q: What communication protocols does the CPM2AE-60CDR-A support?
A: The unit supports OMRON Host Link (C-mode commands) via the peripheral port and RS-232C port, enabling integration with SCADA, HMI, and host PC systems. With the CPM2A-CIF11 adapter, RS-422/485 multi-drop communication is supported for up to 32 nodes. Modbus RTU is not natively supported but can be implemented via a protocol conversion gateway.

Q: Will the CPM2AE-60CDR-A fit in my existing control cabinet?
A: The CPM2AE-60CDR-A has the same DIN-rail mounting dimensions as the CPM2A-60CDR-A (W: 250mm, H: 90mm, D: 80mm). No cabinet modification is required for a direct replacement. If migrating from a CQM1 rack-mount system, additional DIN-rail space and cable management will be needed.

Q: How do I handle the transition from a CQM1-CPU41-EV1 to the CPM2AE-60CDR-A?
A: This migration requires program adaptation. CQM1 programs use a different memory map and some instructions (e.g., IORF, XFER) behave differently in the CPM2A instruction set. We recommend a staged migration: export the CQM1 program, adapt I/O allocation tables, simulate in CX-Programmer offline, and validate on a test bench before live deployment.

Warranty Assurance

Every CPM2AE-60CDR-A unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional verification test including power-on self-test, I/O point continuity check, communication port validation, and program load/run verification. Units that do not pass all test criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours on business days. Warranty coverage includes manufacturing defects, functional failures under normal operating conditions, and communication port faults. It does not cover damage caused by incorrect wiring, overvoltage, or unauthorized modification.

For urgent replacement requirements — including unplanned production line stoppages — TOPNLMS maintains ready stock of CPM2AE-60CDR-A and related CPM2A Series components at our Xiamen warehouse, with same-day dispatch available for orders confirmed before 15:00 CST. International shipping via DHL Express, FedEx, and UPS is available to most destinations within 3–7 business days.

For procurement inquiries, technical compatibility questions, or bulk order pricing, contact our industrial automation team directly.
