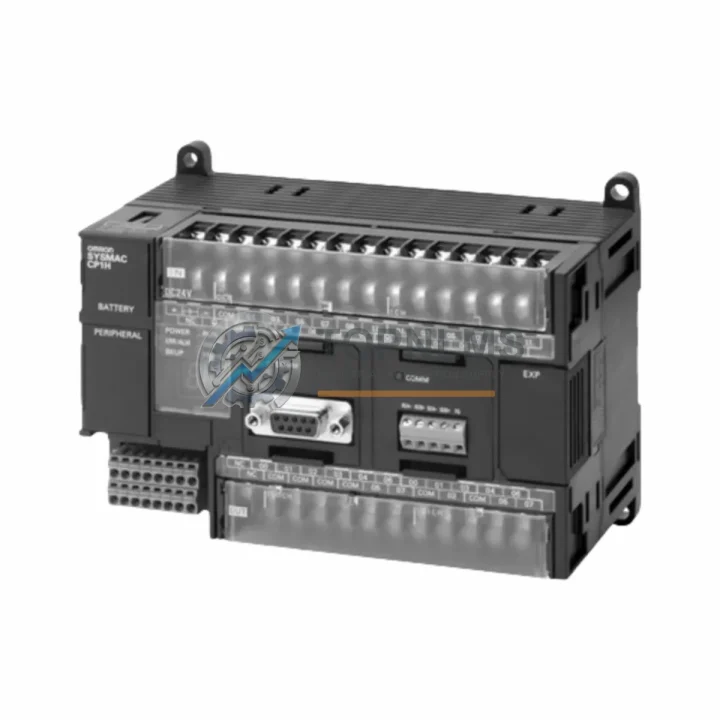

OMRON CP1H-X40DR-A Replacement for CP1H Series PLC

Product Overview

OMRON CP1H-X40DR-A Replacement for CP1H Series PLC: Seamless Transition to Proven Control

When a legacy OMRON CP1H-X40DR-A fails on the production floor, every minute of unplanned downtime translates directly into lost output and escalating maintenance costs. The CP1H-X40DR-A is a 40-point compact programmable logic controller featuring relay output architecture, designed for mid-range automation tasks across manufacturing, packaging, material handling, and process control. TOPNLMS maintains verified stock of this unit, fully tested and ready to ship, enabling engineers and procurement teams to execute a direct, drop-in replacement with minimal disruption to existing wiring, programming, and cabinet layouts.

The CP1H-X40DR-A belongs to OMRON’s CP1H Series — a platform widely deployed across Asian and global industrial facilities throughout the 2000s and 2010s. As original equipment manufacturers phase out support for earlier CP1 and CPM2A controllers, the CP1H-X40DR-A has become the preferred upgrade target for sites migrating from CPM2A-60CDR-A, CP1L-M40DR-A, and similar relay-output compact PLCs. Its USB programming port, compatible with CX-Programmer software, means existing ladder logic programs can be transferred, adapted, and re-commissioned without rewriting control logic from scratch — a critical advantage when minimizing commissioning time on live production lines.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CP1H-X40DR-A retrofit rarely involves the controller alone. In most field scenarios, the replacement project extends to the surrounding system architecture. Engineers migrating from a CPM2A-60CDR-A or an older C200H rack-based system will typically need to evaluate the CP1W-CIF01 RS-232C option board to maintain serial communication with existing HMI panels or SCADA hosts that rely on Host Link protocol. Where the original system used a CP1W-EXT01 expansion connector, the CP1H-X40DR-A supports the same CP1W expansion I/O units, allowing existing CP1W-40EDR relay expansion modules to be reused without rewiring the field terminal blocks.

For sites that previously relied on a dedicated OMRON S82K or S82G series switch-mode power supply to feed the PLC rack, the CP1H-X40DR-A’s built-in AC power input eliminates the need for a separate 24 VDC rail in many configurations, simplifying the control cabinet layout. However, where 24 VDC sensor power is still required, an S82K-05024 or equivalent compact DIN-rail power supply remains a standard companion component in the upgraded panel.

Communication continuity is often the most complex aspect of a PLC migration. Sites running OMRON NT-series HMI panels — such as the NT31C or NT631C — can maintain NT Link communication with the CP1H-X40DR-A using the existing RS-232C wiring, provided the NT Link settings are correctly configured in CX-Programmer. For facilities transitioning to Ethernet-based SCADA, the CP1W-EIP21 EtherNet/IP option board can be added to the CP1H-X40DR-A, enabling integration with modern supervisory systems without replacing the controller platform.

Where the legacy system included analog I/O — common in temperature control, pressure monitoring, or flow regulation loops — the CP1W-AD041 analog input unit and CP1W-DA021 analog output unit are fully compatible expansion modules for the CP1H-X40DR-A, preserving existing 4–20 mA or 0–10 V signal wiring from field instruments. This compatibility is particularly valuable in chemical processing, water treatment, and HVAC automation environments where analog loop integrity is critical to process safety.

Retrofit Guidance FAQ

Q: Can I reuse my existing CX-Programmer ladder logic program on the CP1H-X40DR-A?
A: Yes. Programs developed for CPM2A, CP1L, and earlier CP1H units can be opened in CX-Programmer and transferred to the CP1H-X40DR-A with minimal modification. Instruction set compatibility is high across the CP1 platform. Engineers should verify memory area assignments and special function block usage, but in most standard relay-logic applications, the program transfers directly without rewriting.

Q: Will the CP1H-X40DR-A fit in the same DIN rail space as my old controller?
A: The CP1H-X40DR-A has a compact form factor consistent with the CP1H Series standard housing. In most control cabinets previously housing a CPM2A or CP1L unit, the physical footprint is compatible. Verify the cabinet depth and DIN rail clearance before installation, particularly if the RS-232C option board or expansion units are being added.

Q: What communication protocols does the CP1H-X40DR-A support for connecting to existing SCADA or HMI systems?
A: The CP1H-X40DR-A natively supports Host Link (FINS/RS-232C), NT Link, and Toolbus via its built-in serial port. With the CP1W-CIF01 option board, RS-232C connectivity is extended. For Ethernet-based protocols including EtherNet/IP and FINS/TCP, the CP1W-EIP21 option board is required. Modbus RTU communication is also supported via the serial port with appropriate configuration in CX-Programmer.

Q: How do I handle the wiring differences between relay output and transistor output when replacing a mixed-output legacy PLC?
A: The CP1H-X40DR-A uses relay output for all 16 output points, which is electrically compatible with both AC and DC load circuits. If the legacy system used transistor (NPN/PNP) outputs for high-speed pulse applications such as servo drives or stepper motor controllers, the relay output architecture of the CP1H-X40DR-A is not suitable for those specific channels. In such cases, consider pairing the CP1H-X40DR-A with a CP1W-40EDT transistor expansion unit to handle high-speed output requirements while the main unit manages standard relay-switched loads.

Warranty Assurance

Every OMRON CP1H-X40DR-A unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional power-on test and visual inspection to verify connector integrity, indicator LED operation, and communication port functionality. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement unit dispatch or repair coordination with a target response time of 1–3 business days. Our technical team is available to assist with compatibility verification, CX-Programmer configuration questions, and commissioning support via email and phone. For urgent production-line replacements, expedited shipping options are available to minimize downtime.

TOPNLMS maintains ongoing stock of CP1H Series controllers and associated expansion modules, ensuring long-term supply continuity for facilities that depend on this platform. Procurement teams can request formal quotations, certificates of conformity, and packing lists for customs and quality documentation purposes.
