OMRON 3G8F5-CLK01 Replacement for CS/CJ Series

Product Overview

OMRON 3G8F5-CLK01 Replacement for CS/CJ Series: Seamless Transition to Modern Controller Link Architecture

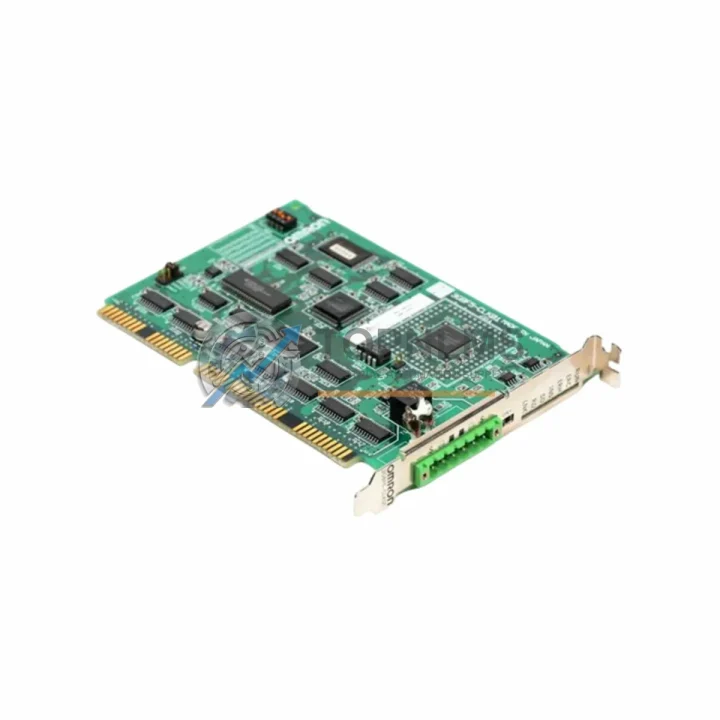

The OMRON 3G8F5-CLK01 Controller Link Support Board is a critical communication interface module designed for the OMRON CS Series and CJ Series PLC platforms. As industrial facilities worldwide face the challenge of maintaining aging automation infrastructure, the 3G8F5-CLK01 has become one of the most sought-after replacement and upgrade components for engineers managing legacy Controller Link networks. Whether your existing board has failed, your OEM support contract has lapsed, or you are proactively building a spare-parts inventory to reduce unplanned downtime, TOPNLMS supplies tested, verified 3G8F5-CLK01 units ready for immediate dispatch from our Xiamen warehouse.

Controller Link is OMRON’s proprietary peer-to-peer industrial network protocol, enabling high-speed data sharing between CS1H, CS1G, CJ1H, CJ1G, CJ1M, and CJ2M CPU units without requiring a dedicated master node. The 3G8F5-CLK01 installs into the inner bus slot of a CS-series backplane or the CJ-series CPU rack, providing a 2 Mbps token-ring network interface that supports up to 62 nodes per segment. When this board fails or becomes unavailable, the entire Controller Link segment — including all data links, remote I/O polling, and inter-PLC messaging — is interrupted, making rapid replacement essential for continuous production.

For sites migrating from older OMRON C200H or CV-series controllers to the CS/CJ platform, the 3G8F5-CLK01 is frequently the first communication module specified during the retrofit design phase. Engineers replacing a C200H-CLK21 or a CVM1-CLK21 will find that the 3G8F5-CLK01 preserves the same Controller Link protocol layer, meaning existing network topology, node addresses, and data link tables can be migrated with minimal reprogramming in CX-Programmer or Sysmac Studio. The physical wiring — typically shielded twisted-pair terminated at each node — remains unchanged, eliminating the need for cable replacement across the control cabinet or field junction boxes.

Installation of the 3G8F5-CLK01 follows the standard CS/CJ inner bus procedure: power down the rack, seat the board firmly into the designated communication slot, secure the retaining screw, and restore power. The CPU unit automatically recognizes the board during its I/O table refresh cycle. No additional driver installation is required on the PLC side. For systems running CX-Programmer, the unit appears as a standard Controller Link unit in the I/O table, and existing data link parameters stored in the CPU’s non-volatile memory are immediately applied. This plug-and-play compatibility dramatically reduces commissioning time during emergency replacements, often allowing production to resume within a single maintenance window.

When planning a broader system upgrade, the 3G8F5-CLK01 is commonly deployed alongside complementary modules. Power supply units such as the CS1W-PA204 or CJ1W-PA205R provide the regulated 5 VDC backplane power required for stable communication board operation. In multi-rack configurations, the CS1W-BI092 or CS1W-BI102 expansion backplanes extend the I/O capacity while the 3G8F5-CLK01 maintains network connectivity across all racks. For sites that also operate OMRON DeviceNet or EtherNet/IP segments, the CS1W-DRM21 DeviceNet master unit and the CJ1W-EIP21 EtherNet/IP unit can coexist in the same rack, allowing a phased migration from Controller Link to Ethernet-based architectures without a full system cutover. Analog I/O modules such as the CS1W-AD081-V1 and CS1W-DA08V continue to report process values through the CPU’s data link tables managed by the 3G8F5-CLK01, ensuring instrumentation continuity during the transition period.

For facilities operating OMRON NS-series HMI panels — such as the NS12-TS01B-V2 or NS10-TV00B-V2 — connected via Controller Link, the 3G8F5-CLK01 replacement restores the HMI data polling without any screen project modification, provided the node address and data link table assignments are preserved. This is a significant advantage over protocol migration projects, where HMI tag databases must be rebuilt from scratch.

TOPNLMS maintains stock of the 3G8F5-CLK01 sourced from authorized distribution channels and verified through functional testing prior to shipment. Each unit undergoes power-on verification and communication loopback testing before packaging. Units are shipped in anti-static packaging with foam cushioning to prevent transit damage. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express courier options available for urgent requirements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Controller Link migration using the 3G8F5-CLK01 typically involves coordinating several interdependent components. The CS1W-PA204 or CJ1W-PA205R power supply module must be verified to provide adequate current budget for the additional communication board. In expanded rack configurations, the CS1W-BI092 backplane accommodates additional I/O modules — such as the CS1W-ID211 digital input unit or CS1W-OD211 digital output unit — that continue to report status through the Controller Link data link managed by the 3G8F5-CLK01. For sites transitioning to hybrid network architectures, the CJ1W-EIP21 EtherNet/IP unit can be added to the same CJ-series rack, enabling SCADA or MES connectivity over standard Ethernet while the 3G8F5-CLK01 continues to handle peer-to-peer PLC data sharing on the Controller Link segment. Programming cable CS1W-CIF31 or USB-CIF02 is required for initial parameter configuration and data link table upload via CX-Programmer. Signal isolators and terminal block modules such as the XW2B series simplify field wiring reconnection during the physical swap, reducing the risk of wiring errors in dense control cabinet environments.

Retrofit Guidance FAQ

Q: Can I reuse my existing Controller Link wiring when replacing a C200H-CLK21 with the 3G8F5-CLK01?
A: Yes. The Controller Link physical layer uses the same shielded twisted-pair cable and termination resistors regardless of the CPU platform. Your existing field wiring, junction boxes, and termination resistors can be retained without modification.

Q: Do I need to rewrite my PLC program after installing the 3G8F5-CLK01?
A: In most cases, no. If you are replacing a failed 3G8F5-CLK01 with an identical unit, the CPU restores all data link parameters from non-volatile memory automatically. If migrating from a C200H or CV platform, the data link table must be re-entered in CX-Programmer, but the ladder logic referencing data link words (DM/CIO areas) typically requires only minor address remapping.

Q: Is the 3G8F5-CLK01 compatible with both CS1 and CJ1 series racks?
A: The 3G8F5-CLK01 is designed for the CS-series inner bus slot. CJ-series systems use the CJ1W-CLK21-V1 variant. Please confirm your rack type before ordering. TOPNLMS can advise on the correct part number for your specific configuration.

Q: What is the maximum cable length for a Controller Link segment using the 3G8F5-CLK01?
A: Maximum segment length is 1,000 m at 2 Mbps using OMRON-specified shielded twisted-pair cable. Longer distances require repeater units.

Q: How do I verify the board is functioning correctly after installation?
A: After power-on, the RUN LED on the 3G8F5-CLK01 should illuminate solid green. The ERR LED should remain off. Use CX-Programmer’s Network Configurator to scan the Controller Link segment and confirm all nodes are visible and data links are active.

Warranty Assurance

Every 3G8F5-CLK01 unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes power-on functional testing and communication verification to confirm correct operation. If a unit exhibits any defect in materials or workmanship within the warranty period, TOPNLMS will provide a replacement unit or full refund at no additional cost to the buyer. Our after-sales response team is reachable within 24 hours on business days. We support warranty claims with photographic evidence review and, where required, arrange return logistics at our expense for confirmed defective units. For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices upon request. Bulk orders and long-term supply agreements are available for MRO and spare-parts programs.
