Olympus OLY-UTV1X Replacement Upgrade for BX/IX Series

Product Overview

Olympus OLY-UTV1X Replacement Upgrade for BX/IX Series: Seamless Transition from Legacy Imaging Assemblies

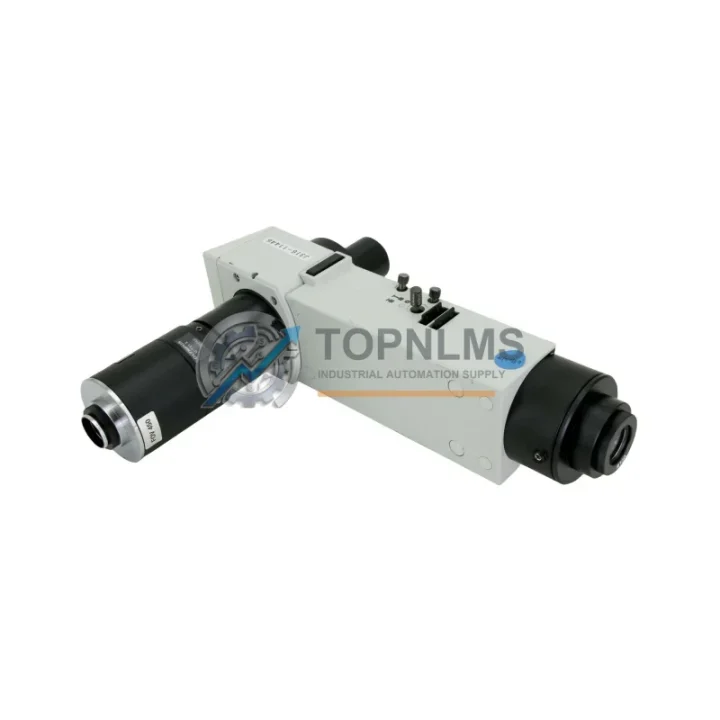

Upgrading or replacing a legacy Olympus microscope imaging assembly is a precision-critical process. The OLY-UTV1X-UCMAD2-URLA-E62706200-E11706200-XENUS800-1953-UTLU-UCLW is a multi-component imaging kit designed for the Olympus BX and IX series microscope platforms — among the most widely deployed research and clinical microscopy systems globally. When original assemblies reach end-of-life, are discontinued, or suffer mechanical/optical failure, sourcing a verified replacement that maintains full optical alignment, camera interface compatibility, and system integration is essential to minimizing laboratory downtime.

This replacement assembly covers the complete imaging chain: the UTV1X trinocular tube adapter, the UCMAD2 camera mount adapter, the URLA relay lens assembly, and associated interface components including the E62706200 and E11706200 optical couplers. The kit is further compatible with the XENUS800 illumination controller interface and integrates with UTLU and UCLW optical path selectors used in multi-port BX/IX configurations. Each component is tested for dimensional conformance and optical transmission before shipment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete imaging system migration on the Olympus BX or IX platform rarely involves a single component. In practice, facilities upgrading from older BX51 or IX71 configurations to current BX53 or IX83 architectures often need to address the full optical and electronic chain simultaneously. The UTV1X trinocular tube is typically paired with a U-CMAD3 or UCMAD2 C-mount camera adapter to interface with modern CMOS or CCD scientific cameras — replacing older analog camera heads that are no longer supported by current acquisition software.

The URLA relay lens within this assembly works in conjunction with the U-TV0.5XC-3 or U-TV1X optical coupler family to maintain correct image circle coverage for full-frame and APS-C format sensors. Facilities migrating from film-based or early CCD documentation systems will find that the relay optics in this kit are optimized for modern 1″ and 4/3″ format sensors used in cameras such as the Olympus DP80 or third-party equivalents.

The XENUS800 illumination controller interface within this assembly ensures backward compatibility with existing transmitted light and reflected light (epi-fluorescence) configurations on BX61 and IX81 motorized stands. When combined with the U-LH100HG mercury arc lamp housing or LED-based alternatives such as the U-HGLGPS, the assembly maintains consistent Köhler illumination alignment without requiring recalibration of the condenser or objective nosepiece.

For facilities running multi-position imaging workflows, the UTLU and UCLW optical path selectors allow simultaneous routing to eyepiece observation and camera ports — a critical feature when migrating from single-output legacy configurations to dual-port documentation setups. This is particularly relevant when integrating with motorized stages such as the Olympus U-SFW10-2 or third-party Prior and Märzhäuser stages used in high-content screening applications.

Acquisition software compatibility is another key migration consideration. This assembly’s camera interface is compatible with Olympus cellSens and Stream software platforms, as well as third-party solutions including Micro-Manager and NIS-Elements, provided the connected camera supports the appropriate SDK. No hardware-level software reconfiguration is required at the microscope body level when replacing the imaging assembly with this kit.

Retrofit Guidance FAQ

Q: Will this assembly fit my existing BX51 or IX71 without modification?
A: Yes. The UTV1X trinocular port and UCMAD2 C-mount interface are dimensionally identical to the original OEM configuration. No chassis drilling, shimming, or optical realignment is required for a direct swap.

Q: Do I need to recalibrate the optical path after installation?
A: In most cases, no. The URLA relay lens and E62706200/E11706200 couplers are pre-aligned to the BX/IX optical axis. A basic Köhler illumination check is recommended after installation, but full optical bench recalibration is not required.

Q: Is the XENUS800 illumination controller interface plug-compatible?
A: Yes. The interface connector and control protocol are unchanged. No firmware update or rewiring is needed at the illumination controller.

Q: Can I connect a USB3 or GigE camera directly to the UCMAD2 C-mount?
A: Yes. The UCMAD2 accepts any standard C-mount camera. Sensor format compatibility depends on the relay lens magnification — the URLA is optimized for sensors up to 1″ diagonal.

Q: What if my system uses a different optical path selector (not UTLU/UCLW)?
A: Contact us with your full system configuration. We can advise on adapter rings or alternative relay configurations for non-standard port selectors.

Q: How long does shipping take?
A: In-stock units ship within 1–3 business days from Xiamen, China. International express delivery (DHL/FedEx) typically arrives within 5–10 business days depending on destination.

Warranty Assurance

Every OLY-UTV1X-UCMAD2-URLA imaging assembly shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects, optical transmission failures, and mechanical interface non-conformance. Prior to shipment, each unit undergoes dimensional inspection, optical path verification, and interface fit-check against BX/IX reference fixtures.

In the event of a warranty claim, TOPNLMS provides direct replacement support with a target response time of 1 business day. Replacement units are dispatched from stock where available, minimizing laboratory downtime. Our after-sales team is reachable via email and phone for technical pre-sales consultation, installation guidance, and post-installation support throughout the warranty period.

For procurement teams, we can provide product datasheets, test reports, and packing lists upon request. Volume pricing and blanket purchase order arrangements are available for institutional buyers and OEM integrators.
