NORGREN VAC030-S4-S4 Ruggedized Pneumatic Valve Drive Module

Product Overview

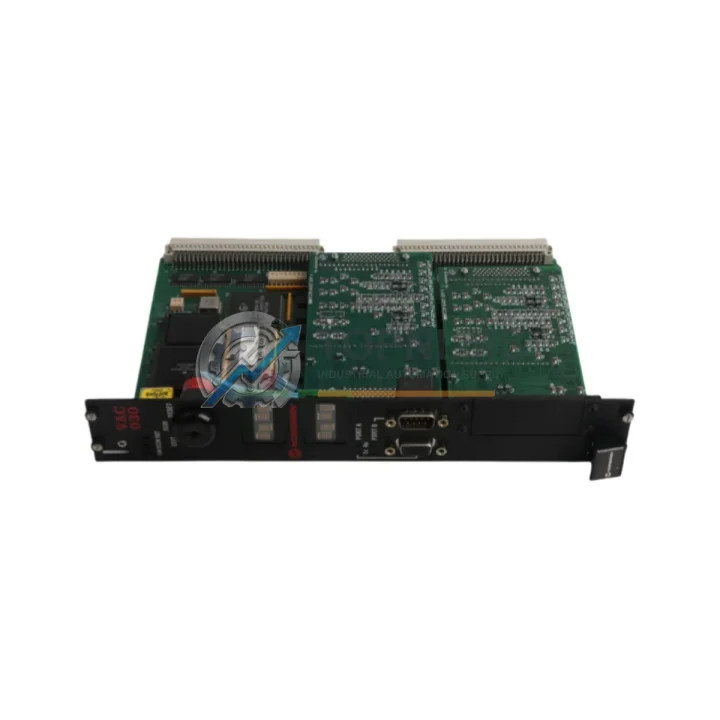

NORGREN VAC030-S4-S4 Ruggedized Pneumatic Valve Drive Module: Industrial Resilience for Harsh Environments

The NORGREN VAC030-S4-S4 is a high-reliability pneumatic valve drive module engineered for continuous operation in the most demanding industrial environments. Designed as part of NORGREN’s proven VAC030 series, this PCB control card delivers stable, interference-resistant valve actuation across a wide range of process automation applications — from oil and gas pipelines to heavy-duty manufacturing lines where downtime is never an option.

Built to withstand elevated temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI), the VAC030-S4-S4 maintains consistent signal integrity and switching accuracy even when installed inside densely packed control cabinets alongside variable frequency drives (VFDs), industrial power supplies, and high-current relay banks. Its ruggedized PCB construction and conformal coating make it a dependable choice for facilities that cannot afford intermittent valve failures or unplanned shutdowns.

Rugged Specifications Table

Comprehensive Protection Solutions

The VAC030-S4-S4 is rarely deployed in isolation. In a typical process automation architecture, it operates as the final control element driven by a Siemens S7-300 or S7-1500 PLC digital output module, receiving discrete 24 VDC switching signals to actuate pneumatic valves with millisecond-level precision. When integrated with a Siemens ET 200SP distributed I/O station or a Rockwell Automation 1756-OB16I ControlLogix output module, the VAC030-S4-S4 enables decentralized valve control across large plant footprints without sacrificing response time or signal fidelity.

In control cabinet installations, the module is typically mounted alongside NORGREN Series 01 or Series 02 solenoid valve manifolds, sharing a common 24 VDC bus supplied by a PHOENIX CONTACT QUINT-PS or PULS DIMENSION industrial DIN-rail power supply. Surge protection is provided upstream by DEHN or Weidmüller surge protection terminal blocks, ensuring the drive board is shielded from transient overvoltages caused by nearby motor starts or lightning-induced surges on field cabling.

For safety-critical applications, the VAC030-S4-S4 is often paired with a Pilz PNOZ or Siemens SIRIUS 3SK safety relay module that monitors valve feedback signals and triggers a safe-state shutdown if a fault is detected. Communication between the PLC and the valve island is frequently handled via PROFIBUS DP or PROFINET IO fieldbus interfaces, with the VAC030 series supporting standard fieldbus node addressing for seamless integration into existing DCS or SCADA architectures. Terminal connections are made through Phoenix Contact or Weidmüller spring-clamp terminal blocks, which maintain reliable contact even under continuous vibration — a critical advantage in compressor rooms and rotating machinery environments.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the NORGREN VAC030-S4-S4 controls pneumatic actuators on wellhead choke valves, pipeline isolation valves, and emergency shutdown (ESD) valve assemblies. Its ability to maintain reliable switching under high-vibration conditions — common near reciprocating compressors and pump skids — makes it a preferred replacement card when original equipment manufacturer (OEM) boards fail in the field.

In coal and hard-rock mining operations, the module is deployed in conveyor belt control systems, ventilation damper actuators, and hydraulic roof support valve banks. The conformal-coated PCB resists coal dust ingress and moisture condensation that would otherwise cause premature failure of standard industrial electronics.

In thermal and hydroelectric power generation plants, the VAC030-S4-S4 drives pneumatic actuators on steam bypass valves, cooling water control valves, and turbine lube oil system valves. Its compatibility with both legacy PROFIBUS-based DCS systems and modern PROFINET-enabled PLC platforms means it can be retrofitted into aging control systems without requiring a full architecture upgrade.

In municipal and industrial water treatment facilities, the module controls aeration valve manifolds, chemical dosing valve banks, and filter backwash actuators — applications where continuous 24/7 operation and resistance to high-humidity environments are non-negotiable requirements. Metallurgical plants and steel mills rely on the VAC030-S4-S4 for blast furnace gas valve control and rolling mill hydraulic system interfaces, where ambient temperatures and electromagnetic noise levels far exceed those found in standard manufacturing environments.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact us at [email protected] with your order number and a description of the fault. We will arrange a replacement or repair at no additional cost, including return shipping coordination.

Q2: How is each VAC030-S4-S4 unit tested before shipment?
Every unit undergoes a functional verification test prior to dispatch. This includes solenoid drive output continuity checks, insulation resistance testing, and a powered switching cycle test to confirm both S4 output channels operate within specification. A test report is available upon request for quality-critical procurement processes.

Q3: Is the VAC030-S4-S4 compatible with my existing NORGREN valve island or third-party PLC system?
The VAC030-S4-S4 is designed for direct compatibility with NORGREN VAC030 series valve islands. It accepts standard 24 VDC discrete output signals, making it compatible with virtually all major PLC and DCS platforms including Siemens SIMATIC, Rockwell Automation Allen-Bradley, Schneider Electric Modicon, and ABB AC500 series controllers. If you have a specific compatibility question, our technical team can advise before purchase.

Q4: Can you guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. TOPNLMS maintains dedicated stock of VAC030-S4-S4 and related NORGREN VAC030 series components to support long-term maintenance contracts and planned shutdown spare parts programs. We can provide volume pricing, reserved stock agreements, and scheduled delivery programs for facilities that require guaranteed availability of critical spare parts. Contact us to discuss your specific supply continuity requirements.
