NORGREN 2636000-0246 Original Industrial Spare Excelon Series 26 Compatible

Product Overview

NORGREN 2636000-0246 Original Industrial Spare – Excelon Series 26 Compatible: System Stability & Maintenance Value

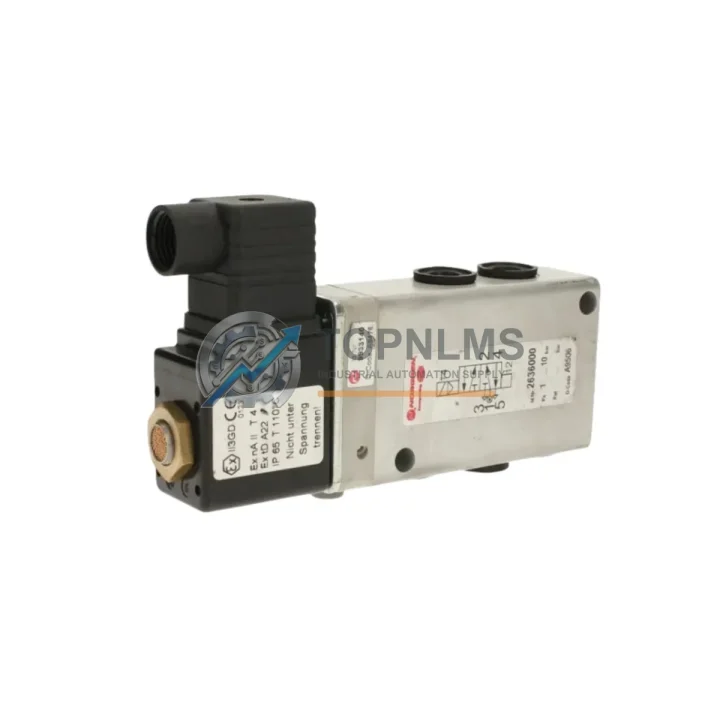

The NORGREN 2636000-0246 is an original 5/2-way single solenoid pneumatic directional control valve from the Excelon Series 26 platform — a proven workhorse in industrial automation environments worldwide. Designed for demanding factory floors, process plants, and automated assembly lines, this valve delivers reliable directional control of pneumatic actuators, cylinders, and downstream pneumatic circuits. For maintenance engineers and procurement teams managing aging control systems, securing a genuine NORGREN 2636000-0246 as a certified spare is one of the most cost-effective decisions in a preventive maintenance program.

Unplanned downtime caused by a failed directional control valve can cascade rapidly across a production line. A single solenoid valve failure may halt an entire pneumatic circuit, triggering actuator lock-up, conveyor stoppage, or robotic arm faults. With the NORGREN 2636000-0246 stocked as a ready replacement, maintenance teams can execute a swap within minutes rather than waiting days for emergency procurement — dramatically reducing mean time to repair (MTTR) and protecting production throughput.

The Excelon Series 26 platform is widely deployed across automotive assembly, food and beverage packaging, pharmaceutical manufacturing, and general industrial automation. Its modular design philosophy means the 2636000-0246 integrates seamlessly into existing manifold assemblies and valve islands without requiring system-level reconfiguration. This plug-and-play compatibility is critical for legacy system life extension, where the goal is to maintain original system architecture while replacing worn or failed components with certified originals.

Critical Technical Specs Table

Preventive Maintenance Strategy

A pneumatic directional control valve like the NORGREN 2636000-0246 does not operate in isolation. It is one node in a broader pneumatic and electrical control circuit, and its reliable operation depends on the health of surrounding components. A structured preventive maintenance (PM) program should treat the 2636000-0246 as part of a system-level inspection, not a standalone component check.

During scheduled shutdowns or annual overhauls, maintenance teams should simultaneously inspect the NORGREN Excelon Series 26 filter-regulator-lubricator (FRL) units — such as the B07-200-A1KG or equivalent — which condition the air supply feeding the valve. Contaminated or unregulated air is the leading cause of premature solenoid valve wear and seal degradation. If the FRL shows moisture ingress or particulate buildup, the downstream valve is already operating under stress.

The solenoid coil assembly on the 2636000-0246 is electrically driven by the PLC output module. During inspection, it is advisable to verify the output signal integrity from the PLC digital output (DO) module — for example, a Siemens S7-300 SM322 or equivalent — using a multimeter or signal tester. A marginal output voltage or intermittent signal can cause the solenoid to chatter, accelerating coil burnout and valve seat wear even when the valve itself is mechanically sound.

Wiring integrity between the PLC output terminal and the solenoid connector should also be checked. DIN 43650 solenoid connectors (Form A, 18mm) are the standard interface for Series 26 valves, and their internal contacts are prone to oxidation in humid or chemically aggressive environments. Replacing the connector during a PM cycle is low-cost insurance against intermittent faults that are notoriously difficult to diagnose under production pressure.

For systems using valve manifolds, the NORGREN Series 26 sub-base manifold and its associated end plates and blanking plugs should be inspected for micro-cracks, seal extrusion, and port contamination. A leaking manifold port will cause the 2636000-0246 to cycle erratically regardless of its own condition. Similarly, the pneumatic tubing and push-in fittings (e.g., NORGREN Speedfit or equivalent 6mm/8mm OD fittings) connecting the valve to actuators should be checked for kinking, UV degradation, and fitting pull-out resistance.

On the actuator side, pneumatic cylinder position sensors — typically reed switches or inductive proximity sensors mounted on the cylinder barrel — provide feedback to the PLC confirming actuator travel completion. If these sensors drift or fail, the PLC may issue repeated valve actuation commands, causing the 2636000-0246 to cycle at abnormal frequency. Inspecting and calibrating these sensors during the same PM window prevents unnecessary valve wear.

For facilities managing multiple NORGREN Series 26 valves across a production line, maintaining a minimum buffer stock of 2–3 units of the 2636000-0246 alongside a set of Series 26 seal/repair kits is standard practice in lean maintenance programs. This approach eliminates the lead-time risk associated with single-unit emergency orders and supports a planned replacement cycle rather than a reactive one. Procurement teams should also consider stocking the NORGREN solenoid coil replacement (24V DC, DIN 43650 Form A) as a separate line item, since coil failures are statistically more frequent than valve body failures in high-cycle applications.

Strategic Replacement Solutions

The NORGREN 2636000-0246 is a direct replacement for worn or end-of-life units within the Excelon Series 26 platform. Because it is an original NORGREN part — not an aftermarket substitute — it maintains full dimensional, electrical, and pneumatic compatibility with existing sub-bases, manifolds, and wiring harnesses. There is no need for adapter plates, re-piping, or PLC parameter changes. The replacement procedure is a straightforward field swap: de-energize the circuit, isolate the air supply, disconnect the solenoid connector, unbolt the valve from the sub-base, install the new unit, and restore the circuit.

For facilities still operating legacy NORGREN Series 26 installations from the 1990s or early 2000s, the 2636000-0246 provides a certified path to extend system life without the capital expenditure of a full pneumatic system redesign. This is particularly valuable in industries where the cost of re-validation or re-certification of a modified production line — such as in pharmaceutical or food processing — far exceeds the cost of maintaining the original architecture with genuine spare parts.

When planning a replacement campaign across multiple valve positions, it is efficient to schedule replacements by circuit rather than by individual valve age. Replacing all Series 26 valves in a single pneumatic circuit during one planned shutdown minimizes the number of future unplanned interventions and allows the maintenance team to reset the PM clock uniformly across the circuit. This strategy also simplifies spare parts inventory management, as a single SKU — the 2636000-0246 — covers all positions within a standardized Series 26 installation.

All units supplied by TOPNLMS are sourced as original NORGREN components, inspected prior to shipment, and covered by a 12-month warranty from the date of dispatch. Orders are processed and shipped within 1–3 business days, with tracking provided. For urgent maintenance requirements, expedited shipping options are available — contact [email protected] or call +86 18359293191 to confirm stock availability and lead time before placing your order.

Support FAQ

Q1: Is the NORGREN 2636000-0246 compatible with my existing Series 26 sub-base and manifold?
Yes. The 2636000-0246 is an original NORGREN Excelon Series 26 valve and is dimensionally and functionally compatible with all standard Series 26 sub-bases, manifolds, and end plates. No adapters or modifications are required for a direct replacement.

Q2: What is the recommended replacement interval for the 2636000-0246 in a high-cycle application?
NORGREN rates Excelon Series 26 valves for up to 50 million cycles under clean, dry, lubricated air conditions. In practice, for applications cycling more than 5 times per minute in industrial environments, a preventive replacement every 3–5 years or at the first sign of response time degradation is recommended. Seal kits should be inspected annually.

Q3: How is the unit tested before shipment, and what does the 12-month warranty cover?
Each unit is inspected for physical integrity and electrical continuity prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by contaminated air supply, incorrect voltage, or mechanical impact. Warranty claims are processed via [email protected] with proof of purchase and a fault description.

Q4: Can I stock multiple units for a planned maintenance program, and are volume pricing options available?
Yes. TOPNLMS supports bulk procurement for maintenance buffer stock programs. Volume pricing is available for orders of 3 units or more. Contact [email protected] with your required quantity and delivery schedule to receive a formal quotation. Lead times for standard stock are 1–3 business days.
