NI PCIE-6321 Ruggedized DAQ Module for Harsh Environments

Product Overview

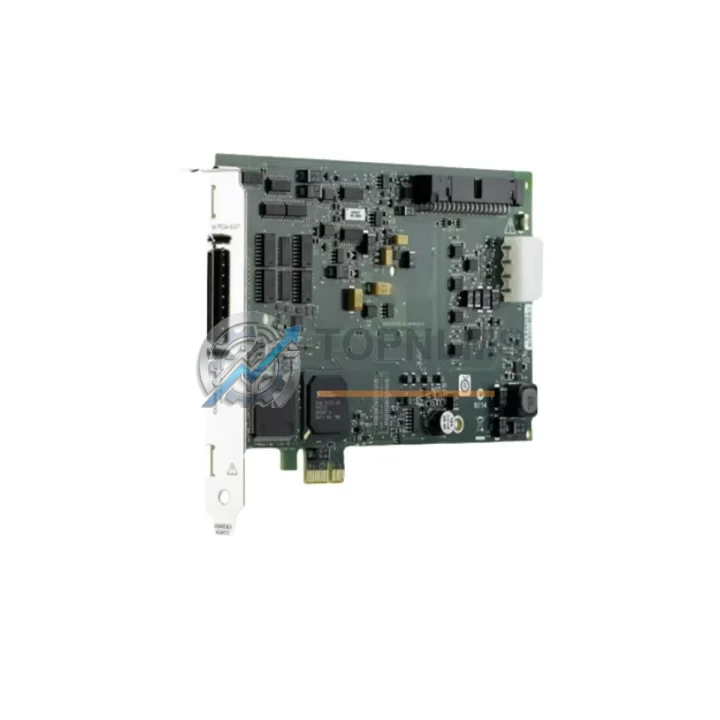

NI PCIE-6321 Ruggedized DAQ Module for Harsh Environments

The National Instruments PCIE-6321 is a high-performance, PCIe-based multifunction data acquisition module engineered for demanding industrial environments where signal integrity, measurement accuracy, and continuous uptime are non-negotiable. As part of NI’s X Series platform, the PCIE-6321 delivers 16-bit resolution at 250 kS/s aggregate sampling rate, making it the preferred choice for engineers and system integrators operating in high-temperature, high-humidity, dust-laden, vibration-prone, or electromagnetically noisy industrial facilities.

Whether deployed in a ruggedized control cabinet on a continuous production line, integrated into a DCS-based process monitoring system, or used as the measurement backbone of a safety-critical test bench, the PCIE-6321 maintains stable, accurate data acquisition under conditions that would compromise lesser hardware. Its robust PCIe interface ensures low-latency, high-throughput communication with the host system, while NI’s proven analog front-end design provides exceptional noise rejection — critical in environments with variable-frequency drives, high-current switching relays, and industrial power supplies operating in close proximity.

Rugged Specifications Table

Comprehensive Protection Solutions

The PCIE-6321 is rarely deployed in isolation. In a fully integrated industrial control architecture, it functions as the precision measurement core within a broader ecosystem of rugged automation hardware. When paired with the NI SCB-68A shielded connector block, field wiring is terminated safely and cleanly, dramatically reducing the risk of ground loops and EMI ingress from nearby motor drives or high-voltage switching equipment. For applications requiring signal conditioning, the NI SCXI-1000 chassis with compatible SCXI signal conditioning modules extends the PCIE-6321’s reach to thermocouple, strain gauge, and high-voltage measurement tasks.

In PLC-integrated environments — for example, systems built around Siemens S7-300 or S7-1500 series CPUs — the PCIE-6321 often serves as a high-speed analog capture card that complements the PLC’s standard I/O modules, handling waveform acquisition tasks that exceed the PLC’s native sampling capabilities. Similarly, in DCS architectures using Emerson DeltaV M-Series I/O modules or Honeywell C300 controllers, the PCIE-6321 is deployed at the edge for high-resolution process variable capture before data is forwarded upstream via OPC-DA or OPC-UA communication layers.

Power integrity is equally critical. Industrial installations typically route the host PC’s power through a Meanwell DIN-rail industrial power supply (such as the SDR-480P-24) to ensure clean, regulated DC power free from the transients common in factory environments. Surge protection devices and Phoenix Contact TRABTECH surge arresters on analog input lines further protect the PCIE-6321’s sensitive front-end circuitry from lightning-induced transients or switching surges. For installations requiring galvanic isolation between field signals and the DAQ card, Weidmüller ACT20P signal conditioners or equivalent isolation amplifiers are recommended upstream of the PCIE-6321’s analog inputs.

In safety-instrumented systems (SIS), the PCIE-6321 is often used alongside Pilz PNOZ safety relays or Rockwell Allen-Bradley GuardLogix safety PLCs to provide continuous monitoring of process variables, with the DAQ card feeding real-time data to the safety logic solver for trip verification and proof-test documentation. Communication to SCADA or historian systems is typically handled via Moxa NPort serial device servers or Advantech EKI Ethernet I/O modules, ensuring that PCIE-6321 measurement data is reliably transmitted across the plant network without packet loss or latency spikes.

Application in Critical Infrastructure

The PCIE-6321 has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream operations, it is used in wellhead monitoring systems to capture pressure transducer and flow meter signals at high sample rates, enabling early detection of abnormal well behavior before it escalates to a safety event. Offshore platform environments — characterized by salt-laden air, persistent vibration from rotating machinery, and aggressive EMI from radar and communication systems — demand exactly the kind of robust, shielded analog front-end that the PCIE-6321 provides.

In coal and metal mining, the card is integrated into conveyor belt monitoring systems and ventilation control panels, where it continuously acquires vibration, temperature, and current signals from belt drive motors and fan assemblies. Early fault signatures — bearing wear, belt misalignment, motor overheating — are captured and analyzed in real time, enabling predictive maintenance strategies that reduce unplanned downtime in continuous production environments.

Power generation and grid substations represent another high-value deployment context. The PCIE-6321 is used in generator test benches and transformer monitoring systems, where its 16-bit resolution and low noise floor allow engineers to detect subtle harmonic distortions and insulation degradation signals that coarser instruments would miss. In water and wastewater treatment plants, the card acquires flow, pH, turbidity, and dissolved oxygen signals from field transmitters, feeding data to SCADA systems that manage dosing pumps, aeration blowers, and UV disinfection units.

In metallurgical and steel production facilities, where ambient temperatures routinely exceed 40 °C and electromagnetic interference from arc furnaces and induction heaters is severe, the PCIE-6321 is housed in air-conditioned, EMI-shielded control cabinets. Its stable calibration across the full operating temperature range ensures that thermocouple and load cell measurements remain accurate throughout extended production campaigns without requiring frequent field recalibration.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All PCIE-6321 units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and any discrepancy between the delivered unit and its published specifications. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Each unit undergoes pre-shipment functional testing using NI-DAQmx diagnostic routines to verify analog input accuracy, digital I/O continuity, and counter/timer operation before dispatch.

Q2: How is each unit tested before shipment?
Every PCIE-6321 is subjected to a structured pre-shipment inspection protocol that includes power-on self-test, analog channel accuracy verification across multiple voltage ranges, digital I/O loopback testing, and PCIe interface enumeration confirmation. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for customers with traceability requirements in regulated industries such as nuclear, pharmaceutical, or aerospace.

Q3: Is the PCIE-6321 compatible with current NI-DAQmx driver versions and modern operating systems?
Yes. The PCIE-6321 is fully supported under NI-DAQmx 19.x through 2024.x and is compatible with Windows 10, Windows 11, Windows Server 2019/2022, and NI Linux Real-Time OS. It is also supported in NI LabVIEW 2018 through 2024, LabWindows/CVI, and via the nidaqmx Python package for modern data science and edge computing workflows. Customers migrating from legacy PCI-6221 or PCI-6251 platforms will find the PCIE-6321 a direct functional upgrade with full NI-DAQmx API compatibility.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains standing inventory of the PCIE-6321 and related X Series DAQ modules to support both planned procurement cycles and emergency spare-part replacement scenarios. For customers operating continuous production lines where unplanned downtime carries significant financial consequences, we recommend establishing a consignment or blanket-order arrangement to guarantee availability. Orders are typically processed and shipped within 1–3 business days, with expedited shipping options available for critical plant situations. Contact our technical sales team to discuss long-term supply agreements tailored to your maintenance and operations schedule.
