National Instruments PCI-6224 Ruggedized DAQ Module for Harsh Environments

Product Overview

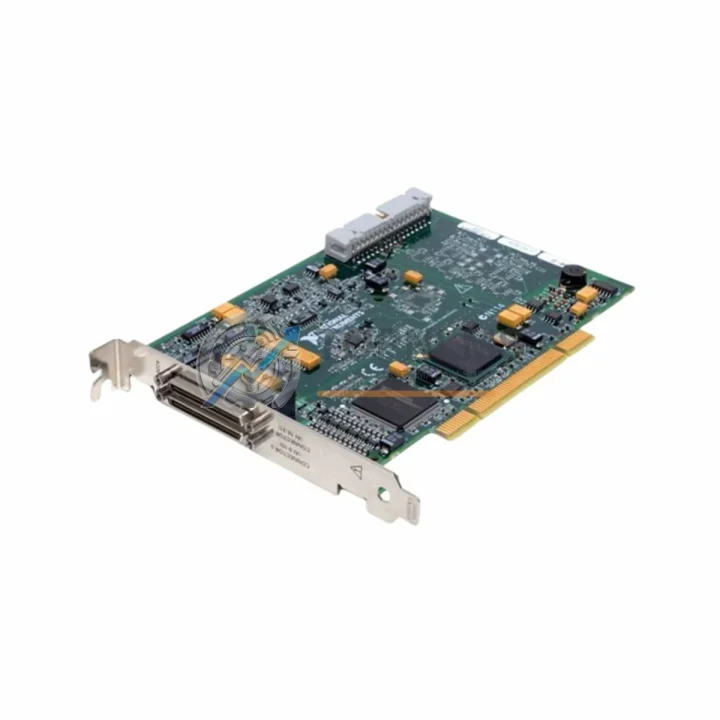

National Instruments PCI-6224 Ruggedized DAQ Module for Harsh Environments

The National Instruments PCI-6224 is a high-performance, 32-channel, 16-bit analog input data acquisition (DAQ) module engineered for demanding industrial environments where signal integrity, electromagnetic compatibility, and continuous uptime are non-negotiable. As part of the NI M Series DAQ platform, the PCI-6224 delivers exceptional measurement accuracy and robust noise immunity, making it the preferred choice for engineers and procurement specialists operating in oil & gas, power generation, mining, water treatment, metallurgy, and heavy manufacturing sectors.

Designed to operate reliably in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI), the PCI-6224 integrates seamlessly into PCI-bus industrial PCs and ruggedized workstations deployed at the control-room level. Its 250 kS/s aggregate sampling rate and 16-bit resolution ensure that even the most subtle process deviations are captured with precision — a critical requirement in safety-instrumented systems (SIS) and process control loops where measurement latency or data corruption can trigger costly shutdowns or safety incidents.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated industrial control architecture, the PCI-6224 rarely operates in isolation. It is most commonly deployed alongside complementary NI M Series components and third-party industrial hardware to form a complete, fault-tolerant measurement and control system. For instance, the NI SCB-68A shielded I/O connector block provides a secure, noise-isolated termination point for all 32 analog input channels, dramatically reducing susceptibility to ground loops and capacitive coupling in high-voltage plant environments.

When the PCI-6224 is used for vibration or acoustic monitoring on rotating machinery — such as compressors, turbines, or conveyor drives — it is typically paired with the NI 9234 dynamic signal acquisition module or the NI SCXI-1531 accelerometer input module to extend channel density and IEPE sensor compatibility. For applications requiring isolated analog outputs to drive proportional control valves or variable-frequency drives (VFDs), the NI PCI-6733 analog output card is a natural companion, sharing the same NI-DAQmx software stack and enabling synchronized multi-board acquisition and generation tasks.

In distributed control architectures where the PCI-6224 feeds data into a supervisory SCADA or DCS layer, communication reliability is paramount. Engineers frequently integrate the card with NI PCI-8432/2 serial interface modules for RS-485 Modbus RTU communication to field instruments, or with NI PCI-8513 CAN interface cards for machine-level diagnostics. On the power conditioning side, industrial-grade UPS systems and Phoenix Contact QUINT-series power supplies are commonly specified to ensure the host PC and DAQ subsystem remain energized during grid transients — a critical safeguard in continuous-process industries where an unplanned restart can mean hours of lost production.

For safety-critical loops, the PCI-6224 measurement chain is often validated against outputs from Siemens S7-300 or S7-400 PLC safety modules, with the DAQ system serving as an independent verification layer for process variables such as temperature, pressure, and flow. Relay output modules and terminal blocks from the NI TB-2715 series provide the galvanic isolation needed to protect both the measurement hardware and the host system from field-side fault currents. Together, these components form a layered protection architecture that meets the redundancy and diagnostics requirements of IEC 61511 functional safety standards.

Application in Critical Infrastructure

The PCI-6224 has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream operations, it is deployed in wellhead monitoring stations and pipeline SCADA nodes to continuously log pressure transducer and thermocouple signals, enabling early detection of leaks, slugging, or compressor surge events. Its robust ESD protection and wide operating temperature range allow it to function reliably in prefabricated control shelters exposed to desert heat or arctic cold.

In electric power generation and transmission, the PCI-6224 is used in generator protection test benches and substation automation laboratories to acquire high-speed voltage and current waveforms for power quality analysis and relay calibration. Its 250 kS/s sampling rate is sufficient to capture harmonic distortion up to the 50th order on a 50 Hz system, providing the data fidelity required by IEC 61000-series power quality standards.

Within mining and mineral processing facilities, the card is integrated into vibration monitoring systems for ball mills, crushers, and hoisting equipment. The ability to simultaneously sample 32 channels at high speed allows maintenance engineers to perform operational deflection shape (ODS) analysis without the need for expensive dedicated vibration analyzers. In water and wastewater treatment plants, the PCI-6224 supports multi-parameter process monitoring — logging pH, dissolved oxygen, turbidity, and flow signals from diverse sensor types within a single acquisition task, simplifying the SCADA integration and reducing panel footprint.

In metallurgical and steel production environments, where electromagnetic noise from arc furnaces and induction heaters is extreme, the PCI-6224’s differential input configuration and programmable gain amplifier (PGA) provide the common-mode rejection ratio (CMRR) needed to extract clean signals from thermocouples and strain gauges mounted directly on furnace structures. This capability makes it an indispensable tool for process engineers tasked with optimizing heat treatment cycles and ensuring product quality consistency.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the PCI-6224?
All PCI-6224 units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification using NI-DAQmx self-test routines and channel-level continuity checks before dispatch. Warranty claims are processed within 5 business days, with replacement or repair options available depending on fault diagnosis.

Q2: How is the PCI-6224 tested before shipment?
Every unit is subjected to a multi-stage outgoing quality control (OQC) process: visual inspection for physical damage, NI-DAQmx driver installation and self-calibration verification, analog input accuracy spot-check across ±10 V and ±1 V ranges, digital I/O functional test, and counter/timer frequency verification. Test records are retained and can be provided upon request for quality-audited procurement processes.

Q3: Is the PCI-6224 compatible with current NI software and operating systems?
Yes. The PCI-6224 is fully supported under NI-DAQmx 9.x and later, including the current NI-DAQmx 2024 release. It is compatible with Windows 10/11 (32-bit and 64-bit), Windows Server 2019/2022, and select Linux distributions via the NI Linux Device Drivers package. It integrates natively with LabVIEW 2015 through 2024, LabWindows/CVI, NI MAX, and third-party environments including MATLAB Data Acquisition Toolbox and Python nidaqmx package.

Q4: Can TOPNLMS support long-term or repeat procurement of the PCI-6224?
Yes. TOPNLMS maintains dedicated inventory reserves for high-demand NI M Series products, including the PCI-6224, to support ongoing MRO (maintenance, repair, and operations) procurement and emergency spare-part replacement. We offer volume pricing for orders of 3 units or more, and can provide lead-time commitments for scheduled maintenance windows. For long-term supply agreements or approved vendor list (AVL) qualification, please contact our technical sales team directly.
