NI PCI-8361 Replacement/Upgrade Solution for MXI-Express

Product Overview

NI PCI-8361 Replacement/Upgrade Solution for MXI-Express: Seamless Transition from Legacy NI Systems

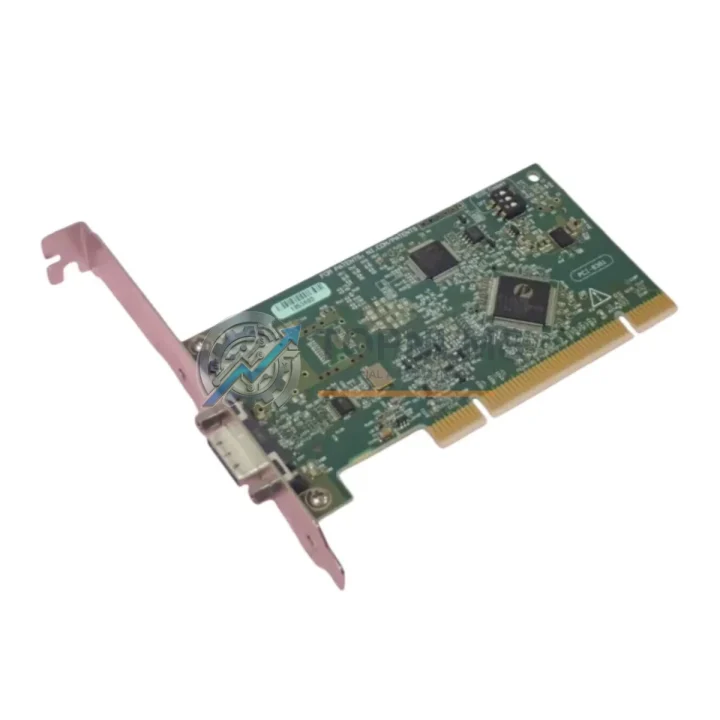

The National Instruments PCI-8361 is a high-performance MXI-Express x1 PCI host interface card designed to bridge a host PC’s PCI bus with NI’s MXI-Express chassis and instrument backplanes. As NI’s product lifecycle evolves and legacy PCI-based systems approach end-of-support, many automation engineers and test system integrators face the challenge of maintaining uptime while planning a controlled migration path. TOPNLMS stocks verified PCI-8361 units to support both immediate replacement needs and phased upgrade strategies — ensuring your existing NI PXI or VXI infrastructure continues to operate without interruption.

Whether you are replacing a failed card in a production test rack, consolidating aging NI PCI-8331 or PCI-8336 host controllers onto a newer platform, or bridging your legacy desktop PC to a PXIe-1082 or PXIe-1085 chassis, the PCI-8361 delivers the MXI-Express x1 bandwidth and low-latency communication your system demands. Its plug-and-play compatibility with NI-VISA and NI-DAQmx driver stacks means minimal software reconfiguration during a hardware swap.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy NI PCI-based control system to a modern MXI-Express architecture rarely involves a single component. In practice, engineers replacing a PCI-8361 host card also need to evaluate the downstream chassis and instrument ecosystem. If your existing rack houses a PXIe-1065 chassis, the PCI-8361 connects directly via the MXI-Express x1 cable without requiring a chassis swap — a significant cost saving compared to a full system rebuild.

For sites still running older NI PXI-8108 or PXI-8110 embedded controllers inside a PXI-1042 chassis, migrating the host interface to a PCI-8361 in an external desktop PC allows the chassis to be repurposed as a pure instrument backplane, extending its useful life. The NI PXI-8231 Ethernet interface module or NI PXI-6509 96-channel digital I/O module can remain in place during this transition, as the MXI-Express link is transparent to instrument-level VISA addressing.

When the upgrade path also involves refreshing signal conditioning, engineers frequently pair the PCI-8361 with NI SCXI-1000 chassis and SCXI-1102 thermocouple input modules for legacy sensor networks, or transition to the more compact NI cDAQ-9178 USB chassis for new I/O expansion. Communication-intensive applications that previously relied on NI PXI-8430 serial interface modules or NI PXI-8461 CAN interface cards continue to operate normally through the MXI-Express link, as the PCI-8361 presents the PXI backplane as a transparent extension of the host PC’s PCI address space.

Power integrity is another consideration during retrofit. The PCI-8361 draws power exclusively from the host PC’s PCI slot — no external power brick or auxiliary connector is required. This simplifies control cabinet layout when the host PC is mounted in a 19-inch rack alongside the PXIe chassis. If your cabinet also houses an NI PS-15 or third-party DIN-rail 24 VDC power supply for field I/O, no changes to the power distribution architecture are needed when swapping the host interface card.

For sites planning a longer-term migration toward PCIe-based host controllers such as the NI PCIe-8361 or NI PCIe-8374, the PCI-8361 serves as a cost-effective interim solution that preserves existing MXI-Express cabling infrastructure and chassis investments while the broader system upgrade is budgeted and scheduled.

Retrofit Guidance FAQ

Q: Can I replace a PCI-8336 (MXI-3) with a PCI-8361 (MXI-Express) without changing the chassis?
A: Only if your chassis has an MXI-Express system slot. MXI-3 and MXI-Express use different cable standards and chassis interface modules. If your chassis is MXI-3 only (e.g., PXI-1042 without an Express upgrade kit), a chassis-side interface module change is also required.

Q: Do I need to reinstall LabVIEW or NI-VISA after swapping the card?
A: No reinstallation is required if your existing NI-VISA version is 5.0 or later. Simply remove the old card, install the PCI-8361, and run NI MAX (Measurement & Automation Explorer) to detect the new hardware. Driver signing is handled automatically on Windows 10/11.

Q: Is the MXI-Express x1 cable from my existing PCI-8360 reusable?
A: Yes. The PCI-8361 uses the same MXI-Express x1 cable connector as the PCI-8360. Existing cables can be reused without modification, reducing retrofit material costs.

Q: Will my existing PXI instrument addresses change after the swap?
A: PXI instrument VISA resource names (e.g., PXI1::INSTR) are assigned by NI MAX based on chassis detection, not the host card serial number. After installing the PCI-8361 and running NI MAX, resource names will be reassigned. Update any hardcoded VISA addresses in your LabVIEW VIs or TestStand sequences accordingly.

Q: What is the maximum cable length supported?
A: The MXI-Express x1 cable supports distances up to 3 meters (standard) or up to 7 meters with NI’s extended-length cable option. This is sufficient for most control cabinet and adjacent-rack installations.

Q: Can the PCI-8361 be used in a PCIe slot with a PCI adapter?
A: The PCI-8361 is a native PCI (not PCIe) card. Passive PCI-to-PCIe mechanical adapters do not provide electrical compatibility. For PCIe host slots, the NI PCIe-8361 is the correct replacement.

Warranty Assurance

Every NI PCI-8361 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each card undergoes functional verification including MXI-Express link negotiation testing and PCI bus enumeration checks. Units that do not pass inspection are not shipped.

If a unit develops a fault within the warranty period, TOPNLMS provides a replacement or full refund — your choice. Our average response time for warranty claims is under 24 hours on business days. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize your system downtime.

For B2B procurement teams, we can provide a test report, certificate of conformance, and packing list with each order. Bulk orders of 5 units or more qualify for pre-shipment batch inspection documentation. Payment terms and formal quotations are available upon request.

Contact our technical sales team before purchase if you need to confirm compatibility with a specific chassis model, cable revision, or NI software version. We respond to technical inquiries within one business day.
