NI AT-GPIB-TN Original Industrial Spare: System Stability & Reliable GPIB Communication

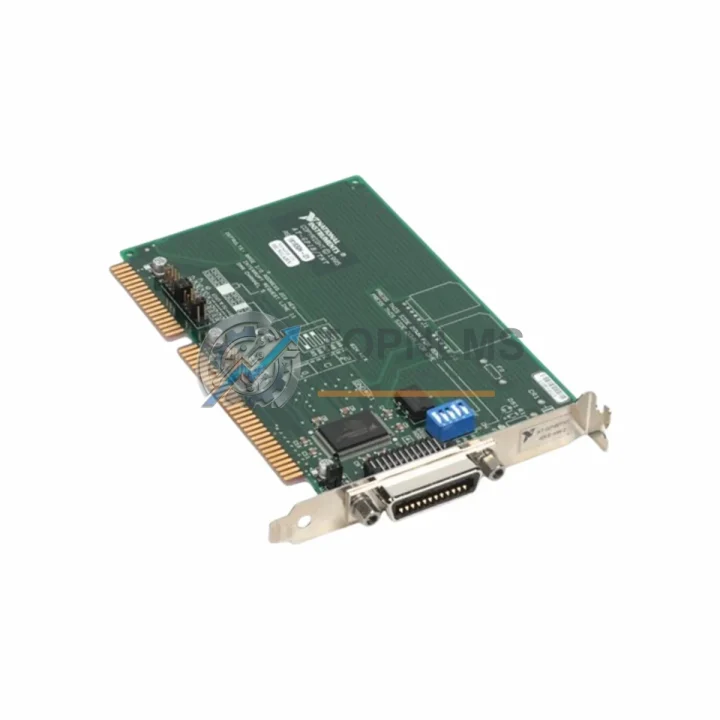

The National Instruments AT-GPIB-TN is an original ISA bus IEEE 488.2 GPIB controller card engineered for industrial Automated Test Equipment (ATE) systems, legacy measurement platforms, and precision instrument control environments. As a genuine NI AT-GPIB series component, the AT-GPIB-TN delivers the deterministic bus arbitration, high-throughput data transfer, and robust driver compatibility that maintenance engineers depend on when uptime is non-negotiable.

In industrial facilities where legacy ATE racks, spectrum analyzers, signal generators, and programmable power supplies are still in active service, the AT-GPIB-TN is a mission-critical interface. Its failure causes immediate loss of instrument communication, halting calibration cycles, production testing, and quality verification workflows. Stocking a verified original replacement eliminates the risk of extended downtime caused by sourcing delays or counterfeit substitutes.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a maintenance window around GPIB communication failures or ATE rack inspections, experienced maintenance engineers know that the AT-GPIB-TN rarely fails in isolation. The ISA bus ecosystem and the instrument chain it supports involve multiple interdependent components, and a proactive inspection of the entire signal path dramatically reduces the probability of repeat downtime.

Begin with the GPIB cable assembly — the IEEE 488 shielded cable connecting the AT-GPIB-TN to downstream instruments is subject to connector wear, pin corrosion, and shielding degradation over years of industrial use. A faulty cable can mimic controller card failure and should always be tested or replaced during the same maintenance cycle. Similarly, inspect the ISA bus slot and motherboard edge connector on the host PC or ATE controller for oxidation or mechanical damage, as poor bus contact is a common root cause of intermittent GPIB communication errors.

For facilities running multi-instrument ATE racks, the GPIB bus extender or hub (such as the NI GPIB-120A or equivalent) should be verified for proper termination and address conflict-free configuration. Address conflicts between instruments on the same bus — particularly when integrating instruments like the Agilent 34401A digital multimeter, Keithley 2400 SourceMeter, or Tektronix oscilloscope series — are a frequent source of communication timeouts that are misdiagnosed as controller card failure.

The host PC power supply feeding the ISA-bus ATE controller deserves attention during any GPIB card replacement. An aging ATX or industrial PC power supply with degraded voltage regulation on the +5V or +12V rails can cause erratic ISA bus behavior, leading to data corruption or card initialization failures. Replacing the AT-GPIB-TN without addressing an unstable power supply will result in premature failure of the new card.

In legacy ATE environments, the NI-488.2 software driver and VISA runtime installed on the controller PC must be version-compatible with the replacement card. Maintaining a documented software image or driver backup is as important as stocking the physical spare. Additionally, if the ATE system includes a signal conditioning module or isolation amplifier between the GPIB controller and high-voltage instruments, inspect these for calibration drift or relay wear — components such as the NI SCXI-1000 chassis or NI SCXI-1120 isolation amplifier module are common companions in the same maintenance cycle.

For facilities managing multiple ATE stations, consider stocking the NI PCI-GPIB or NI USB-GPIB-HS as a modern bridge solution alongside the AT-GPIB-TN, enabling rapid substitution on stations where ISA slots are unavailable. A well-structured spare parts inventory that covers both legacy ISA-based and modern PCI/USB GPIB interfaces ensures that no single hardware generation becomes a single point of failure across your test floor.

Strategic Replacement Solutions

The AT-GPIB-TN addresses one of the most persistent challenges in industrial ATE maintenance: the obsolescence of ISA bus hardware in long-lifecycle test systems. Many production facilities and calibration laboratories continue to operate ATE racks built in the 1990s and early 2000s, where the cost of full system replacement far exceeds the cost of targeted component-level maintenance. The AT-GPIB-TN enables these facilities to extend system life by 5–10 years without requalifying the entire test platform.

As an original NI AT-GPIB series card, the AT-GPIB-TN maintains full backward compatibility with existing NI-488.2 driver installations, LabVIEW test sequences, and instrument address configurations. There is no need to remap instrument addresses, rewrite test scripts, or recalibrate instruments — the replacement is transparent to the software layer, minimizing the validation burden on maintenance teams operating under strict change-control procedures.

For facilities transitioning away from ISA-based infrastructure, the AT-GPIB-TN can serve as a bridge component while a phased migration to PCI or USB GPIB interfaces is planned. This approach avoids the operational risk of a forced, unplanned migration triggered by hardware failure, allowing engineering teams to schedule the transition during planned downtime rather than emergency response windows.

Every AT-GPIB-TN unit shipped from TOPNLMS undergoes functional verification prior to dispatch, including bus initialization testing and driver compatibility checks. Units are packaged with ESD protection appropriate for sensitive ISA bus electronics and shipped with full documentation support.
