Mitsubishi MW621C BN634A233G51 Replacement for MW Series

Product Overview

Mitsubishi MW621C BN634A233G51 Replacement for MW Series: Seamless Transition from Legacy Drive Systems

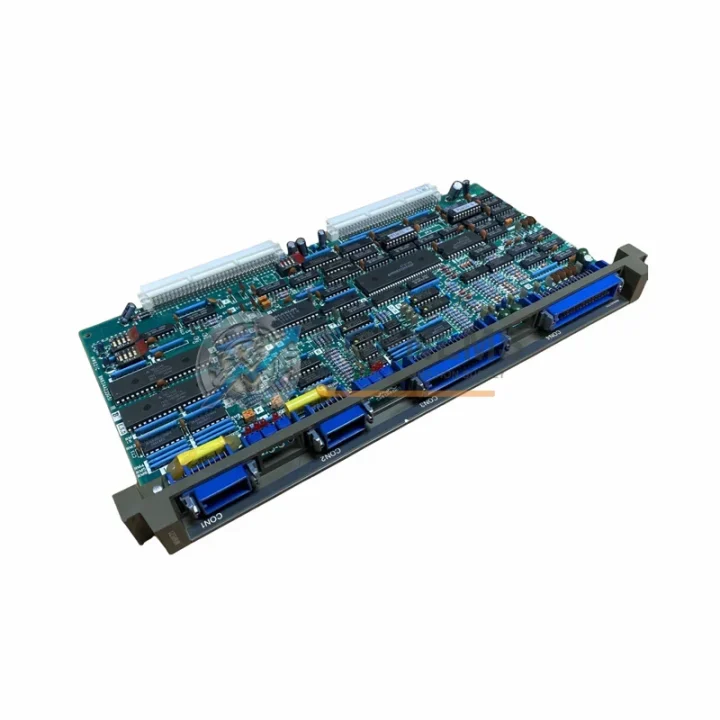

The Mitsubishi MW621C (part number BN634A233G51) is a drive circuit board originally designed for the Mitsubishi MW Series servo drive and spindle drive systems — a platform widely deployed across CNC machining centers, injection molding machines, and precision manufacturing lines throughout the 1990s and early 2000s. As Mitsubishi Electric has progressively discontinued support for the MW Series platform, sourcing a direct replacement for the MW621C BN634A233G51 has become a critical challenge for maintenance engineers and procurement teams managing aging production equipment.

TOPNLMS supplies verified MW621C BN634A233G51 drive circuit boards from controlled inventory, each unit inspected and function-tested prior to dispatch. Whether your facility is executing an emergency breakdown repair or planning a phased modernization of legacy drive cabinets, this board provides a direct drop-in solution that preserves your existing wiring harness, drive enclosure, and control architecture — eliminating the need for costly full-drive replacement or panel redesign.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MW621C board replacement rarely occurs in isolation. In practice, maintenance teams performing a drive circuit board swap on an MW Series unit will often simultaneously inspect or replace adjacent components that share the same operational stress cycle. The most common co-replacement items encountered during MW Series drive servicing include the MW621 power supply board, which provides the regulated DC rails feeding the gate drive circuitry, and the BN634 series interface board that handles encoder feedback and speed reference signals between the CNC controller and the drive chassis.

For facilities running Mitsubishi MELDASMAGIC or MELDAS CNC controllers — such as the MELDAS 500 or MELDAS 60 series — the drive circuit board interfaces directly with the CNC’s spindle or servo axis command output. Ensuring the replacement MW621C board is correctly seated and that the CN1/CN2 connector harness is undamaged is essential before powering the axis. Engineers should also verify the condition of the MR-J2 or MR-J3 series servo amplifier units installed in the same control cabinet, as degraded amplifier output stages can cause premature failure of a newly installed drive board.

In multi-axis machining centers, the MW Series drive cabinet typically houses multiple drive units sharing a common DC bus bar and a centralized power supply module. During a board-level repair, it is advisable to inspect the DC bus capacitor bank and the regenerative braking resistor assembly for signs of thermal stress. If the facility is also managing aging I/O infrastructure, the AJ65SBTB1-16D or AJ65SBTB2N-8R CC-Link remote I/O modules connected to the machine’s PLC — often a Mitsubishi MELSEC A-series or Q-series controller — should be verified for communication integrity after the drive is restored to service.

For sites planning a broader modernization rather than a like-for-like repair, the MW621C BN634A233G51 replacement board provides a cost-effective bridge solution that keeps the existing drive enclosure, wiring, and machine program intact while a longer-term migration to a current-generation platform — such as the Mitsubishi MR-J5 servo system or the FR-F800 series inverter — is planned and budgeted. This approach minimizes unplanned downtime and avoids the capital expenditure of a full drive cabinet replacement during an emergency breakdown event.

Additional components commonly sourced alongside the MW621C BN634A233G51 include the BN634A series gate trigger board, the MW Series encoder interface cable assembly, and the Mitsubishi A1SJ71QBR5 MELSECNET/B communication module where the machine is integrated into a plant-wide network. Procurement teams should also consider holding a spare MW621C board in local inventory given the discontinued status of the MW Series platform and the lead times associated with sourcing legacy industrial components.

Retrofit Guidance FAQ

Q: Can I install the MW621C BN634A233G51 without modifying the existing wiring harness?
A: Yes. The replacement board uses the identical OEM connector layout and pin assignment as the original BN634A233G51. No rewiring or harness modification is required for a standard board-level swap within the MW Series drive chassis.

Q: Will the CNC controller program need to be modified after replacing the drive circuit board?
A: No program changes are required. The MW621C board operates within the same drive architecture and communicates via the same internal bus protocol. Axis parameters stored in the CNC controller — such as the MELDAS 500 or MELDAS 60 — remain valid after the board replacement.

Q: Is the board compatible with both spindle drive and servo axis drive configurations in the MW Series?
A: The MW621C BN634A233G51 is a drive circuit board specific to the MW Series platform. Compatibility with spindle versus servo axis configurations depends on the specific drive unit model. Please confirm your drive unit model number when placing your order so our technical team can verify the correct application.

Q: What physical space or installation clearance is required?
A: The replacement board is dimensionally identical to the original. It mounts directly into the existing drive chassis using the original standoffs and fastener positions. No additional panel space or enclosure modification is needed.

Q: How do I verify the board is functioning correctly after installation?
A: After installation, power up the drive in a controlled sequence per the MW Series drive service manual. Monitor the drive’s status LED indicators and verify that the CNC controller reports no axis fault codes. If the system was previously generating an overcurrent or gate drive fault alarm, successful board replacement should clear these faults upon restart.

Q: What if the replacement board does not resolve the fault condition?
A: If the fault persists after board replacement, the root cause may lie in an adjacent component — such as the IGBT module, the power supply board, or the encoder feedback cable. TOPNLMS technical support can assist with fault diagnosis. Units covered under our 12-month warranty that are confirmed defective on arrival will be replaced or refunded.

Warranty Assurance

Every MW621C BN634A233G51 drive circuit board supplied by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify board integrity, connector condition, and component-level quality. Units that do not pass inspection are not shipped.

In the event that a unit is found to be defective on arrival (DOA), TOPNLMS will arrange a replacement or issue a full refund — subject to confirmation of the fault condition. Warranty claims are processed within 5 business days of receiving the returned unit. Our after-sales response team is reachable via email and phone to support fault diagnosis, installation guidance, and warranty processing throughout the warranty period.

For procurement teams managing maintenance budgets and spare parts inventory for discontinued Mitsubishi MW Series equipment, TOPNLMS offers consolidated sourcing of multiple legacy drive components under a single purchase order, with combined shipping and documented quality records for each unit supplied.

Stock levels for discontinued MW Series components fluctuate. We recommend confirming availability and lead time at the time of inquiry to avoid delays in your maintenance or production schedule.
