Mitsubishi KCJ-160A Original Industrial Spare MELSERVO Compatible

Product Overview

Mitsubishi KCJ-160A Original Industrial Spare MELSERVO Compatible: System Stability & Servo Drive Maintenance Value

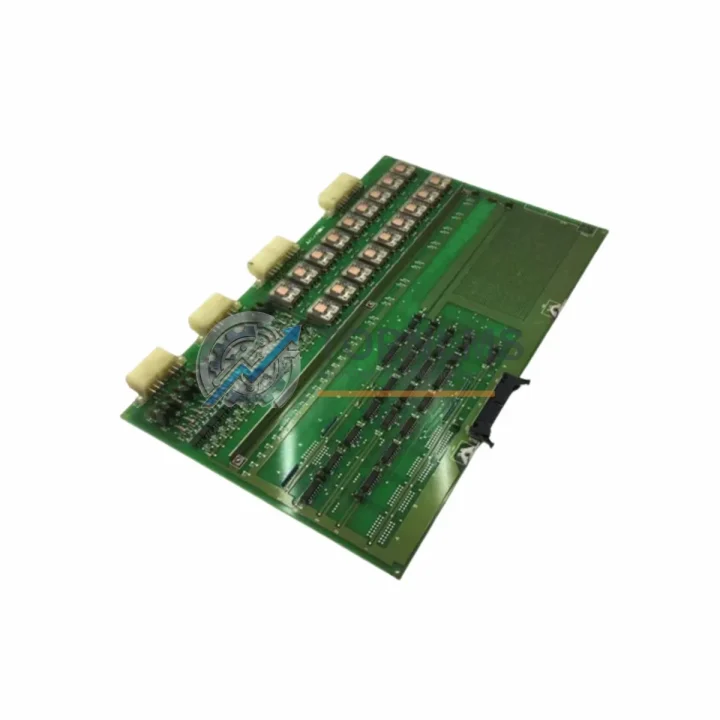

The Mitsubishi KCJ-160A is an original MELSERVO series servo drive PCB control card, engineered for precision motion control in demanding industrial automation environments. As a critical internal component of Mitsubishi MELSERVO servo amplifiers, the KCJ-160A governs the core control logic responsible for speed regulation, torque management, encoder feedback processing, and fault diagnostics. When this card fails, the entire servo axis goes offline — halting production lines, robotic arms, CNC machining centers, and automated assembly systems. Sourcing a verified original replacement is not optional; it is the fastest path back to full operational capacity.

At TOPNLMS, every KCJ-160A unit is sourced from authorized industrial supply channels, individually inspected, and function-tested prior to shipment. Our 12-month warranty covers defects in materials and workmanship, giving maintenance engineers and procurement managers the confidence to stock this part as a critical spare without reservation.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive PCB failure rarely occurs in isolation. In most industrial facilities, the KCJ-160A operates within a tightly integrated motion control cabinet where multiple components share electrical stress, thermal cycles, and vibration loads. A disciplined preventive maintenance program should treat the servo amplifier as a system — not a single replaceable unit.

When scheduling a servo amplifier inspection or replacing a KCJ-160A control card, maintenance teams should simultaneously audit the MR-J2S-series servo amplifier power board for capacitor aging and IGBT thermal stress. The servo motor encoder cable assembly (typically a shielded multi-core cable such as the MR-JCCBL series) should be inspected for insulation cracking, connector corrosion, and signal integrity — a degraded encoder cable is one of the most common root causes of KCJ-160A fault codes. The regenerative resistor unit connected to the amplifier should be checked for resistance drift and thermal discoloration.

Inside the control cabinet, the 24VDC control power supply module feeding the servo amplifier logic circuits deserves close attention; voltage ripple or dropout events accelerate PCB component aging. The I/O interface module handling servo enable, alarm reset, and positioning trigger signals should be verified for contact reliability and signal voltage levels. If the system uses a Mitsubishi MELSEC Q-series or iQ-R series PLC as the motion controller, the motion CPU module and SSCNET III/H communication cable connecting the PLC to the servo amplifier should be inspected for connector seating and cable integrity — communication errors at this layer can mimic servo PCB faults.

For facilities running legacy MELSERVO systems, the battery backup unit for absolute encoder position retention is a frequently overlooked consumable. A depleted battery triggers absolute position loss alarms that can be misdiagnosed as PCB failure. Stocking a supply of MR-BAT6V1SET or equivalent encoder backup batteries alongside the KCJ-160A eliminates this diagnostic ambiguity. Additionally, the terminal block and wiring duct assembly within the servo cabinet should be inspected for loose terminations, which introduce intermittent faults that are difficult to trace without systematic inspection.

A complete preventive maintenance kit for a MELSERVO servo axis should therefore include: the KCJ-160A control card, encoder cable, power supply module, regenerative resistor, encoder battery, and I/O interface module — all sourced as verified original spares to maintain system compatibility and warranty integrity.

Strategic Replacement Solutions

The KCJ-160A addresses one of the most persistent challenges in industrial maintenance: keeping legacy servo systems operational when the original equipment manufacturer has discontinued active production of internal PCB components. Many factories continue to operate MELSERVO amplifiers that are 10–20 years old because the mechanical systems they drive — precision grinders, injection molding machines, packaging lines, and transfer presses — remain fully productive. The cost of replacing the entire servo system far exceeds the cost of maintaining it with original spare PCBs.

By stocking the KCJ-160A as a critical spare, maintenance departments eliminate the most dangerous phase of an unplanned servo failure: the sourcing delay. When a servo axis trips offline during production, every hour of downtime carries a measurable cost in lost output, labor idle time, and potential downstream process disruption. A pre-positioned KCJ-160A on the shelf converts a multi-day emergency sourcing event into a same-shift board swap — provided the maintenance team has the correct replacement and the technical documentation to execute the swap safely.

The KCJ-160A is a direct original replacement that preserves full compatibility with the existing amplifier chassis, motor, and PLC motion program. No parameter re-engineering, no firmware adaptation, and no system re-commissioning beyond standard servo gain tuning after board replacement. This makes it the lowest-risk, highest-value spare investment for any facility running MELSERVO servo technology.

For procurement managers building a strategic spare parts inventory, we recommend evaluating the KCJ-160A alongside other high-criticality MELSERVO components based on mean time between failures, lead time risk, and production impact severity. TOPNLMS can support bulk procurement inquiries and multi-unit pricing for facilities managing multiple servo axes.

Support FAQ

Q1: How do I confirm the KCJ-160A is compatible with my specific MELSERVO amplifier model?
The KCJ-160A is an internal PCB control card for specific MELSERVO servo amplifier models. Compatibility is determined by the amplifier’s model number and production date code. Please provide your amplifier’s full model number (found on the nameplate) when contacting us, and our technical team will confirm compatibility before shipment. Do not install without verification.

Q2: What testing is performed before shipment?
Every KCJ-160A unit undergoes functional inspection and electrical verification prior to dispatch. Units that do not pass our pre-shipment test protocol are not sold. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and component failure under normal operating conditions.

Q3: What is the recommended spare parts lifecycle strategy for MELSERVO PCB components?
For critical servo axes with no redundancy, we recommend maintaining at least one KCJ-160A on-site as a hot spare. For facilities with multiple identical servo amplifiers, a 1:5 or 1:10 spare ratio is a common industry benchmark. PCB components in servo amplifiers typically have a service life of 8–15 years depending on thermal load, duty cycle, and environmental conditions. Proactive replacement during scheduled maintenance windows is preferable to reactive replacement during unplanned downtime.

Q4: Can the KCJ-160A be shipped internationally, and what are the lead times?
Yes. TOPNLMS ships globally. In-stock units are dispatched within 1–3 business days. International shipments are handled via tracked express courier services. For urgent requirements, please contact us directly to confirm stock availability and expedited shipping options.
