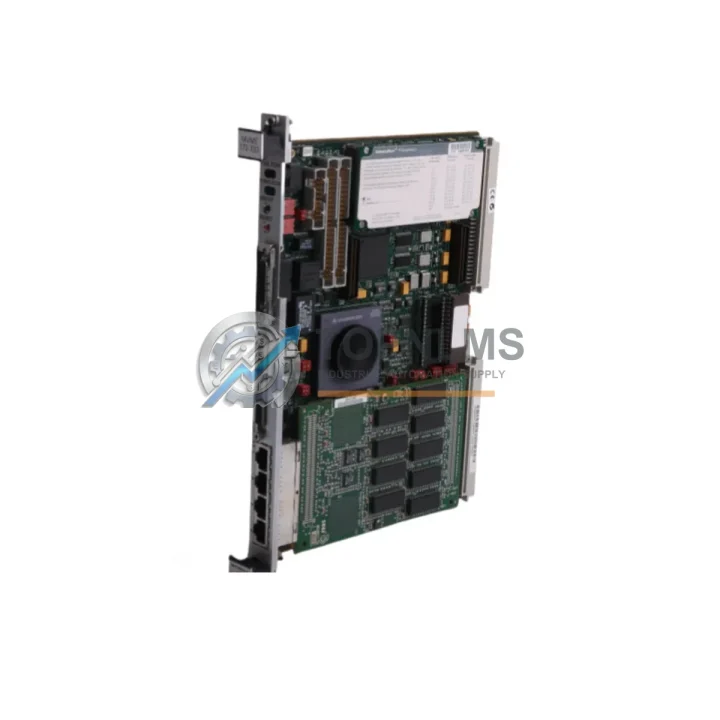

MOTOROLA MVME172-333 Replacement/Upgrade for MVME 172

Product Overview

MOTOROLA MVME172-333 Replacement/Upgrade Solution for MVME 172 Series: Seamless Transition & Legacy System Compatibility

The MOTOROLA MVME172-333 is a high-performance VMEbus Single Board Computer (SBC) built around the Motorola 68060 processor running at 33 MHz. For facilities operating legacy VMEbus-based control architectures — including distributed control systems (DCS), SCADA platforms, and process automation controllers — the MVME172-333 represents a proven, field-validated upgrade path from earlier MVME 172 Series variants such as the MVME172-010, MVME172-023, MVME172-033, and MVME172-513. Whether your existing board has reached end-of-life, suffered hardware failure, or is simply no longer supported by the OEM, this module provides a direct, low-disruption replacement that preserves your existing VME rack infrastructure, backplane wiring, and application software architecture.

Industrial facilities running VMEbus control systems face a common challenge: the original hardware is discontinued, spare parts are scarce, and a full system migration to a modern PLC or DCS platform is cost-prohibitive in the short term. The MVME172-333 addresses this gap by offering a compatible drop-in solution that maintains the same VME64 bus interface, physical form factor (6U VMEbus), and memory-mapped I/O architecture as the boards it replaces. Engineers can retain their existing VxWorks or OS-9 application code, minimizing re-engineering effort and reducing commissioning risk during the transition period.

When planning a retrofit or emergency replacement, the MVME172-333 is typically deployed alongside several complementary modules within the same VME chassis. The MVME712M transition module or MVME761 transition module handles the physical I/O breakout, providing the DB-9 and DB-25 serial connectors that map to the SBC’s onboard SCSI, Ethernet, and serial ports. For systems requiring expanded memory or additional processing headroom, the MVME172-333 can be paired with MVME374 or MVME376 Ethernet controllers to extend network connectivity within the same rack. Power integrity is critical in VMEbus environments; the MVME172-333 operates on a standard ±5V/±12V VME power rail, and facilities should verify that their existing MVME917 or equivalent VME power supply module meets the current draw specifications before installation.

Communication protocol compatibility is a primary concern during any control system upgrade. The MVME172-333 supports standard VMEbus data transfer modes including BLT (Block Transfer) and MBLT (Multiplexed Block Transfer), ensuring backward compatibility with VME master and slave modules already installed in the rack. For facilities using serial fieldbus protocols such as RS-232, RS-422, or RS-485 — common in legacy DCS environments — the onboard Z85230 ESCC serial controller provides two independent serial channels that can be configured to match existing baud rates and framing parameters without firmware modification. If the legacy system also includes MVME162 or MVME167 SBCs in adjacent slots, the MVME172-333 can coexist on the same VME backplane, allowing phased migration rather than a full cutover.

Physical installation follows standard VME 6U module procedures. The MVME172-333 occupies a single VME slot and is secured via the standard front-panel ejector levers. No special tooling is required. The module’s front panel provides direct access to the SCSI-2 port (for legacy disk or tape subsystems), two serial ports, and the 10BASE-T Ethernet interface — all of which align with the connector positions of earlier MVME 172 Series boards, simplifying cable reconnection. For facilities where control cabinet space is constrained, the single-slot form factor is a significant advantage over multi-board upgrade alternatives.

From a procurement and supply chain perspective, sourcing a verified MVME172-333 replacement is often time-critical. Unplanned downtime in process manufacturing, power generation, or discrete manufacturing environments carries significant financial and safety consequences. TOPNLMS maintains tested inventory of the MVME172-333 and related MVME 172 Series modules, with standard lead times of 3–7 business days for international shipment from Xiamen. Each unit undergoes functional verification prior to dispatch, and all modules are shipped with full ESD-protective packaging and documentation. A 12-month warranty is included as standard, covering manufacturing defects and functional failures under normal operating conditions. Replacement or repair support is available throughout the warranty period, with technical response within 24 business hours.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MVME172-333 retrofit rarely involves the SBC alone. In most VMEbus control cabinets, the board operates as part of a tightly integrated subsystem. The MVME712M or MVME761 transition module provides the physical I/O breakout panel that connects the SBC’s P2 connector to field wiring — retaining this module during an SBC swap eliminates the need to re-terminate field cables. For systems with expanded I/O requirements, MVME162FX or MVME167 I/O processor boards can be retained in adjacent VME slots, continuing to handle interrupt-driven I/O tasks while the MVME172-333 manages the primary application. Where network integration is required, the MVME376 Ethernet controller provides additional 10/100BASE-T ports on the same VME backplane without consuming the SBC’s onboard Ethernet resource.

Power distribution within the VME chassis should be reviewed as part of any SBC replacement. The MVME917 or equivalent VME power entry module must supply sufficient current on the +5V rail to support the 68060 processor’s peak demand. For cabinets where the existing power supply is marginal, a parallel MVME918 power module can be added without chassis modification. Signal integrity between the MVME172-333 and legacy analog I/O subsystems can be maintained using DIN-rail-mounted signal isolators on the RS-422/485 serial lines, particularly in environments with high electrical noise from variable frequency drives (VFDs) or motor starters. Programming and diagnostic access is provided via the onboard serial debug port, compatible with standard RS-232 terminal emulators and Motorola’s MVME172 board support package (BSP) for VxWorks.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing an MVME172-010 or MVME172-023 with the MVME172-333?
A: Yes. The MVME172-333 uses the same P1/P2 VMEbus connector pinout as earlier MVME 172 Series boards. If your system uses an MVME712M or MVME761 transition module for field I/O breakout, no re-termination is required. Only the SBC itself needs to be swapped.

Q: Will my existing VxWorks or OS-9 application software run on the MVME172-333?
A: In most cases, yes. The MVME172-333 is binary-compatible with earlier 68060-based MVME 172 boards at the BSP level. Applications compiled for the 68060 instruction set will execute without recompilation. BSP-level differences (memory map, interrupt vectors) should be verified against the MVME172 programmer’s reference manual before deployment.

Q: What serial communication protocols are supported?
A: The onboard Z85230 ESCC supports RS-232, RS-422, and RS-485 at configurable baud rates up to 1 Mbps. This covers the majority of legacy DCS and SCADA serial fieldbus configurations, including Modbus RTU and proprietary serial protocols used by older process controllers.

Q: Does the MVME172-333 fit in the same VME slot as the board it replaces?
A: Yes. The module is a standard 6U VMEbus single-slot board. It installs in any VME64-compatible slot in a standard 6U VME chassis without mechanical modification.

Q: How do I verify the MVME172-333 is functioning correctly after installation?
A: Connect a terminal emulator to the onboard serial debug port (Port 1, RS-232) at 9600 baud, 8N1. The MVME172 ROM monitor (MVME172Bug) will output a boot prompt on power-up. Successful boot and memory test completion confirms hardware integrity before loading the application OS.

Warranty Assurance

Every MOTOROLA MVME172-333 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification procedure that includes power-on self-test (POST) completion, memory test, and serial port loopback verification. Units that do not pass all test criteria are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund at the customer’s discretion. Technical support is available via email and phone throughout the warranty period, with an initial response commitment of 24 business hours. For time-critical production environments, expedited replacement dispatch is available upon request.

All units are shipped in anti-static bags with foam cushioning inside double-wall corrugated cartons, meeting JEDEC JESD22-A112 ESD packaging standards. Export documentation, including commercial invoice, packing list, and certificate of origin (China), is provided with every international shipment. DHL Express, FedEx International Priority, and UPS Worldwide Express are available as shipping options, with typical transit times of 3–5 business days to major industrial regions in Europe, North America, Southeast Asia, and the Middle East.

For volume procurement, OEM replacement programs, or consignment stocking arrangements, please contact our industrial automation parts team directly.
