Motorola MVME147S-1 Replacement for MVME 147 Series

Product Overview

Motorola MVME147S-1 Replacement for MVME 147 Series: Smooth Migration & Legacy System Upgrade

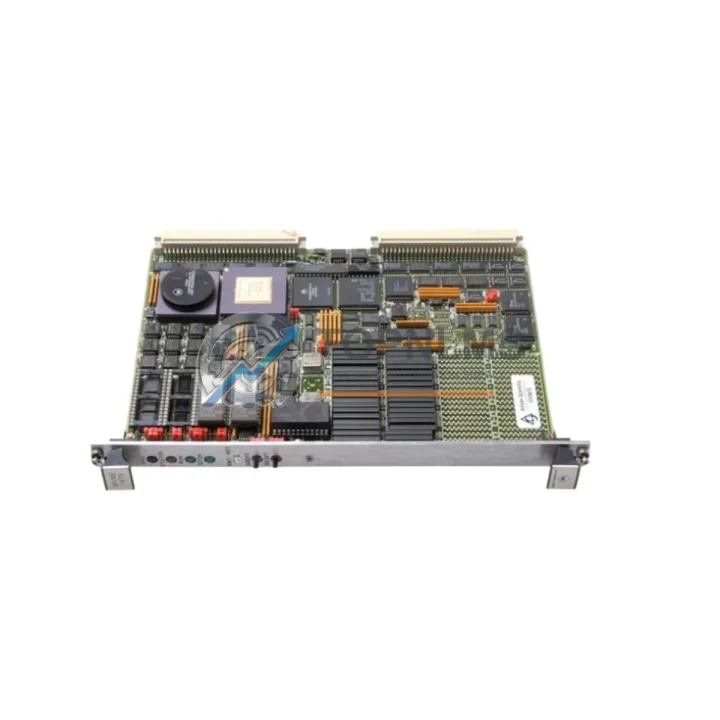

The Motorola MVME147S-1 is a high-performance VMEbus Single-Board Computer (SBC) from the MVME 147 Series, built around the Motorola 68030 processor and designed for demanding industrial control, real-time automation, and embedded computing applications. As original MVME147S-1 units reach end-of-life and spare parts become increasingly scarce, many facilities running legacy VMEbus-based control systems — including distributed control systems (DCS), SCADA platforms, and process automation controllers — are facing urgent replacement decisions. TOPNLMS supplies tested, verified MVME147S-1 boards with a 12-month warranty to support seamless migration with minimal downtime.

Whether your plant is running a legacy Motorola VMEbus rack system, a third-party VME chassis from the 1990s, or an integrated control cabinet that relies on the MVME147S-1 as its central processing node, this replacement board is engineered to restore full system functionality without requiring a complete control system overhaul. The MVME147S-1 maintains backward compatibility with the VMEbus (IEEE 1014) standard, allowing it to slot directly into existing 6U VME backplanes alongside companion modules such as the MVME712M transition module, MVME332XT serial I/O board, and MVME376 Ethernet controller — all of which remain in active use across many industrial sites.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MVME147S-1 migration rarely involves replacing just the SBC in isolation. In most VMEbus control cabinets, the MVME147S-1 operates as the system controller in a multi-board rack alongside a range of companion modules. During the upgrade process, engineers typically also evaluate the condition of the MVME712M transition module, which provides the physical P2 connector breakout for serial and parallel I/O signals — a critical interface for field wiring continuity. If the existing MVME712M shows signs of connector wear or corrosion, replacing it alongside the MVME147S-1 eliminates a common source of intermittent faults post-migration.

For systems that rely on Ethernet-based supervisory communication, the MVME376 Ethernet controller board is frequently paired with the MVME147S-1 in the same VME chassis. Verifying the MVME376’s firmware revision and AUI/10BASE-T configuration before commissioning the replacement SBC ensures that SCADA polling cycles and historian data collection resume without reconfiguration. Similarly, sites using SCSI-attached storage or tape backup should confirm that the NCR 53C710 SCSI-2 driver version on the replacement MVME147S-1 matches the host OS image — particularly for VxWorks and OS-9 environments where driver binaries are tightly coupled to the board revision.

In control cabinets where the MVME147S-1 interfaces with analog and digital field I/O, the MVME332XT serial I/O board and MVME340 parallel I/O module are common rack neighbors. These boards communicate over the VMEbus backplane and do not require rewiring when the SBC is swapped, provided the replacement board’s VMEbus address map and interrupt vector assignments are configured to match the original. TOPNLMS recommends documenting the existing board’s switch and jumper settings — particularly SW1 and the EPROM revision — before removal to accelerate recommissioning.

For facilities planning a phased migration from a legacy VMEbus architecture toward a more modern control platform, the MVME147S-1 replacement can serve as a stable interim solution while the broader system architecture is redesigned. During this transition period, it is common to introduce a protocol gateway or signal isolator between the VMEbus system and newer Ethernet-based I/O networks, allowing the legacy control logic to remain operational while new field devices are commissioned in parallel. This approach significantly reduces the risk of unplanned production stoppages and allows engineering teams to validate the new system configuration before full cutover.

Retrofit Guidance FAQ

Q: Will the MVME147S-1 replacement fit directly into my existing VME chassis without mechanical modification?
A: Yes. The MVME147S-1 is a standard 6U VMEbus board and will fit any VME chassis with a compatible 6U slot. No mechanical modification is required. Verify that the backplane provides +5V and ±12V rails within specification before installation.

Q: Do I need to reload my application software after replacing the board?
A: This depends on your storage configuration. If your application resides on a SCSI hard disk or Flash EPROM attached to the original board, you will need to transfer the image to the replacement unit. If the application is loaded from a network boot server (common in VxWorks environments), no changes to the application image are required — only the board’s network identity (IP address, boot parameters) needs to be reconfigured via the board’s ROM monitor (MVME147 Bug).

Q: Are the serial port pinouts and wiring compatible with my existing field cables?
A: The MVME147S-1 uses the P2 connector for serial I/O, routed through the MVME712M transition module. If your existing MVME712M is retained, all field wiring remains unchanged. If the MVME712M is also being replaced, verify the transition module revision to ensure pin-for-pin compatibility with your existing cable harness.

Q: What communication protocols does the MVME147S-1 support?
A: The board supports RS-232 and RS-422 serial communication via the P2/MVME712M interface, 10BASE-T and AUI Ethernet (via MVME376 or onboard controller depending on revision), and SCSI-2 for storage. VMEbus inter-board communication follows the IEEE 1014 standard. Protocol-level compatibility (Modbus RTU, DNP3, proprietary DCS protocols) is determined by the application software running on the board, not the hardware itself.

Q: How do I configure the board’s VMEbus address and interrupt settings to match the original?
A: Address and interrupt configuration is performed via DIP switches (SW1) and jumpers on the board. TOPNLMS recommends photographing or recording all switch positions on the original board before removal. The MVME147 Bug ROM monitor also stores boot parameters that should be documented and re-entered on the replacement unit during commissioning.

Warranty Assurance

Every MVME147S-1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a functional verification process that includes power-on self-test (POST) confirmation, VMEbus interface check, and serial port continuity testing. Units that do not pass verification are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical team is available to assist with installation questions, configuration guidance, and compatibility verification before and after shipment. Standard lead time is 24 hours from order confirmation, with express shipping options available for urgent plant maintenance situations. All units are shipped from Xiamen, China, with full export documentation and commercial invoice for customs clearance.

For procurement teams requiring traceability documentation, test reports, or certificate of conformance, please contact our sales team prior to order placement. TOPNLMS is committed to supporting industrial facilities with reliable spare parts supply, responsive after-sales service, and transparent sourcing practices.
