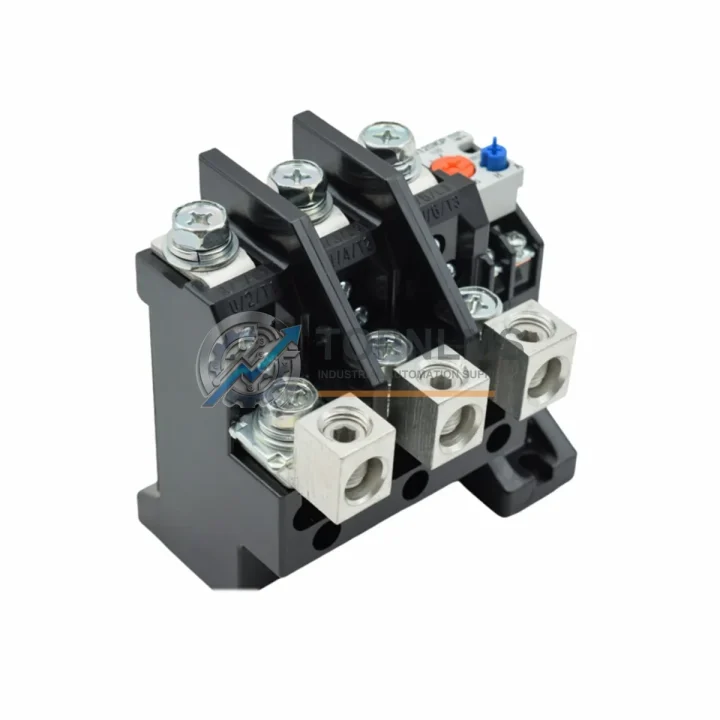

Mitsubishi TH-N12KP Original Industrial Spare TH-N Compatible

Product Overview

Mitsubishi TH-N12KP Original Industrial Spare TH-N Compatible: System Stability Through Reliable Motor Protection

In industrial automation environments where uptime is non-negotiable, the Mitsubishi Electric TH-N12KP thermal overload relay stands as a critical line of defense for motor circuits operating within the 7–12A protection range. As an original Mitsubishi Electric spare part from the proven TH-N Series, the TH-N12KP is engineered to integrate seamlessly into existing motor control centers, control cabinets, and MCC panels without modification, preserving the integrity of legacy and current-generation systems alike. Whether you are managing a planned maintenance shutdown, responding to an unplanned motor trip, or building a strategic spare parts inventory to reduce future downtime risk, the TH-N12KP delivers the specification accuracy and long-term reliability that industrial maintenance teams depend on.

Critical Technical Specs

Preventive Maintenance Strategy

A thermal overload relay replacement is rarely an isolated event. When a TH-N12KP trips or shows signs of calibration drift — evidenced by nuisance tripping, slow response to sustained overloads, or visible heat discoloration on the bimetal strip — experienced maintenance engineers treat this as a signal to conduct a broader inspection of the entire motor control circuit. The motor starter assembly that houses the TH-N12KP typically includes a Mitsubishi S-N Series contactor (such as the S-N10 or S-N12), and both components should be inspected simultaneously. Contactor coil wear, contact erosion, and arc chute degradation often develop in parallel with overload relay fatigue, particularly in high-cycle applications such as conveyor drives, pump stations, and compressor controls.

During a scheduled cabinet inspection, maintenance teams should also verify the condition of the control circuit transformer supplying the coil voltage, as voltage fluctuations are a leading cause of premature overload relay wear. The terminal blocks and wiring ferrules connecting the TH-N12KP to the motor circuit should be checked for looseness and oxidation — poor connections generate localized heat that can skew the bimetal calibration over time. If the motor is driven by a Mitsubishi FR-E700 or FR-D700 Series variable frequency drive (VFD), confirm that the overload relay is correctly positioned downstream of the VFD output and that the trip class is appropriate for inverter-driven loads.

For facilities running Mitsubishi MELSEC Q Series or iQ-R Series PLC systems that monitor motor status via digital input modules, the TH-N12KP’s auxiliary contact output (1NO + 1NC) should be wired to the corresponding QX40 or RX40C7 digital input module to enable remote trip detection and alarm logging. This integration is essential for predictive maintenance programs that rely on PLC-based fault history. Simultaneously, inspect the power supply module (such as the Q61P or R61P) feeding the PLC rack, as power quality issues can cause false trip signals that are misattributed to the overload relay itself.

In control cabinets with multiple motor starters, it is best practice to replace overload relays in batches when one unit fails, particularly if all units were installed at the same time and have accumulated similar operating hours. Stocking a small buffer of TH-N8KP (5–8A range) and TH-N18KP (12–18A range) units alongside the TH-N12KP ensures coverage across the full motor rating spectrum in a typical MCC panel. Additionally, surge suppressors fitted to contactor coils and fuse modules protecting the control circuit should be inspected and replaced on the same maintenance cycle to prevent secondary failures after a motor trip event.

Strategic Replacement Solutions

The TH-N12KP is the direct original replacement for aging TH-N Series units that may have been in service for 5–10 years in demanding industrial environments. Unlike aftermarket alternatives, the original Mitsubishi Electric TH-N12KP maintains factory-calibrated bimetal trip characteristics, ensuring that the 7–12A protection curve matches the motor nameplate data precisely. This is critical in applications where nuisance tripping causes production losses or where delayed tripping risks motor winding damage.

For facilities managing legacy systems where the original TH-N12KP has been discontinued from local distributor stock, sourcing from a specialist industrial spare parts supplier ensures access to genuine units with full traceability. Each unit supplied by TOPNLMS is tested prior to shipment for trip function verification, auxiliary contact continuity, and reset mechanism operation. This pre-shipment testing protocol reduces the risk of installing a defective unit into a live motor circuit — a scenario that can cause immediate re-tripping and extended downtime.

The TH-N12KP’s direct-mount compatibility with S-N Series contactors means that replacement requires no additional adapters, bracket modifications, or wiring changes, enabling a field technician to complete the swap in under 15 minutes during a planned maintenance window. This plug-and-play replacement capability is a key advantage for facilities that prioritize rapid return-to-service after a motor protection event, minimizing the mean time to repair (MTTR) and reducing the financial impact of unplanned downtime.

Support FAQ

Q1: Is the TH-N12KP compatible with all Mitsubishi S-N Series contactors?
The TH-N12KP is designed for direct mounting on Mitsubishi S-N10, S-N12, S-N18, and S-N21 contactors. For larger contactors in the S-N Series (S-N35 and above), a different TH-N model with a higher current range is required. Please verify the contactor frame size before ordering.

Q2: What is the recommended replacement interval for the TH-N12KP in continuous-duty applications?
Mitsubishi Electric recommends inspection every 2–3 years for overload relays in continuous-duty motor circuits, with replacement at 5–7 years or after any sustained overload event that causes a thermal trip. In high-cycle or high-ambient-temperature environments, more frequent inspection is advised.

Q3: How is each TH-N12KP unit tested before shipment?
Every unit undergoes pre-shipment verification covering trip function at rated current, auxiliary contact (1NO + 1NC) continuity, reset mechanism operation (both manual and automatic modes), and visual inspection for physical integrity. A test record is available upon request for quality-critical applications.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, operation outside rated parameters, or physical mishandling. Warranty claims are processed with full technical support from TOPNLMS.
