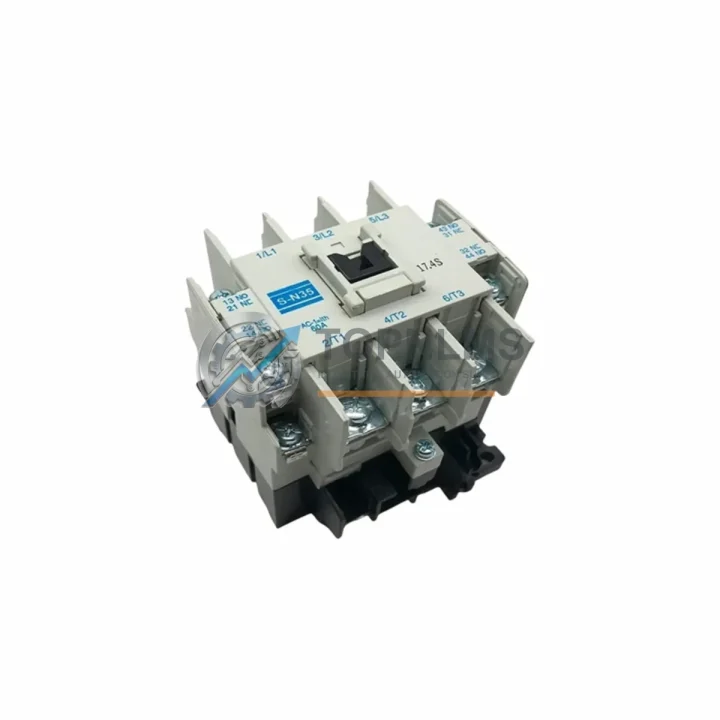

Mitsubishi S-N35 Ruggedized Magnetic Contactor for Harsh Environments

Product Overview

Mitsubishi S-N35 Ruggedized Magnetic Contactor for Harsh Environments

The Mitsubishi Electric S-N35 is a 35A AC-3 rated magnetic contactor engineered for continuous, reliable motor switching in the most demanding industrial environments. Designed to IEC 60947-4-1 standards, the S-N35 delivers exceptional dielectric strength, arc suppression, and mechanical endurance — making it the preferred choice for engineers specifying motor control solutions in high-temperature, high-humidity, dust-laden, vibration-intensive, and electromagnetically noisy facilities.

Whether deployed in a compact control cabinet on a continuous production line or integrated into a distributed motor control center (MCC) in a petrochemical plant, the S-N35 maintains contact integrity and switching precision across thousands of operating cycles. Its robust housing resists ingress from fine particulates and condensation, while its silver-alloy contact tips are rated for the thermal and electrical stresses inherent to AC-3 inductive load switching. For industrial buyers managing critical uptime, the S-N35 represents a proven, specification-grade spare and replacement component with immediate availability from TOPNLMS.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architecture, the S-N35 contactor rarely operates in isolation. It is most commonly paired with a Mitsubishi TH-N series thermal overload relay — such as the TH-N20 or TH-N35 — to form a complete, IEC-compliant motor starter assembly. This combination provides both switching and overcurrent protection in a compact, panel-mount footprint, reducing wiring complexity and cabinet space requirements.

For applications requiring programmable motor control logic, the S-N35 is frequently driven by output modules from the Mitsubishi MELSEC Q series or MELSEC iQ-R series PLC platforms. Discrete output cards such as the QY10 or RY40P5B interface directly with the contactor coil circuit, enabling sequence control, interlock logic, and remote start/stop commands from a central CPU module. In distributed I/O architectures, MELSEC CC-Link remote I/O stations or MELSEC-ST slice terminal modules can relay switching commands across the plant network with deterministic response times.

Where variable-speed operation is required upstream or downstream of the contactor, Mitsubishi FR-E800 or FR-A800 series variable frequency drives (VFDs) are commonly integrated into the same control cabinet. The S-N35 may serve as a bypass contactor or line contactor in these drive bypass circuits, ensuring the motor can continue operating at full speed during drive maintenance without process interruption.

Power quality and circuit protection are addressed by pairing the S-N35 with Mitsubishi NF series molded case circuit breakers (MCCBs) — such as the NF63-CV or NF125-CV — which provide upstream short-circuit and overload protection for the contactor and motor branch circuit. For 24VDC control circuit reliability, Mitsubishi PS series industrial power supplies ensure stable coil energization even under fluctuating input voltage conditions common in heavy industrial environments.

In safety-critical applications, the S-N35 can be integrated with Mitsubishi safety relay modules or third-party safety PLCs to form SIL-rated emergency stop and safety gate interlock circuits. The contactor’s positive-opening auxiliary contacts support safety loop monitoring, enabling the control system to verify de-energization before permitting hazardous zone access.

Application in Critical Infrastructure

The S-N35 has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas processing facilities, it controls pump motors and compressor drives in environments subject to hydrocarbon vapors, high ambient temperatures, and continuous vibration from rotating machinery. Its sealed arc chamber prevents ignition risk and ensures reliable interruption of inductive loads under fault conditions.

In mining operations — including underground coal mines and open-pit mineral extraction sites — the S-N35 is deployed in conveyor belt motor starters, ventilation fan control panels, and dewatering pump stations. The contactor’s vibration and shock ratings align with the mechanical stresses generated by blasting operations and heavy haulage equipment. Its DIN rail mounting allows rapid replacement during scheduled maintenance windows, minimizing production downtime.

Within power generation and electrical substation environments, the S-N35 is used in auxiliary motor control for cooling fans, oil pumps, and transformer cooling systems. Its high mechanical endurance rating ensures reliable performance across the extended service intervals typical of power utility maintenance schedules. In water and wastewater treatment plants, the contactor manages submersible pump motors and aeration blower drives in high-humidity, chemically aggressive atmospheres where contact corrosion resistance is paramount.

The metallurgical and steel industry presents some of the harshest operating conditions for electrical switchgear — extreme radiant heat, heavy electromagnetic interference from arc furnaces, and pervasive metallic dust. The S-N35’s robust construction and IEC-rated insulation system allow it to function reliably in rolling mill auxiliary drives, ladle transfer car controls, and fume extraction fan starters. In automotive and electronics manufacturing, the contactor supports precision conveyor systems, robotic cell power distribution, and cleanroom HVAC motor control, where consistent switching performance directly impacts product quality and yield.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers all manufacturing defects in materials and workmanship from the date of shipment. Every S-N35 unit shipped by TOPNLMS undergoes a pre-shipment functional test — including coil energization verification, contact resistance measurement, and mechanical operation check — before dispatch. In the event of a warranty claim, contact [email protected] with your order number and a description of the fault. Replacement or refund is processed within 5 business days of fault confirmation.

Q2: How do I verify compatibility with my existing Mitsubishi motor starter or control panel?
The S-N35 is fully compatible with all standard S-N series accessories, including TH-N series thermal overload relays, S-N series auxiliary contact blocks (CA-N series), and surge suppressor kits. It mounts on standard 35mm DIN rail or via screw fixing, matching the footprint of earlier S-N35 production runs. If you are replacing an existing unit, the S-N35 is a direct drop-in replacement for all previous S-N35 variants. For integration with Mitsubishi MELSEC PLC output modules, standard 24VDC or 110/220VAC coil versions are available — specify your coil voltage when ordering.

Q3: What testing and inspection is performed before shipment?
All units are sourced from authorized distribution channels and undergo incoming inspection upon receipt at our Xiamen warehouse. Pre-shipment testing includes coil pull-in and drop-out voltage verification, main contact continuity and resistance testing, auxiliary contact functional verification, and visual inspection for housing integrity and terminal condition. A test report is available upon request for quality-critical procurement.

Q4: Can TOPNLMS support long-term or repeat supply of the S-N35 for MRO and spare parts programs?
Yes. TOPNLMS maintains standing inventory of the S-N35 and related S-N series contactors to support MRO (Maintenance, Repair & Operations) programs for industrial facilities with ongoing spare parts requirements. Blanket purchase orders, scheduled delivery agreements, and volume pricing are available. Contact [email protected] or call +86 18359293191 to discuss your facility’s spare parts strategy and establish a supply agreement.
