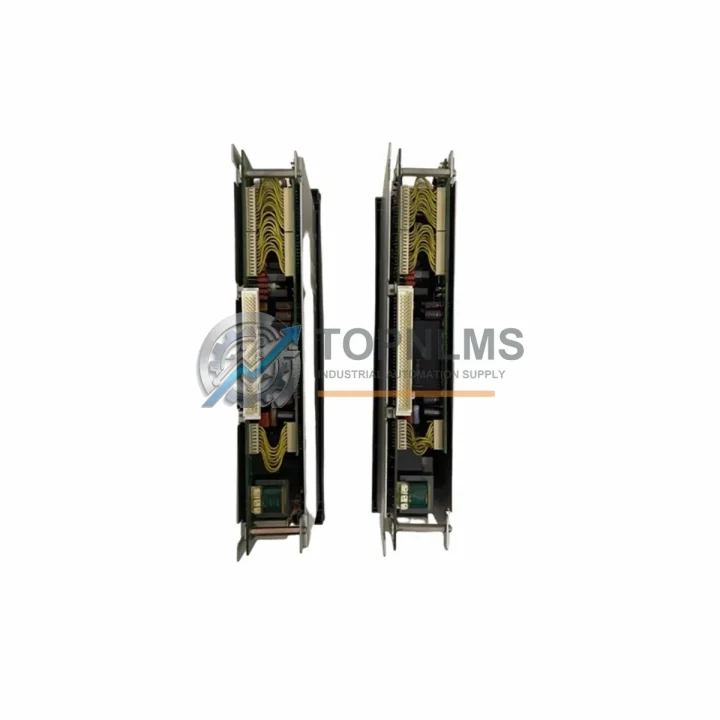

Mitsubishi PD21 PD21B Replacement for MELSEC-A Series

Product Overview

Mitsubishi PD21 PD21B Replacement for MELSEC-A Series: Smooth Transition & Legacy System Compatibility

The Mitsubishi Electric PD21 and PD21B are DC power supply modules designed for the MELSEC-A Series programmable logic controller platform — one of Mitsubishi’s most widely deployed industrial control architectures across manufacturing, automotive, food processing, and utilities sectors. As the MELSEC-A Series approaches end-of-life and spare parts become increasingly scarce, facilities running A2ACPU, A3NCPU, A1SCPU, or A2SCPU-based systems face mounting pressure to source reliable replacement power supply modules before unplanned downtime forces emergency shutdowns.

TOPNLMS maintains verified stock of the PD21 and PD21B to support exactly this scenario: a controlled, low-risk replacement that keeps your existing MELSEC-A rack operational without requiring a full system migration. Whether you are managing a single-line retrofit or maintaining a fleet of legacy controllers across multiple facilities, sourcing a direct-fit power supply replacement is the most cost-effective first step before committing to a full platform upgrade.

Compatibility Comparison Table

Seamless Upgrade Solutions

In most MELSEC-A retrofit projects, the power supply module is just one component in a broader system stabilization effort. When replacing the PD21 or PD21B, engineers typically audit the entire A-Series rack to assess the condition of adjacent modules. The A1SX40 and A1SY10 digital I/O modules are common co-replacements, as they share the same backplane and are subject to the same aging cycle as the power supply. If your system uses analog signal conditioning, the A68AD analog input module or A62DA analog output module may also require attention during the same maintenance window.

For facilities that rely on serial or network communication between the MELSEC-A CPU and upstream SCADA or DCS systems, the A1SJ71UC24-R4 serial communication module is frequently part of the same retrofit scope. If the site uses CC-Link for distributed I/O, the A1SJ61BT11 CC-Link master module should be inspected and potentially replaced alongside the power supply to ensure network stability after the intervention.

Where the MELSEC-A rack is housed in an aging control cabinet, engineers often take the opportunity to replace the A38B or A68B base unit if backplane corrosion or connector wear is detected. Programming and diagnostic access during commissioning typically requires a SC-09 RS-232 programming cable compatible with GX Developer, which should be on-hand before the replacement procedure begins. In systems where signal isolation between field devices and the PLC rack is required, DIN-rail-mounted signal isolators are recommended to protect the new power supply from transient surges common in older panel environments.

Retrofit Guidance FAQ

Q: Do I need to modify any wiring when replacing the PD21 with a new unit?
A: No. The PD21 and PD21B use a standard backplane edge connector. The replacement module seats directly into Slot 0 of the A-Series base unit. AC input wiring to the terminal block on the front of the module is identical — no rewiring of field I/O or signal cables is required.

Q: Will my existing GX Developer or GX Works2 program need to be modified?
A: No program changes are required. The power supply module does not hold any ladder logic or parameter data. After physical replacement, the CPU will resume normal operation using the program stored in the A-Series CPU module or memory cassette.

Q: Is the PD21B interchangeable with the PD21?
A: Yes, in most A-Series rack configurations the PD21 and PD21B are functionally interchangeable. Confirm your base unit model and input voltage specification before ordering to ensure the correct variant is selected.

Q: What communication protocols are affected by the power supply replacement?
A: None. The PD21/PD21B is a DC power supply module only. It does not participate in CC-Link, MELSECNET, RS-232, or Ethernet communication. All protocol configurations remain intact after replacement.

Q: How much physical space does the replacement require in the control cabinet?
A: The PD21 and PD21B occupy the standard power supply slot on A-Series base units. No additional DIN rail space or cabinet modification is required. The module dimensions are identical to the original, ensuring a direct fit without panel rework.

Q: What is the recommended procedure for minimizing downtime during replacement?
A: Power down the rack, remove the failed PD21/PD21B, seat the replacement module, restore AC input wiring, and power up. Total replacement time is typically under 30 minutes for a trained technician. Having the replacement module on-site before the scheduled maintenance window is the single most effective way to reduce downtime.

Warranty Assurance

Every PD21 and PD21B unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification to confirm output voltage stability and backplane connector integrity. If a unit exhibits any defect in materials or workmanship within the warranty period, TOPNLMS will arrange a replacement or provide technical support to resolve the issue.

Our standard lead time for in-stock units is 3–7 business days for international shipments from Xiamen, China, with express options available for urgent requirements. All units are packaged in anti-static protective packaging with individual labeling to ensure traceability. Purchase orders, proforma invoices, and commercial documentation for customs clearance are provided as standard.

For procurement teams managing planned maintenance schedules or building strategic spare parts inventory, TOPNLMS offers volume pricing and consolidated shipment options. Contact our technical sales team to discuss your specific MELSEC-A replacement requirements.
