Mitsubishi Q62P Replacement/Upgrade Solution for MELSEC-Q

Product Overview

Mitsubishi Q62P Replacement/Upgrade Solution for MELSEC-Q: Smooth Transition from Legacy Power Supply Systems

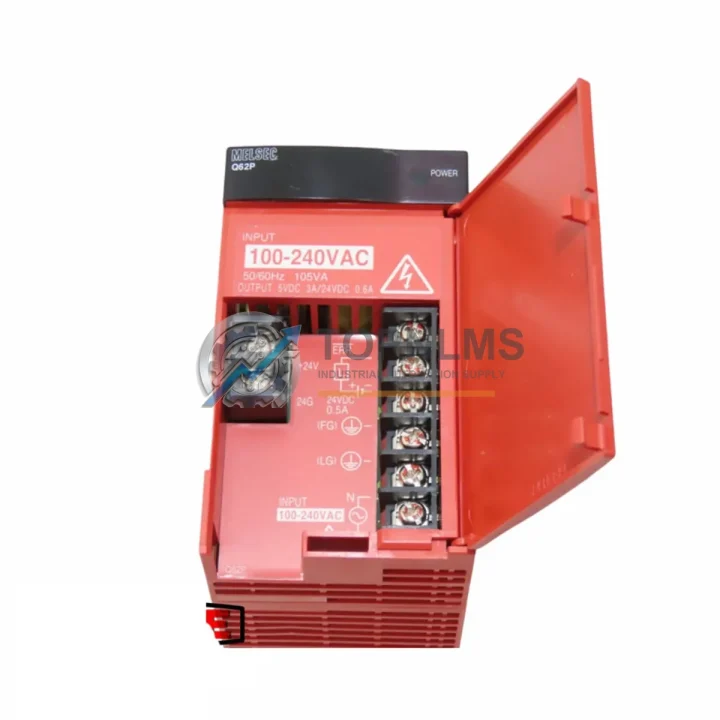

The Mitsubishi Electric Q62P is a 5VDC / 6A power supply module designed for the MELSEC-Q Series programmable logic controller platform. For facilities running aging Q-Series control systems — or those migrating from the earlier AnS/A Series or third-party PLC platforms — the Q62P represents a proven, drop-in upgrade path that preserves existing wiring infrastructure, rack geometry, and control cabinet space allocation. TOPNLMS maintains verified stock of the Q62P to support urgent replacement orders, planned maintenance shutdowns, and long-term spare parts programs.

Industrial sites that have operated Q61P or Q63P power supply modules in their MELSEC-Q base units will find the Q62P a compatible lateral replacement, offering higher output current headroom (6A vs. 3A on the Q61P) without requiring any modification to the Q33B, Q35B, Q38B, or Q312B main base units. The module slots directly into the power supply slot of any standard MELSEC-Q base, and the 100–240VAC wide-range input eliminates the need for external voltage conversion when migrating from legacy 100VAC-only installations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MELSEC-Q power supply migration rarely involves a single module in isolation. In practice, engineers replacing a Q62P are often simultaneously addressing adjacent components within the same control cabinet or rack assembly. The Q02UCPU and Q06UDEHCPU CPU modules mounted in the same base unit must be verified for firmware compatibility with the replacement power supply, particularly in multi-CPU configurations where the Q3MSCPU safety CPU may also be present.

On the I/O side, QX40 digital input modules and QY10 transistor output modules draw their logic power from the 5VDC bus supplied by the Q62P, making the power budget calculation critical before finalizing the replacement. Sites running QJ71E71-100 Ethernet communication modules or QJ71C24N serial communication modules should confirm total current draw across all installed modules does not exceed the 6A rated output of the Q62P — a calculation that is straightforward using Mitsubishi’s GX Works2 or GX Works3 system configuration tools.

For facilities migrating from the older AnS Series (e.g., A1S61P or A1S62P power supplies), the transition to the Q62P requires a base unit change to a MELSEC-Q compatible rack, but the field wiring to terminal blocks and the overall control cabinet footprint can typically be preserved. The Q68ADI analog input module and Q62DA analog output module are common additions during such migrations, enabling higher-resolution process control without expanding the cabinet envelope.

When the upgrade scope extends to the HMI layer, the GOT2000 Series GT2710-VTBA panel is a natural pairing with the MELSEC-Q platform, supporting direct CPU connection via USB or Ethernet without requiring a dedicated communication module. This combination is particularly effective in retrofit projects where the existing operator panel is being replaced alongside the PLC power supply.

Retrofit Guidance FAQ

Q: Can I replace a Q61P with a Q62P without modifying the base unit or field wiring?
A: Yes. The Q62P occupies the same physical power supply slot and uses the same AC input terminal block layout as the Q61P. No rewiring is required. The higher 6A output current rating provides additional headroom for expanded I/O configurations.

Q: Does the Q62P support CC-Link or MELSECNET/H communication?
A: The Q62P is a power supply module and does not participate in communication protocols. CC-Link master/local modules (e.g., QJ61BT11N) and MELSECNET/H modules operate independently on the backplane and are unaffected by the power supply replacement.

Q: Will replacing the power supply require re-downloading the PLC program?
A: No. The Q62P replacement does not affect the CPU module’s program memory. The program stored in the Q02UCPU or equivalent CPU module is retained in flash memory and does not require re-transfer after a power supply swap.

Q: What is the physical installation space requirement?
A: The Q62P occupies a single power supply slot (leftmost position) on any standard MELSEC-Q base unit. Its dimensions are identical to other Q-Series power supply modules, ensuring no cabinet modification is needed.

Q: Can the Q62P be used in a redundant power supply configuration?
A: Standard MELSEC-Q base units support a single power supply module. For redundant power configurations, the Q65B extension base with dual power supply slots and the Q62RP redundant power supply module should be evaluated as an upgrade path.

Warranty Assurance

Every Q62P unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification including output voltage stability testing, inrush current behavior check, and visual inspection for physical integrity. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. We support customers through the diagnosis process with technical documentation, wiring diagrams, and remote guidance where applicable.

For procurement teams managing planned maintenance schedules, TOPNLMS offers reserved stock arrangements and lead-time commitments for critical spare parts. Bulk orders for Q62P and associated MELSEC-Q components are eligible for volume pricing — contact our sales team for a formal quotation.

Fast international shipping is available from our Xiamen warehouse, with DHL Express, FedEx International Priority, and sea freight options to support both emergency replacement and scheduled replenishment orders.
