Mitsubishi GU-G04 GCU04AB-130 Ruggedized Thyristor Gate Control Board

Product Overview

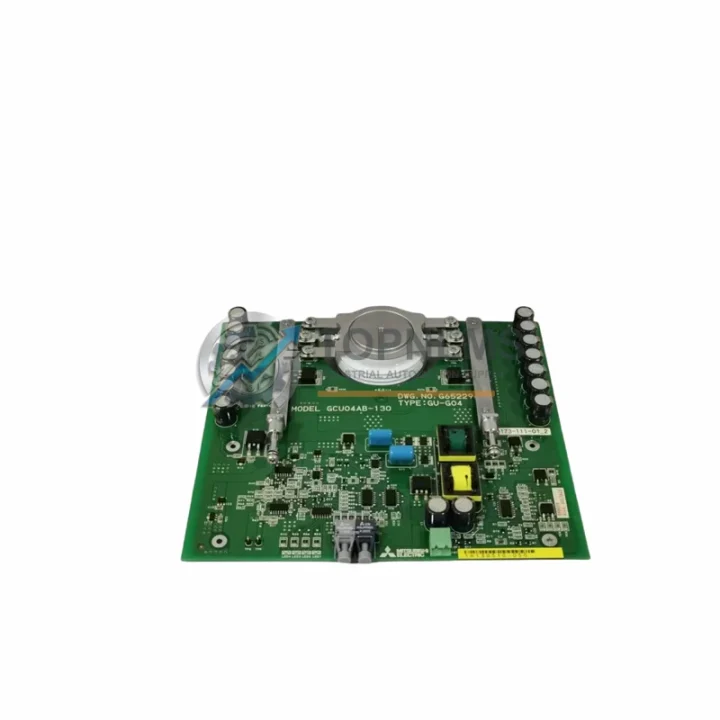

Mitsubishi GU-G04 GCU04AB-130 Ruggedized Thyristor Gate Control Board for Harsh Industrial Environments

The Mitsubishi Electric GU-G04 GCU04AB-130 (part number 80173-111-01-2) is a precision-engineered thyristor gate control board designed for continuous, fault-tolerant operation in the most demanding industrial environments. Built to Mitsubishi Electric’s exacting standards for power electronics, this board delivers stable, interference-resistant gate triggering for thyristor-based drive systems — even under conditions of high ambient temperature, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference (EMI).

In heavy industrial settings — including steel mills, aluminum smelters, mining hoists, oil and gas compression stations, and large-scale water treatment facilities — thyristor converters must operate without interruption. The GCU04AB-130 board is the critical interface between the control logic and the thyristor power stack, ensuring precise phase-angle firing under all load conditions. Its robust PCB construction, conformal coating tolerance, and shielded signal paths make it a trusted component in high-availability drive systems where unplanned downtime carries significant operational and safety consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The GU-G04 GCU04AB-130 does not operate in isolation — it is one critical node within a broader Mitsubishi Electric drive and control architecture. In a typical heavy-duty DC drive cabinet, this gate control board works in close coordination with the Mitsubishi FR-A800 Series inverter for upstream AC-to-DC conversion management, and interfaces with Mitsubishi MELSEC Q-Series PLC modules (such as the QX40 digital input module and QY40P digital output module) that provide supervisory control signals. The integrity of the gate firing pulses depends on clean, stable 24 VDC logic power — typically supplied by a Mitsubishi PS-15 or compatible industrial DIN-rail power supply — and any ripple or dropout on this rail can cause erratic thyristor triggering or nuisance trips.

In installations where the drive system is integrated into a safety-rated control loop, the GCU04AB-130 is often paired with Mitsubishi MELSEC WS-Series safety PLC modules or third-party safety relays to enforce emergency stop (E-stop) and safe torque-off (STO) functions. Communication between the drive controller and the plant DCS is commonly handled via Mitsubishi QJ71MB91 MELSEC Modbus/TCP communication modules or CC-Link IE Field network interface cards, ensuring that the gate control board’s operational status is continuously monitored by the SCADA layer.

Terminal integrity is equally important: loose or corroded connections on the gate pulse output terminals can introduce timing jitter that degrades thyristor commutation. Facilities typically use Mitsubishi-compatible Phoenix Contact or Weidmüller spring-clamp terminal blocks rated for the relevant current and voltage class to ensure long-term connection reliability in vibrating environments. Surge protection on the control signal lines — via DEHN or OBO Bettermann DIN-rail surge protection devices — further shields the GCU04AB-130 from transient overvoltages induced by nearby high-power switching events on the same bus.

Application in Critical Infrastructure

The GU-G04 GCU04AB-130 thyristor gate control board has a proven service record across some of the world’s most demanding industrial sectors:

Steel & Metals Processing: In rolling mill main drive systems, thyristor converters controlled by the GCU04AB-130 regulate the armature current of large DC motors driving roughing and finishing stands. The board must maintain precise firing angle control despite the intense electromagnetic noise generated by arc furnaces, bus bars carrying tens of kiloamperes, and the mechanical shock of billet impact. Any gate control failure in this environment results in immediate production stoppage and potential motor damage.

Mining & Hoisting: Underground mine hoists and conveyor drives rely on thyristor-based DC drives for their controllability and regenerative braking capability. The GCU04AB-130 operates in environments with coal dust, high humidity, and significant vibration from blasting and heavy machinery. Its robust construction ensures that gate pulses remain synchronized with the AC supply even under these conditions, preventing dangerous overspeed or uncontrolled descent events.

Oil, Gas & Petrochemical: Compressor and pump drives in refineries and LNG terminals demand continuous availability — often 8,760 hours per year without planned maintenance windows. The GCU04AB-130 supports this requirement through its high mean time between failures (MTBF) design philosophy. Facilities maintain on-site spare boards to enable rapid swap-out during the narrow maintenance windows available in continuous-process plants.

Power Generation & Utilities: In hydroelectric and thermal power stations, excitation systems for synchronous generators frequently employ thyristor converters. The gate control board must respond to AVR (automatic voltage regulator) commands within microseconds to maintain grid voltage stability. The GCU04AB-130’s low-latency gate triggering architecture is well-suited to this application.

Water & Wastewater Treatment: Large pump stations and aeration blower drives in municipal water infrastructure operate continuously, often in humid, chemically aggressive environments. The GCU04AB-130’s tolerance for high ambient humidity and its compatibility with sealed control cabinet designs make it a reliable choice for these installations.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact [email protected] with your order number and a description of the fault. We will arrange return shipping and provide a tested replacement or full refund within 5–10 business days of receiving the defective unit.

Q2: How is each unit tested before shipment?
Every GU-G04 GCU04AB-130 board is individually powered on and subjected to functional verification testing before packaging. This includes gate pulse output verification, logic power rail checks, and visual inspection for PCB damage, component integrity, and connector condition. Units that do not pass all test criteria are quarantined and not shipped. A test record is retained for each unit dispatched.

Q3: Is this board compatible with my existing Mitsubishi thyristor converter unit?
The GCU04AB-130 is the OEM-specified gate control board for Mitsubishi GU-G04 series thyristor converter units. It is a direct plug-in replacement for the original board in these units. If you are unsure whether this board is compatible with your specific drive model or revision, please provide your drive’s full nameplate data and existing board part number to our technical team at [email protected] — we will confirm compatibility before you order.

Q4: Can you support long-term or repeat supply for maintenance programs?
Yes. TOPNLMS maintains stock of critical Mitsubishi Electric spare parts including GCU04AB-series boards to support planned maintenance programs, annual shutdown schedules, and emergency breakdown requirements. We can provide framework pricing for multi-unit orders and reserved stock arrangements for facilities that require guaranteed availability. Contact us to discuss your site’s spare parts strategy and annual consumption requirements.
