Mitsubishi GU-D08 80173-109-01 Original Industrial Spare GU Compatible: System Stability and Industrial Spare Parts Maintenance Value

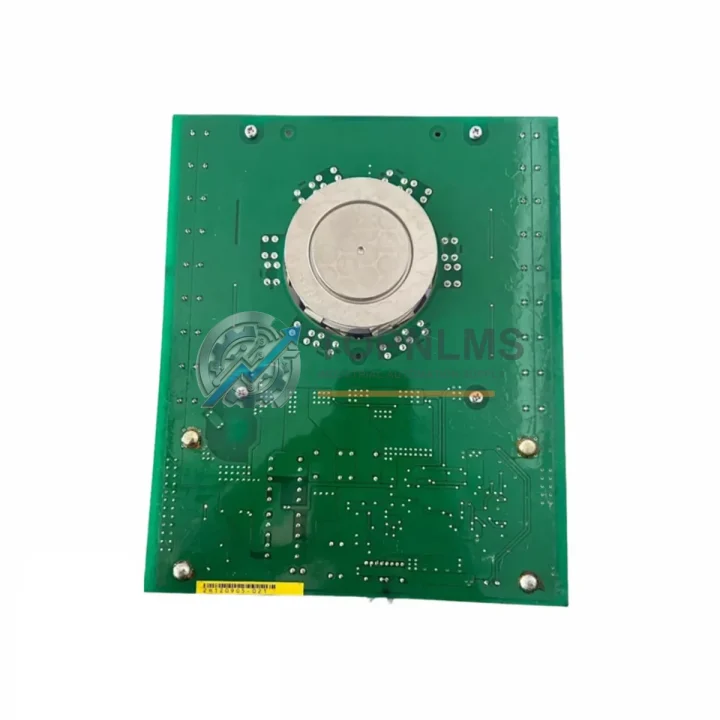

In high-demand industrial environments where continuous production is non-negotiable, the integrity of every drive and control component directly determines uptime. The Mitsubishi GU-D08 (P/N: 80173-109-01) is an original Thyristor Gate Drive Board engineered for Mitsubishi Electric’s GU Series drive systems. This board serves as the critical interface between the control logic and the thyristor power stack, generating precise gate pulses that regulate AC-to-DC conversion in industrial motor drive and power conversion applications. Sourced directly from Mitsubishi Electric’s original manufacturing line, this component carries the full engineering tolerances, material specifications, and firmware compatibility required for seamless drop-in replacement in GU Series drive cabinets.

For maintenance engineers managing aging drive systems, sourcing an original GU-D08 gate drive board eliminates the risk of compatibility mismatches that arise from aftermarket substitutes. The board’s firing angle control circuitry is factory-calibrated to match the GU Series thyristor stack, ensuring stable commutation, reduced harmonic distortion, and protection against misfiring events that can cascade into costly motor or transformer damage. Whether you are executing a planned overhaul during a scheduled maintenance window or responding to an unplanned drive fault, having this board in your spare parts inventory is a direct investment in production continuity.

Critical Technical Specs Table

Preventive Maintenance Strategy

A thyristor gate drive board failure rarely occurs in isolation. In GU Series drive cabinets, the gate drive board operates within a tightly coupled electrical ecosystem. When scheduling a maintenance inspection or responding to a drive fault, experienced engineers treat the GU-D08 replacement as the starting point of a broader system health check rather than a standalone fix.

Begin by inspecting the thyristor power modules themselves — if the gate drive board has been operating under abnormal firing conditions due to a degraded board, the thyristors may have sustained thermal stress. Simultaneously, check the DC bus capacitor bank for signs of bulging, electrolyte leakage, or elevated ESR, as capacitor degradation is a common root cause of drive instability that can accelerate gate drive board wear.

The GU Series snubber circuit boards (RC snubber assemblies) should be inspected alongside the gate drive board, as these components suppress voltage transients across the thyristor stack. A failed snubber can expose the gate drive circuitry to destructive voltage spikes. While the cabinet is open, verify the condition of the drive control board (GU-C series) — the logic interface between the PLC or DCS controller and the gate drive stage — since intermittent faults on the control board can mimic gate drive failures and lead to misdiagnosis.

For facilities running Mitsubishi MELSEC PLC systems in conjunction with GU Series drives, it is advisable to inspect the MELSEC Q Series or A Series I/O modules that provide speed reference and enable signals to the drive. Degraded analog output modules can introduce reference signal noise that stresses the gate drive’s firing angle calculation circuitry over time. Similarly, communication modules such as the QJ71C24 serial interface or CC-Link master modules should be verified for stable data transmission, as communication dropouts can trigger drive faults that are incorrectly attributed to the gate drive board.

Do not overlook the power supply modules feeding the drive’s control circuitry. A sagging 24VDC control power supply — such as a Mitsubishi Q61P or equivalent — can cause erratic gate pulse timing. Inspect terminal blocks and wiring harnesses within the control cabinet for loose connections, insulation degradation, or corrosion, particularly on the gate signal cables connecting the drive board to the thyristor stack. Finally, review the condition of any signal isolators or surge protection modules on the analog reference and feedback signal lines, as these are frequently overlooked during routine maintenance but play a critical role in protecting sensitive drive electronics from field-side transients.

A comprehensive inspection covering these related components — thyristor modules, snubber boards, DC bus capacitors, control boards, I/O modules, communication modules, power supplies, terminal blocks, and signal isolators — transforms a reactive repair into a proactive maintenance event that significantly extends the operational life of the entire drive system.

Strategic Replacement Solutions

The GU-D08 / 80173-109-01 is an original Mitsubishi Electric component, making it the definitive replacement for any GU Series drive cabinet requiring gate drive board renewal. Unlike third-party alternatives that may replicate the board’s physical form factor but deviate in gate pulse timing parameters, rise time characteristics, or thermal management design, the original GU-D08 maintains full electrical compatibility with the GU Series thyristor stack without requiring any parameter recalibration or drive re-commissioning.

For facilities managing legacy GU Series installations that are no longer in active production by Mitsubishi Electric, maintaining a stock of original spare boards is the most effective strategy for extending system service life. The cost of a single unplanned production stoppage — including lost output, emergency labor, and expedited freight for a replacement part — typically exceeds the cost of maintaining a small buffer stock of critical drive components by a significant margin. Procurement teams are advised to evaluate their mean time between failures (MTBF) data for existing GU Series drives and establish a reorder point that ensures at least one spare GU-D08 board is available on-site at all times.

When replacing the GU-D08 in the field, follow Mitsubishi Electric’s recommended ESD handling procedures, verify that the replacement board’s revision level is compatible with the installed drive firmware, and conduct a no-load test cycle before returning the drive to full production load. Document the replacement in your maintenance management system (CMMS) with the board’s serial number and installation date to support future warranty claims and maintenance scheduling.

Support FAQ

Q1: Is the GU-D08 / 80173-109-01 an original Mitsubishi Electric component or an aftermarket reproduction?
This is an original Mitsubishi Electric GU-D08 Thyristor Gate Drive Board (P/N: 80173-109-01), sourced from authorized supply channels. It is not an aftermarket reproduction or third-party compatible substitute.

Q2: What warranty coverage is provided, and what does it include?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is functionally tested before dispatch to verify operational integrity prior to shipment.

Q3: How do I verify compatibility with my existing GU Series drive cabinet before installation?
Cross-reference the part number 80173-109-01 and the board designation GU-D08 against your drive cabinet’s wiring diagram and spare parts list. If your drive documentation references the GU-D08 as the gate drive assembly, this board is the correct replacement. For revision-level compatibility questions, contact our technical team with your drive cabinet’s full model number and serial number.

Q4: What is the typical lead time and shipping arrangement for this component?
In-stock units are dispatched within 1–3 business days of order confirmation. We ship worldwide with full export documentation. For urgent maintenance requirements, expedited shipping options are available — contact us directly to arrange priority dispatch.
