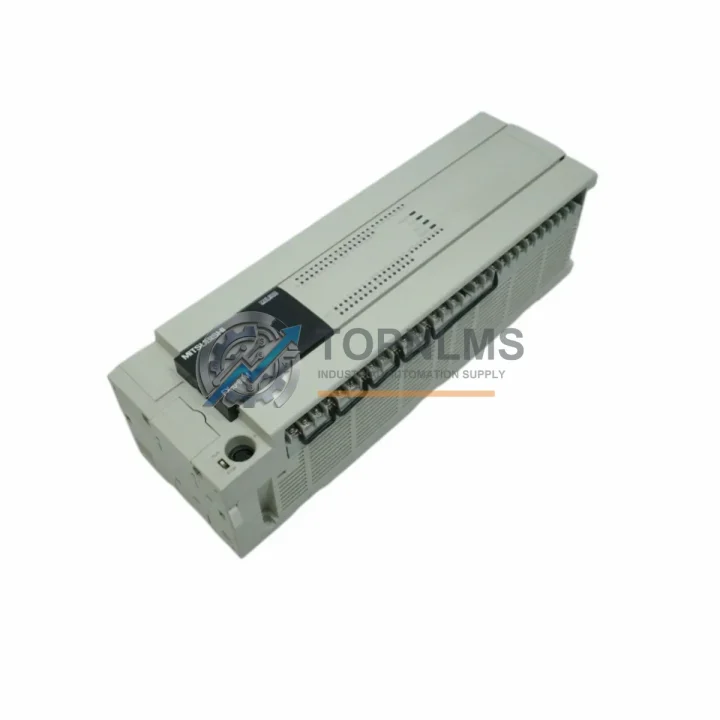

Mitsubishi FX3U-80MR/ES Original Industrial Spare FX3U Compatible

Product Overview

Mitsubishi FX3U-80MR/ES Original Industrial Spare — FX3U Series: System Stability & Industrial Maintenance Value

The Mitsubishi FX3U-80MR/ES is an 80-point relay output compact PLC from Mitsubishi Electric’s FX3U Series (MELSEC Family), powered by AC 100–240V supply. Engineered for demanding industrial environments, it serves as a cornerstone control component across automotive assembly lines, food & beverage processing, packaging machinery, and general manufacturing control cabinets. For maintenance engineers and procurement teams managing aging control systems, securing an original FX3U-80MR/ES spare unit is a proactive investment in system continuity — whether responding to an unplanned shutdown, executing a scheduled overhaul, or building a strategic spare parts inventory. Every unit supplied by TOPNLMS is function-tested before shipment and covered by a 12-month warranty, ready for immediate field deployment.

Critical Technical Specs

Preventive Maintenance Strategy

When an FX3U-80MR/ES is flagged for replacement during a scheduled maintenance window or emergency shutdown, experienced maintenance teams understand that the PLC itself is rarely the only component requiring attention. A systematic inspection of the entire control cabinet during the same maintenance event significantly reduces the risk of repeat failures and secondary unplanned downtime.

Begin by verifying the integrity of any FX3U-232ADP or FX3U-485ADP serial communication adapters connected to the main unit. These modules are frequently overlooked during PLC swaps but are critical for SCADA connectivity and HMI communication. At the same time, inspect the FX3U-4AD analog input module and FX3U-4DA analog output module if the system handles process variables such as temperature, pressure, or flow signals — these expansion modules share the same backplane bus and can exhibit intermittent faults when the main CPU is degraded.

Check the FX3U-16EX digital input expansion module and FX3U-16EYR relay output expansion module for contact wear and terminal corrosion, particularly in high-cycle applications. Relay output contacts in both the main unit and expansion modules have finite mechanical lifespans and should be evaluated against cycle count records during any planned overhaul. Corroded or loose connections on the I/O terminal strip — including terminal blocks and wiring ferrules — are a leading cause of nuisance faults in relay-output PLCs operating in humid or vibration-prone environments.

Do not overlook the 24VDC power supply unit feeding the PLC input circuit. A drifting or undersized power supply is a common root cause of intermittent PLC faults that are misdiagnosed as CPU failures. Pairing the FX3U-80MR/ES replacement with a verified, load-rated power supply ensures the new unit operates within its rated input voltage range from commissioning day one.

For systems using GOT2000 series HMI panels — such as the GT2107 or GT2310 — communicating with the FX3U over RS-422, verify communication cable integrity and connector seating before closing the cabinet. A degraded HMI-PLC link can cause false fault indications that complicate post-replacement commissioning. If the cabinet includes an FX3U-ENET Ethernet communication module for remote monitoring or MES integration, confirm firmware compatibility with the replacement CPU revision before returning the system to production.

Finally, if the system uses a FX3U-32MT/ES transistor output expansion for high-frequency pulse outputs — such as servo drive positioning or stepper motor control — inspect the output transistor circuit integrity and verify the pulse output wiring is undamaged. Addressing all associated components during a single maintenance window maximizes the return on each planned shutdown and extends the effective service life of the entire control assembly.

Strategic Replacement Solutions

The FX3U-80MR/ES is a proven direct replacement for aging FX2N-80MR and FX1N-60MR units in legacy Mitsubishi control systems. The FX3U platform offers backward-compatible I/O terminal layouts in most standard configurations, allowing maintenance teams to execute a like-for-like swap with minimal rewiring — a critical advantage when minimizing production downtime is the primary objective. Mitsubishi’s GX Works2 and GX Developer software both support program conversion from FX2N and FX1N instruction sets to FX3U, reducing recommissioning time significantly.

For facilities managing a mixed fleet of FX-series PLCs, standardizing on the FX3U-80MR/ES as the primary spare reduces the number of unique SKUs held in the maintenance storeroom. A single unit can cover multiple machine types, simplifying inventory management and reducing carrying costs. Its expanded program memory — up to 64K steps with a FX3U-FLROM-16 memory cassette — and high-speed counter capability provide headroom for future control logic upgrades without requiring a platform change.

In applications where the original system used a transistor output variant such as the FX3U-80MT/ES, the relay output version can serve as a functional interim replacement for non-high-frequency output circuits, providing a path to restore production while the correct variant is sourced. Relay outputs are rated for both AC and DC loads, making the FX3U-80MR/ES more versatile across mixed-voltage control panels than transistor-output alternatives.

All units supplied by TOPNLMS are sourced as original Mitsubishi Electric components, inspected and function-tested prior to dispatch, and covered by a 12-month warranty. Fast international shipping is available, with most orders dispatched within 1–3 business days. Contact our team for bulk spare parts pricing and multi-unit procurement support.

Support FAQ

Q1: Is the FX3U-80MR/ES compatible with my existing FX3U expansion modules?
Yes. The FX3U-80MR/ES is fully compatible with all standard FX3U series expansion modules, including analog I/O modules (FX3U-4AD, FX3U-4DA), digital expansion modules (FX3U-16EX, FX3U-16EYR), and communication adapters (FX3U-232ADP, FX3U-485ADP, FX3U-ENET). Confirm your existing module firmware versions are within the supported range for the replacement CPU revision before commissioning.

Q2: How is the unit tested and what does the 12-month warranty cover?
Each FX3U-80MR/ES unit undergoes a functional power-on test and I/O verification before dispatch. Units are inspected for physical integrity, connector condition, and firmware operability. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, from the date of shipment. Warranty claims are supported with direct technical assistance from our team.

Q3: Can this unit replace an FX2N-80MR in an existing panel without rewiring?
In most cases, yes. The FX3U-80MR/ES shares a similar I/O terminal layout with the FX2N-80MR, and Mitsubishi’s GX Works2 supports program conversion between FX2N and FX3U instruction sets. A wiring and program compatibility review is recommended before final commissioning, particularly for systems using special function modules or high-speed counter wiring specific to the FX2N platform.

Q4: What spare parts stocking strategy do you recommend for FX3U-based systems?
For facilities with three or more FX3U-based machines, we recommend holding a minimum of one FX3U-80MR/ES as a hot spare, alongside at least one 24VDC power supply unit and one set of commonly used expansion modules — typically an analog I/O module and a communication adapter. This configuration covers the majority of unplanned failure scenarios and enables same-shift restoration of production without waiting for emergency procurement cycles.
