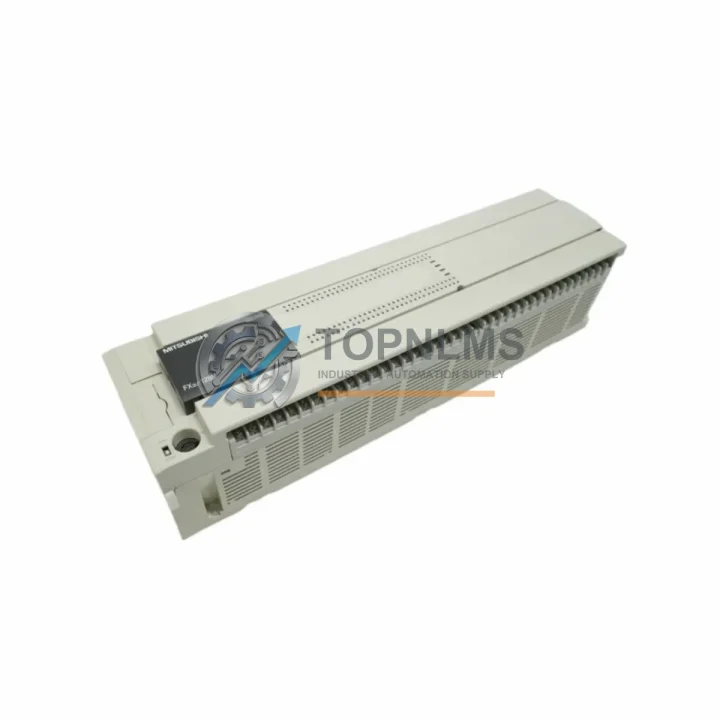

Mitsubishi FX3U-128MR/ESS Original Industrial Spare FX3U Compatible

Product Overview

Mitsubishi FX3U-128MR/ESS Original Industrial Spare FX3U Compatible: System Stability and Industrial Spare Parts Maintenance Value

The Mitsubishi FX3U-128MR/ESS is a high-performance 128-point relay output programmable logic controller from Mitsubishi Electric’s FX3U series — one of the most widely deployed compact PLC platforms in global manufacturing, automotive assembly, food processing, and discrete automation environments. With built-in Ethernet connectivity, this unit supports seamless integration into modern SCADA and MES architectures while maintaining full backward compatibility with legacy FX-series control cabinets. Sourcing an original FX3U-128MR/ESS spare is a critical step in any proactive maintenance strategy, ensuring that your production line can recover from unplanned downtime within hours rather than days.

In industrial facilities where the FX3U platform underpins conveyor control, packaging lines, injection molding machines, or CNC auxiliary systems, the availability of a verified original replacement unit is the single most effective insurance against extended outages. The FX3U-128MR/ESS delivers 64 DC input points and 64 relay output points, supporting a broad range of field devices including solenoid valves, motor starters, indicator lamps, and safety relays. Its relay output architecture makes it particularly well-suited for mixed-voltage load environments where transistor outputs would require additional isolation stages.

Critical Technical Specs

Preventive Maintenance Strategy

A disciplined preventive maintenance program for any FX3U-based control system extends well beyond the CPU unit itself. When scheduling a planned inspection or responding to an unplanned shutdown involving the FX3U-128MR/ESS, maintenance engineers should treat the event as an opportunity to audit the entire control cabinet. The FX3U-128MR/ESS operates within an ecosystem of interdependent components, and the failure of any one element can cascade into broader system instability.

Begin with the power supply module. The FX3U-128MR/ESS draws power from the AC mains, and a degraded or undersized power supply — such as an aging Mitsubishi A1S61PN or a third-party DIN rail PSU — can introduce voltage ripple that manifests as intermittent CPU faults or spurious output activations. Replacing or bench-testing the power supply during the same maintenance window as the CPU swap eliminates a common root cause of recurring faults.

Next, inspect the expansion I/O modules connected to the FX3U base unit. The FX3U-128MR/ESS supports a wide range of FX3U-series expansion modules, including digital I/O blocks such as the FX3U-16EX and FX3U-16EYR, as well as analog input modules like the FX3U-4AD and analog output modules such as the FX3U-4DA. During a relay output PLC replacement, it is standard practice to verify that all expansion connectors are seated correctly and that the ribbon cables or bus connectors show no signs of oxidation or mechanical stress.

Communication integrity is equally critical. The built-in Ethernet port of the FX3U-128MR/ESS connects to upstream SCADA systems, HMI panels, or MES gateways. If the facility uses an FX3U-232ADP-MB or FX3U-485ADP-MB serial communication adapter for legacy device integration, these adapters should be inspected and tested alongside the main CPU. A faulty communication adapter can prevent the replacement PLC from establishing network sessions, delaying restart even after a successful hardware swap.

Terminal blocks and wiring harnesses within the control cabinet deserve close attention during any FX3U-128MR/ESS replacement. Loose or corroded terminal connections on the input wiring — particularly on 24 VDC sensor circuits — can generate false input signals that corrupt program execution. Inspect and re-torque all terminal screws, and consider replacing aged terminal strips with new DIN rail terminal blocks rated for the application’s current and voltage requirements.

For facilities running GOT2000-series HMI panels such as the GT2107-WTSD or GT2310-VTBA alongside the FX3U-128MR/ESS, verify that the HMI project file is backed up and that the communication parameters match the replacement PLC’s Ethernet IP configuration. An HMI that cannot reconnect to the new PLC will prevent operators from monitoring or controlling the process, even if the PLC itself is functioning correctly.

Finally, review the status of any FX3U-series special function modules installed in the system, such as positioning modules (FX3U-20SSC-H) or high-speed counter modules (FX3U-2HSY-ADP). These modules retain configuration data independently of the CPU, but their parameter files should be archived and verified as part of the replacement procedure to ensure seamless recommissioning.

Strategic Replacement Solutions

The FX3U-128MR/ESS is a direct replacement for earlier FX2N-128MR units in applications where the control program has been migrated or recompiled for the FX3U instruction set. For facilities still operating FX2N-based systems, upgrading to the FX3U-128MR/ESS provides a significant improvement in processing speed, memory capacity, and communication capability without requiring changes to the physical cabinet layout or field wiring. The relay output configuration is pin-compatible with the FX2N-128MR, simplifying the mechanical swap.

In scenarios where the original FX3U-128MR/ESS has reached end-of-life or is no longer available through standard distribution channels, sourcing a verified original unit from a specialist industrial spare parts supplier is the most reliable path to system restoration. Counterfeit or refurbished units without traceable provenance introduce significant risk: undisclosed firmware versions, degraded relay contact life, and non-compliant EMC performance can all compromise system reliability and safety certification.

For maintenance planners managing multiple FX3U-based lines, establishing a strategic spare inventory of at least one FX3U-128MR/ESS per production cell — combined with a documented commissioning procedure and archived PLC program backup — reduces mean time to repair (MTTR) from days to under two hours. This approach is particularly valuable in high-throughput environments where each hour of downtime carries significant production cost.

When integrating the FX3U-128MR/ESS into a modernized control architecture, the built-in Ethernet port enables direct connection to Mitsubishi’s iQ Works engineering environment and supports SLMP (Seamless Message Protocol) for data exchange with MES systems, eliminating the need for additional communication adapters in many retrofit applications.

Support FAQ

Q1: Is the FX3U-128MR/ESS compatible with existing FX3U expansion modules and special function units?
Yes. The FX3U-128MR/ESS is fully compatible with all FX3U-series expansion I/O modules, analog modules, communication adapters, and special function modules. It also supports FX3UC-series expansion blocks via the appropriate bus connector. Verify the total I/O count and power budget before adding expansion modules to ensure the base unit’s internal power supply is not overloaded.

Q2: What pre-shipment testing is performed on each unit?
Each FX3U-128MR/ESS unit undergoes functional verification prior to dispatch, including power-on self-test, I/O point continuity check, Ethernet port communication test, and relay output actuation verification. Units are shipped in anti-static packaging with protective covers on all connectors. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: How do I verify the firmware version of a replacement FX3U-128MR/ESS before installation?
Connect the unit to GX Works2 or GX Works3 via Ethernet or USB and navigate to the PLC diagnostics menu to read the firmware version. Cross-reference this with the version required by your existing program — particularly if the program uses advanced instructions or special function module parameters that were introduced in specific firmware releases. Contact our technical support team if a specific firmware version is required.

Q4: What is the recommended spare parts inventory strategy for FX3U-based production lines?
For critical production lines, maintain at least one FX3U-128MR/ESS CPU unit, one matched power supply module, and one set of expansion I/O modules as on-site cold spares. Archive the PLC program, HMI project files, and network configuration parameters in a secure, version-controlled location. Review and rotate spare inventory every 24–36 months to ensure units have not exceeded their recommended storage life. For multi-line facilities, a centralized spare pool with documented allocation procedures reduces total inventory cost while maintaining acceptable MTTR targets.
