Mitsubishi FR-BU-H15K Original Industrial Spare FR-A500 Compatible

Product Overview

Mitsubishi FR-BU-H15K Original Industrial Spare: System Stability & Maintenance Value

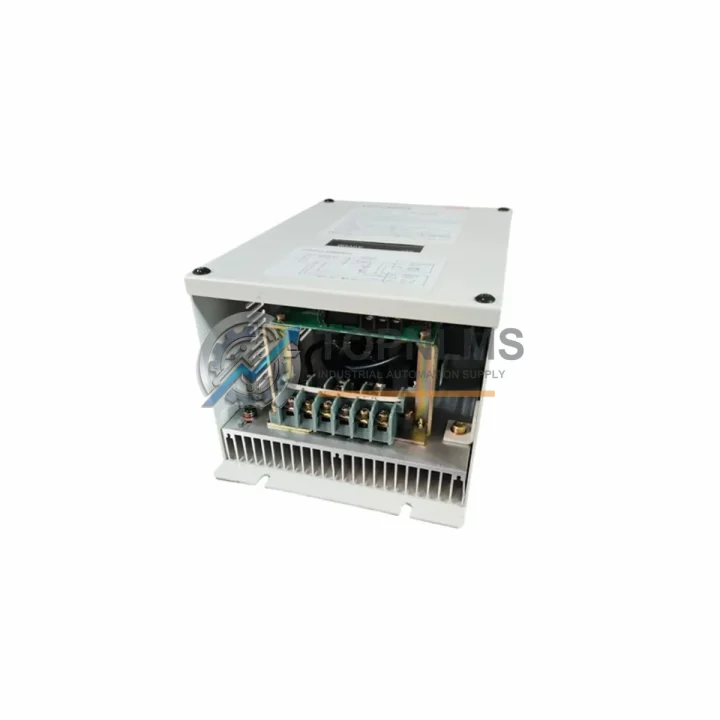

The Mitsubishi Electric FR-BU-H15K is an original dynamic braking unit engineered specifically for the FR-A500 series variable frequency drive platform at 15kW. In industrial environments where motor deceleration control is critical — overhead cranes, hoists, centrifuges, winding machines, and high-inertia conveyor systems — the FR-BU-H15K provides the essential energy dissipation pathway that protects both the drive and the motor from regenerative overvoltage faults. Sourced directly from Mitsubishi Electric’s authorized supply chain, every unit stocked at TOPNLMS is an original spare, not a substitute or aftermarket equivalent.

For maintenance engineers managing aging FR-A500 installations, the FR-BU-H15K represents one of the most strategically important spare parts in the control cabinet. When a dynamic braking unit fails, the VFD typically trips on overvoltage (OV) fault during deceleration, forcing an emergency stop and unplanned downtime. Having a verified original FR-BU-H15K on the shelf eliminates the multi-week lead time that often accompanies emergency procurement of legacy drive components, allowing your team to restore production within hours rather than days.

Critical Technical Specs

Preventive Maintenance Strategy

A dynamic braking unit does not operate in isolation. The FR-BU-H15K is one node in a broader energy management and motor control circuit, and a disciplined preventive maintenance program should treat the entire FR-A500 drive system as an integrated assembly. When scheduling a planned inspection or replacement of the FR-BU-H15K, experienced maintenance teams use the opportunity to audit the condition of adjacent components that share the same thermal and electrical stress environment.

The FR-A540-15K (or FR-A520-15K for 200V class) main inverter unit is the primary companion to the FR-BU-H15K — if the braking unit has reached end-of-life, the drive itself warrants a thorough inspection of its DC bus capacitors, IGBT modules, and cooling fan. Speaking of cooling, the FR-A500 series cooling fan assembly is a high-wear consumable that should be replaced on a 3–5 year cycle regardless of apparent condition; fan failure is one of the leading causes of thermal shutdown in legacy drives.

The FR-BU-H15K must be paired with a correctly rated braking resistor (such as the Mitsubishi FR-ABR-H15K or equivalent) — inspecting the resistor for thermal discoloration, cracked elements, or degraded resistance values is essential during any braking unit replacement. Simultaneously, check the DC bus wiring and P/PR terminal connections: loose or corroded connections at these terminals are a common root cause of intermittent OV faults that are often misdiagnosed as braking unit failure.

Within the same control cabinet, the FR-A500 series input AC reactor (e.g., FR-HAL-H15K) and output AC reactor (FR-HAL series) should be inspected for insulation integrity and connection tightness. These components protect the drive from supply-side harmonics and output-side dV/dt stress — both of which accelerate capacitor aging in the main drive. If your installation includes a Mitsubishi FR-F500 or FR-E500 series drive in adjacent panels, those units share many of the same spare part strategies and benefit from the same scheduled inspection cycle.

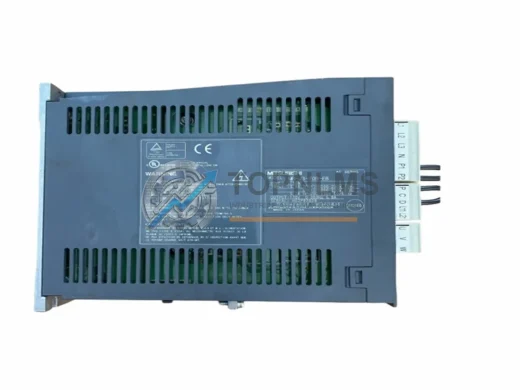

For facilities running Mitsubishi MELSEC PLC-based control systems — such as the Q series (QD75, Q02CPU) or iQ-R series (R04CPU) — the FR-A500 drive is typically integrated via CC-Link or PROFIBUS communication modules. During a drive maintenance window, verify the communication module firmware, cable integrity, and termination resistor status. A Mitsubishi MR-J4 or MR-J3 servo amplifier in the same panel should also be checked for alarm history and battery backup status if absolute encoders are in use. Finally, review the condition of the terminal block assemblies and control wiring throughout the cabinet — insulation degradation and loose terminals are silent contributors to intermittent faults that become critical failures during peak production.

Strategic Replacement Solutions

The FR-A500 series has been in service for over two decades, and Mitsubishi Electric has progressively transitioned its active product line toward the FR-A800 and FR-F800 platforms. This creates a well-documented challenge for maintenance managers: the installed base of FR-A500 drives remains large, but procurement of original spare parts through standard distribution channels is increasingly difficult and subject to extended lead times.

TOPNLMS addresses this gap by maintaining verified original stock of FR-A500 series components — including the FR-BU-H15K — sourced through authorized channels and held in climate-controlled storage. Each unit undergoes functional verification and visual inspection before dispatch. This approach allows facilities to extend the operational life of their FR-A500 installations by 5–10 years beyond what standard distribution availability would otherwise permit, deferring the significant capital expenditure of a full drive system upgrade.

For sites where a full upgrade to the FR-A800 platform is planned, the FR-BU-H15K can serve as a bridge solution: maintaining production continuity on the existing FR-A500 system while the upgrade project is scoped, budgeted, and scheduled. The FR-A800 series uses a different braking unit interface (FR-BU2 series), so the FR-BU-H15K is not forward-compatible — but its role as a production-continuity spare during the transition period is well established in industrial maintenance practice.

Replacement of the FR-BU-H15K is a straightforward field procedure for qualified electrical maintenance personnel: isolate the drive, discharge the DC bus (minimum 10 minutes after power-off), disconnect the P and PR terminal leads, remove the mounting hardware, install the new unit, reconnect terminals with specified torque, and restore power. Total replacement time is typically under 30 minutes, making the FR-BU-H15K one of the most efficient spare parts investments available for FR-A500 system maintenance.

Support FAQ

Q1: Is the FR-BU-H15K compatible with all FR-A500 series drives at 15kW?
The FR-BU-H15K (H-suffix) is designed for the 400V class FR-A540-15K drive. For 200V class FR-A520-15K applications, the correct unit is the FR-BU-15K (without H-suffix). Always verify the voltage class of your installed drive before ordering. TOPNLMS technical support can assist with compatibility confirmation prior to purchase.

Q2: What is the warranty coverage and how are units tested before shipment?
All FR-BU-H15K units supplied by TOPNLMS carry a 12-month warranty from the date of dispatch. Each unit is visually inspected and functionally verified prior to packaging. Units are shipped in original or equivalent protective packaging with anti-static precautions. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q3: How should I manage FR-BU-H15K inventory for a multi-site facility?
For facilities operating 3 or more FR-A500 drives at 15kW, maintaining a minimum of one FR-BU-H15K per site is recommended. For critical production lines where unplanned downtime cost exceeds the spare part value within hours, a 2:1 spare ratio (two spares per three installed units) is a common industry benchmark. TOPNLMS supports bulk procurement with volume pricing — contact our team for multi-unit quotations.

Q4: Can the FR-BU-H15K be used with a third-party braking resistor?
Yes, provided the resistor meets Mitsubishi Electric’s specified resistance value and power rating for the 15kW / 400V class application. The minimum resistance value and continuous power rating are defined in the FR-A500 instruction manual (IB-0600112). Using an undersized resistor will result in resistor overheating and potential damage to the FR-BU-H15K. TOPNLMS recommends using Mitsubishi-specified resistors or verified equivalents with documented specifications.
