Mitsubishi BC186A166H03 Replacement for MELSERVO Series

Product Overview

Mitsubishi BC186A166H03 Replacement for MELSERVO Series: Smooth Transition & Legacy System Compatibility

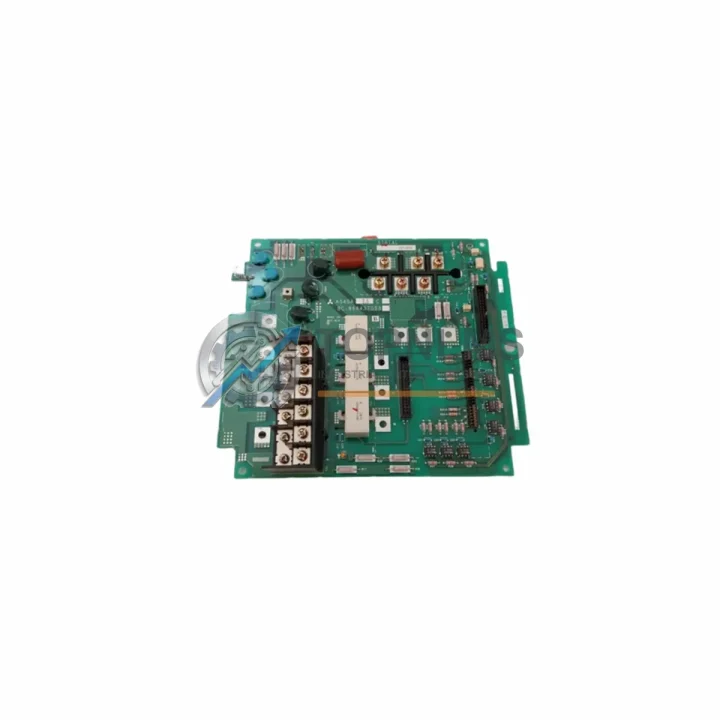

The Mitsubishi Electric BC186A166H03 is a servo drive control PCB engineered for the MELSERVO series of AC servo systems. As production lines age and original spare parts become increasingly scarce, facilities running legacy Mitsubishi servo drive platforms face mounting pressure to source reliable, drop-in replacement boards that preserve existing wiring, encoder feedback loops, and motion control programs without requiring a full drive replacement. The BC186A166H03 addresses this challenge directly — offering a verified-compatible control PCB that restores servo drive functionality with minimal downtime and zero reprogramming of the host controller.

Whether your maintenance team is replacing a failed board in a MR-J2S series or MR-J3 series servo amplifier, or managing a broader retrofit of aging servo infrastructure across a multi-axis CNC or robotic assembly line, the BC186A166H03 slots into the existing drive chassis using the original mounting points, connector pinouts, and power supply rails. No mechanical rework of the control cabinet is required. The board interfaces directly with the existing SSCNET or analog command signal wiring, preserving the motion profile data held in the upstream Mitsubishi MELSEC Q-series or L-series PLC without modification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful BC186A166H03 replacement is rarely a standalone action — it is part of a broader servo system health check and, in many cases, the first step in a phased modernization of the entire drive train. During the board swap, maintenance engineers typically audit adjacent components to prevent repeat failures and reduce future unplanned downtime.

On the power delivery side, the MR-PWS1CBL03M-A1-H power cable assembly and the internal capacitor bank of the servo amplifier should be inspected for aging. If the drive has been in service for more than eight years, proactive replacement of the MR-J2S-series regenerative resistor unit is advisable to prevent thermal runaway after the control board is restored. On the feedback side, verify that the MR-JCCBL encoder cable connectors are free of oxidation — a degraded encoder signal is a common root cause of the original board failure and will damage a replacement board if left unaddressed.

For facilities managing multi-axis systems, the BC186A166H03 replacement is often coordinated with a review of the MELSEC Q172DCPU motion controller firmware version to confirm SSCNET handshake compatibility. If the motion CPU is also approaching end-of-life, a parallel upgrade path using the Q173DSCPU with SSCNET III/H support provides a forward-compatible architecture that accommodates both legacy MR-J3 drives and newer MR-J4 series amplifiers on the same network segment — eliminating the need for a full simultaneous drive replacement across all axes.

In control cabinet environments where space is constrained, the slim-profile design of the BC186A166H03 ensures that adjacent MR-J3-DU drive units, terminal blocks, and EMC noise filter modules do not need to be relocated. The board replacement can typically be completed within a planned maintenance window of two to four hours, including functional verification and a short jog-mode test cycle.

For facilities that also operate Mitsubishi FR-A700 or FR-F700 series inverter drives on the same production line, the BC186A166H03 replacement project is a natural trigger point to audit the inverter control boards as well, since both product families share similar service life curves and failure modes under continuous industrial duty cycles.

Retrofit Guidance FAQ

Q: Do I need to re-enter servo parameters after replacing the BC186A166H03?
A: In most cases, no. Servo gain parameters are stored in the drive’s non-volatile memory on a separate EEPROM device, not on the control PCB itself. After board replacement, perform a parameter read-back using MR Configurator2 to confirm all settings are intact before resuming production.

Q: Will my existing SSCNET wiring remain compatible?
A: Yes. The BC186A166H03 uses the same SSCNET optical fiber interface as the original board. No changes to fiber routing, connectors, or network topology are required.

Q: Can this board be used in a drive that communicates via analog ±10V command?
A: Yes. The board supports both SSCNET and analog command modes. Confirm the drive’s mode selection jumper or parameter setting matches your existing wiring configuration before powering up.

Q: What if my host PLC is a MELSEC A-series (older generation)?
A: MELSEC A-series controllers using pulse train or analog command output are compatible at the signal level. Verify the command voltage range and pulse frequency specifications against your existing motion program to confirm compatibility before installation.

Q: How do I verify the replacement board is functioning correctly before full production restart?
A: After installation, use MR Configurator2 to perform a servo-on test in jog mode at low speed. Monitor encoder feedback, current draw, and alarm status. Clear any stored alarms from the previous failure before running a full-speed cycle.

Q: Is physical installation space a concern?
A: No. The BC186A166H03 is a direct form-factor replacement. It uses the same PCB dimensions, mounting hole pattern, and connector positions as the original board, requiring no modification to the drive chassis or control cabinet layout.

Warranty Assurance

Every BC186A166H03 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each board undergoes a multi-stage outgoing quality inspection that includes visual inspection, power-on functional verification, and communication interface testing. Units that do not pass all inspection checkpoints are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed fault condition. Our technical support team responds to warranty inquiries within one business day. Replacement units for confirmed warranty cases are prioritized for same-week dispatch to minimize production impact.

For procurement teams managing spare parts inventory across multiple facilities, TOPNLMS offers batch purchasing with extended lead-time reservation. All units are stored in ESD-safe, climate-controlled warehousing and shipped in anti-static packaging with individual serial number tracking to support your incoming inspection and asset management processes.

We maintain stock of the BC186A166H03 and related MELSERVO spare components to support urgent breakdown scenarios. Express shipping to major industrial hubs in Asia, Europe, and the Americas is available upon request.
