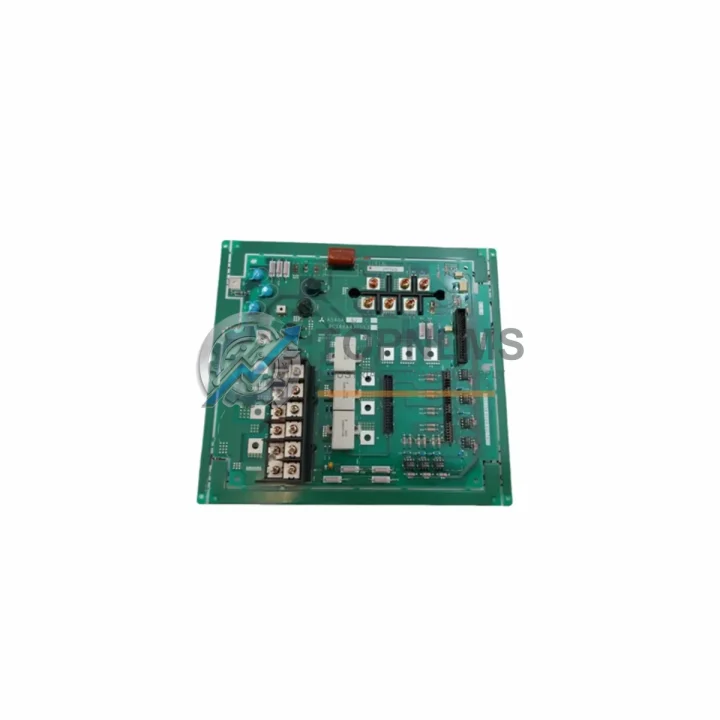

Mitsubishi A54GA5.5B BC186A437G52 Ruggedized Drive Module

Product Overview

Mitsubishi A54GA5.5B BC186A437G52 Ruggedized Drive Module: Industrial Resilience for Harsh Environments

The Mitsubishi Electric A54GA5.5B BC186A437G52 is a factory-grade drive PCB module engineered for the A-Series 5.5 kW inverter platform — one of Mitsubishi Electric’s most enduring and widely deployed variable-frequency drive families in global industrial automation. Designed to operate reliably under the demanding conditions of continuous production lines, this power board delivers stable gate-drive and control-signal performance even in environments characterized by high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and broadband electromagnetic interference (EMI).

In heavy industrial settings — including steel mills, cement plants, petrochemical facilities, and municipal water-treatment stations — drive PCBs are among the most thermally and electrically stressed components in the control cabinet. The A54GA5.5B BC186A437G52 addresses this challenge through Mitsubishi Electric’s proven multi-layer PCB construction, conformal-coating-ready substrate, and precision-matched gate-drive circuitry that maintains IGBT switching integrity across the full rated temperature range. Whether installed in a standalone drive enclosure or integrated into a larger MCC (Motor Control Center) alongside Mitsubishi FR-A700 or FR-A800 series inverter stacks, this board sustains the signal fidelity that safe motor control demands.

Rugged Specifications Table

Comprehensive Protection Solutions

The A54GA5.5B BC186A437G52 does not operate in isolation — it is one critical node within a broader automation and protection architecture. In a typical industrial control cabinet, this drive board works in concert with the Mitsubishi FR-A740 inverter main board and the FR-A7NC communication option card, which together manage motor speed, torque, and network-level diagnostics over CC-Link or PROFIBUS-DP. Upstream, a Mitsubishi Q-Series PLC CPU module (such as the Q06UDEHCPU) issues motion commands via the QJ71LP21-25 MELSECNET/H network module, ensuring deterministic, low-latency control even across multi-axis production lines.

On the power-conditioning side, a Mitsubishi FR-BIF EMC filter suppresses conducted emissions at the drive input, protecting adjacent Mitsubishi FX5U PLC I/O modules and NZ2GF2B1-16D remote I/O units from switching-frequency noise that could cause spurious input reads or communication faults. For installations in hazardous areas or where arc-flash risk is present, a Mitsubishi MSO-T series electromagnetic contactor provides upstream isolation, while a Mitsubishi NF-series molded-case circuit breaker delivers short-circuit and overload protection rated to the drive’s input current. Terminal blocks from the Mitsubishi A-TB series provide secure, vibration-resistant field wiring termination within the same enclosure, completing a fully integrated, single-vendor protection chain that simplifies spare-parts management and reduces mean time to repair (MTTR).

Application in Critical Infrastructure

In oil and gas upstream facilities, the A54GA5.5B BC186A437G52 supports pump and compressor drive systems where unplanned downtime translates directly into production loss and safety risk. The board’s robust gate-drive design maintains IGBT control integrity despite the high-frequency switching transients and ground-loop interference common in wellhead and pipeline environments.

In mining and mineral processing, conveyor drives, crusher motors, and ventilation fans operate continuously under heavy mechanical load and in atmospheres laden with coal dust, silica, or mineral particulates. The A-Series drive platform — with this PCB at its core — is a proven choice for these applications, where the cost of a drive failure extends beyond the component itself to include lost ore throughput and potential safety incidents.

In power generation and grid-support facilities, auxiliary motor drives for cooling fans, feedwater pumps, and fuel-handling conveyors demand the highest levels of electrical reliability. The A54GA5.5B BC186A437G52’s compatibility with Mitsubishi’s established A-Series inverter ecosystem means that maintenance engineers can replace a failed board without re-engineering the drive configuration, preserving the original parameter set and minimizing outage duration.

In water and wastewater treatment plants, variable-speed pump drives must operate reliably in high-humidity, chemically aggressive environments. The board’s tolerance for elevated ambient humidity and its compatibility with conformal coating make it well-suited for pump-house installations where condensation and corrosive gases are persistent concerns.

In metallurgical and steel-making facilities, rolling mill drives and furnace exhaust fan systems generate intense electromagnetic fields and thermal gradients. The A54GA5.5B BC186A437G52’s multi-layer PCB construction and Mitsubishi Electric’s industrial-grade component selection ensure that gate-drive signals remain clean and timing-accurate even in these extreme electromagnetic environments.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. If a fault is confirmed, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault symptom.

Q2: What pre-shipment testing is performed on each unit?
Every A54GA5.5B BC186A437G52 board undergoes a full functional and electrical inspection prior to dispatch. This includes visual inspection for physical damage, continuity checks on critical signal paths, and verification of gate-drive output integrity. Units that do not pass inspection are quarantined and not shipped.

Q3: Is this board compatible with all A-Series 5.5 kW inverter variants, and how do I confirm fitment?
The A54GA5.5B BC186A437G52 is designed for the Mitsubishi A-Series 5.5 kW inverter platform. Fitment should be confirmed against the original drive’s nameplate data and the board’s mounting reference. If you are uncertain about compatibility with a specific drive serial number or production revision, contact our technical team with your drive’s full model code before ordering.

Q4: Can TOPNLMS support long-term or repeat procurement for maintenance programs?
Yes. TOPNLMS maintains stock of legacy and current Mitsubishi Electric drive components to support planned maintenance, emergency replacement, and MRO (Maintenance, Repair & Operations) programs. Volume pricing and reserved-stock arrangements are available for facilities with recurring demand. Contact us to discuss a supply agreement tailored to your maintenance schedule.
