Mitsubishi A24PC7.5A-BC186A202G51 Original Industrial Spare FR-A Compatible

Product Overview

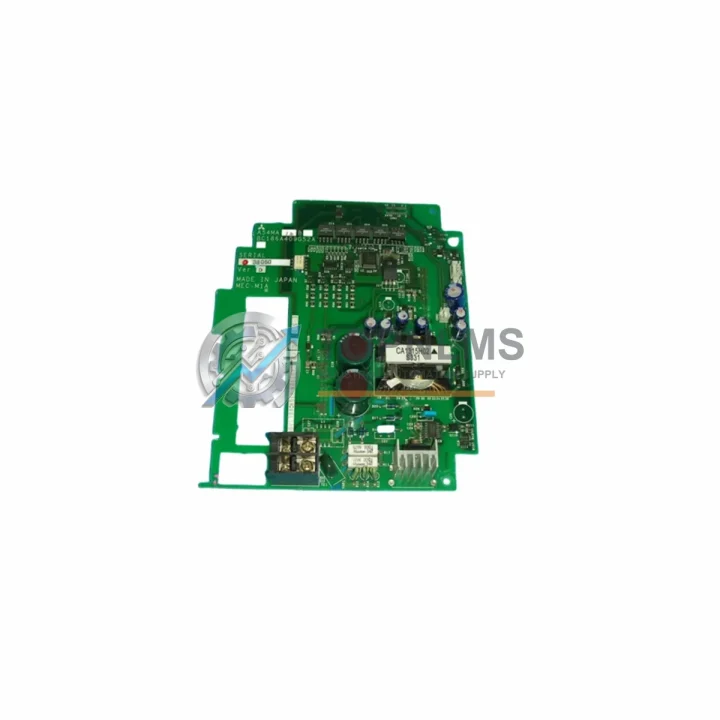

Mitsubishi A24PC7.5A-BC186A202G51 Original Industrial Spare FR-A Compatible: System Stability and Industrial Spare Maintenance Value

In high-demand manufacturing environments, the reliability of your variable frequency drive (VFD) infrastructure is non-negotiable. The Mitsubishi A24PC7.5A-BC186A202G51 is an original drive control PCB board engineered for the Mitsubishi FR-A Series inverter platform — one of the most widely deployed VFD families in global industrial automation. Whether you are managing a scheduled overhaul, responding to an unplanned shutdown, or building a proactive spare parts inventory, this board is a critical component that directly determines whether your drive system returns to full operation in hours or days.

The FR-A Series inverter is found across a broad range of industrial applications: conveyor systems, pump stations, HVAC air handling units, compressor drives, crane hoists, and precision machining centers. When the drive control PCB fails — due to power surge, capacitor aging, thermal stress, or moisture ingress — the entire drive becomes inoperable. Sourcing a genuine A24PC7.5A-BC186A202G51 replacement board from a verified supplier eliminates the risk of counterfeit components and ensures full compatibility with the original FR-A drive chassis without firmware reconfiguration or mechanical modification.

Critical Technical Specs Table

Preventive Maintenance Strategy

A drive control PCB failure rarely occurs in isolation. In most field cases, the root cause involves a broader electrical event — a power quality disturbance, a cooling failure, or accumulated thermal cycling — that stresses multiple components simultaneously. When replacing the A24PC7.5A-BC186A202G51, experienced maintenance engineers treat the intervention as an opportunity to audit the entire drive assembly and associated control cabinet.

Begin with the FR-A Series power supply board, which feeds regulated DC voltage to the control PCB. If the power supply board has experienced the same surge event, replacing only the control PCB may result in a repeat failure within weeks. Inspect the gate driver board for burn marks or delamination — gate driver faults are a common upstream cause of control PCB damage in VFD systems.

Check the DC bus capacitor bank for bulging, electrolyte leakage, or elevated ESR readings. Aged capacitors cause voltage ripple that degrades PCB logic circuits over time. While the drive is open, inspect the cooling fan module — FR-A Series drives rely on forced-air cooling, and a degraded fan accelerates thermal aging of all internal PCBs.

At the cabinet level, verify the condition of the input reactor (AC line reactor) and the EMC filter module. These components protect the drive from upstream power disturbances; a failed filter passes harmonic noise directly to the drive’s sensitive control circuitry. Inspect all terminal block assemblies and control wiring connectors for oxidation, loose crimps, or insulation breakdown — poor connections are a leading cause of intermittent drive faults that are often misdiagnosed as PCB failures.

For facilities running multiple FR-A Series drives, consider maintaining a spare I/O expansion card and a communication option card (such as the FR-A7NC for CC-Link or FR-A7NP for PROFIBUS) in your spare parts inventory. Communication card failures can disable remote monitoring and cause the drive to trip on a communication fault, even when the drive itself is mechanically sound. Similarly, a spare operator panel (FR-DU07 or equivalent) allows rapid parameter backup and restoration during a board swap, reducing commissioning time significantly.

For critical production lines, a signal isolator module between the PLC analog output and the drive frequency reference input provides an additional layer of protection against ground loop interference — a common but overlooked source of erratic drive behavior. Pair this with periodic inspection of the fuse modules on the drive input circuit to ensure overcurrent protection remains within specification.

Strategic Replacement Solutions

The Mitsubishi A24PC7.5A-BC186A202G51 is a direct OEM replacement board for the FR-A Series 7.5A drive class. Unlike aftermarket alternatives, the original board retains full compatibility with the drive’s firmware, parameter memory, and protection logic — no recalibration or parameter re-entry is required after installation. This is particularly valuable in legacy system environments where the original drive configuration has been optimized over years of operation and re-commissioning from scratch would require significant engineering time.

For facilities managing aging FR-A Series infrastructure, sourcing original spare PCBs is a cost-effective alternative to full drive replacement. A complete FR-A Series drive unit represents a capital expenditure several times greater than a control PCB replacement, and in many cases the drive chassis, power stage, and mechanical assembly remain fully serviceable. Replacing only the failed PCB restores the drive to original specification at a fraction of the cost, while preserving the existing motor cable routing, conduit infrastructure, and panel layout.

This strategy also supports system lifecycle extension for production lines where the FR-A Series drive is deeply integrated into the control architecture — particularly where the drive communicates with a Mitsubishi MELSEC PLC via CC-Link or where the drive’s built-in PID function is used for closed-loop process control. Replacing the drive with a different model would require PLC program modifications, network reconfiguration, and re-tuning of control parameters. A PCB-level repair eliminates all of these risks.

All units are dispatched with pre-shipment functional testing documentation. Standard lead time is 3–7 business days for in-stock items, with expedited shipping available for urgent maintenance requirements. Each unit is shipped in anti-static, moisture-barrier packaging to ensure the board arrives in field-ready condition.

Support FAQ

Q1: Is the A24PC7.5A-BC186A202G51 compatible with all FR-A Series drives?
This board is designed for the Mitsubishi FR-A Series 7.5A output current class. Compatibility depends on the specific drive model and hardware revision. Please provide your full drive model number (e.g., FR-A024-0.75K) when ordering to confirm fitment. Our technical team can cross-reference the board against your drive’s BOM before shipment.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events beyond the drive’s rated input, or physical damage during handling. Warranty claims are processed with return shipping and a replacement or refund issued within 10 business days of receipt.

Q3: How is the board tested before shipment?
Each A24PC7.5A-BC186A202G51 board undergoes a pre-shipment inspection including visual inspection for component damage, continuity testing of key signal paths, and functional verification where test equipment permits. A test report summary is available upon request for quality-critical procurement processes.

Q4: Can I use this board as a long-term inventory spare for multiple drives?
Yes. Maintaining one or two A24PC7.5A-BC186A202G51 boards as on-site spares is a recommended practice for facilities operating multiple FR-A Series 7.5A drives. Boards should be stored in their original anti-static packaging in a dry, temperature-controlled environment. Shelf life under proper storage conditions exceeds five years. Periodic inspection of stored boards every 12–18 months is recommended to verify packaging integrity.
