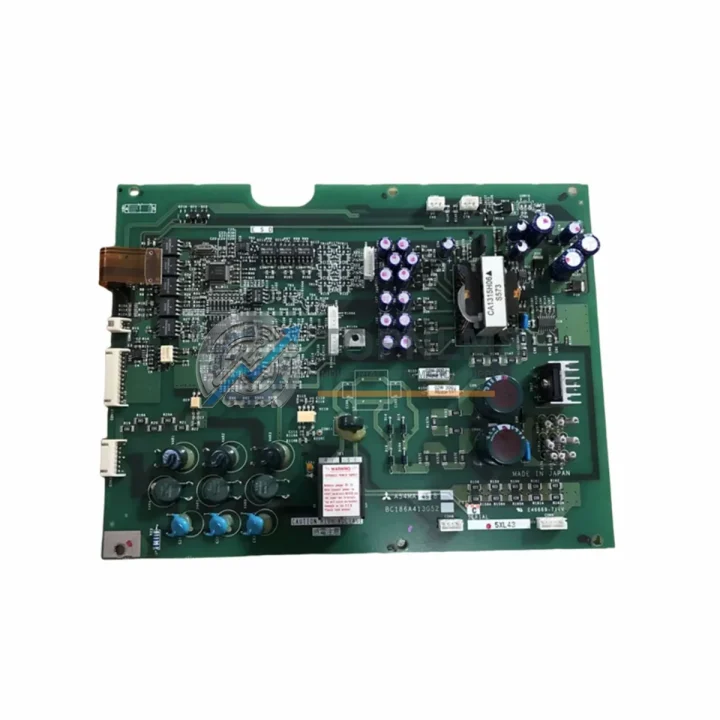

Mitsubishi A22MC0.75B BC186A219G52 Replacement for FR-A Series

Product Overview

Mitsubishi A22MC0.75B BC186A219G52 Replacement for FR-A Series: Seamless Transition & Compatible Upgrade

When your Mitsubishi FR-A Series variable frequency drive experiences a power driver board failure, unplanned downtime can cascade across your entire production line. The Mitsubishi A22MC0.75B BC186A219G52 VFD power driver board is a precision-engineered replacement and upgrade solution designed to restore your drive system to full operational status with minimal intervention. Whether you are retiring an aging FR-A024 or FR-A044 series inverter, replacing a failed gate driver stage in a legacy FR-A200 installation, or modernizing a multi-axis motion control cabinet, this board delivers the electrical compatibility and mechanical fit your engineers need to complete the retrofit without redesigning the control architecture.

The A22MC0.75B BC186A219G52 board is rated for 0.75 kW drive applications and interfaces directly with the IGBT module stack and control logic board within the FR-A Series chassis. Its gate signal timing, DC bus interface, and fault feedback circuits are fully compatible with the original Mitsubishi drive firmware, meaning your existing PLC program — whether running on a MELSEC Q Series, MELSEC iQ-R, or legacy MELSEC A Series controller — requires no modification. The drive’s communication interface to upstream controllers via CC-Link, PROFIBUS-DP, or RS-485 Modbus remains unaffected, preserving your network topology and eliminating the need for re-commissioning the communication layer.

Field engineers replacing this board in a live production environment will find that the wiring harness connectors, mounting hole pattern, and PCB form factor are identical to the original factory-installed assembly. The DC bus capacitor bank, braking resistor terminals, and thermistor feedback circuit all mate to the replacement board without modification. This is particularly valuable in installations where the FR-A Series drive shares a control cabinet with Mitsubishi FR-F Series fans and pump drives, Mitsubishi FR-E700 compact inverters, or third-party servo amplifiers, as the physical space constraints of the cabinet are already optimized and any dimensional deviation would require costly panel rework.

For sites operating Mitsubishi MELSEC Q Series or iQ-R PLCs with QD75 or RD77 positioning modules, the drive replacement process is straightforward: isolate the drive from the DC bus, discharge the capacitor bank per the FR-A Series safety manual, remove the four mounting screws securing the driver board, disconnect the gate signal ribbon cable and the fault output connector, and install the A22MC0.75B BC186A219G52 replacement. Power-on self-test and parameter restoration from the FR-A Series parameter unit or from a GOT2000 series HMI panel can be completed within the same maintenance window. No firmware flashing or EEPROM initialization is required when the replacement board is sourced as a genuine Mitsubishi Electric assembly.

Sites that have already migrated their control layer to the MELSEC iQ-R platform but retained legacy FR-A Series drives as the motion execution layer will find this replacement board extends the operational life of the drive hardware by several years, deferring the capital expenditure of a full drive replacement. This is a common strategy in automotive body shop welding lines, food and beverage conveyor systems, and water treatment pump stations where the drive’s mechanical integration — including conduit routing, cable tray layout, and motor terminal box wiring — represents a significant portion of the original installation cost.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FR-A Series drive board replacement rarely occurs in isolation. In most industrial retrofit projects, the A22MC0.75B BC186A219G52 is installed alongside a coordinated set of supporting components to ensure the entire drive system is restored to a reliable, maintainable state. Engineers working on these projects typically source the Mitsubishi FR-A Series parameter unit (FR-PU07) to verify and restore drive parameters after board replacement, particularly when the original parameter backup was stored on a GOT2000 HMI or a MELSEC Q Series CPU module’s built-in data logging function.

In cabinets where the drive shares a DIN rail with Mitsubishi FR-BU2 braking units and FR-BR brake resistors, the replacement board installation is an opportunity to inspect the braking circuit wiring and replace any degraded terminal blocks or ferrules. Sites running multiple FR-A Series drives in a common DC bus configuration will also want to verify the condition of the Mitsubishi FR-HC2 harmonic filter and the FR-BIF input filter, as these components experience the same thermal cycling as the driver board and may be approaching end of life simultaneously.

For control cabinet wiring integrity, many engineers replace the Mitsubishi GT15-RS4-9S RS-422/485 communication cable and the FR-A7NC CC-Link communication option card at the same time as the driver board, since these components share the same maintenance window and their replacement eliminates a common source of intermittent communication faults that can be misdiagnosed as driver board failures. In systems where the FR-A Series drive receives speed reference signals from a MELSEC Q Series QD75D4 positioning module via analog output, the AO terminal wiring and shielding should be inspected and re-terminated as part of the retrofit.

Power supply integrity is equally important. The Mitsubishi FR-A Series drive’s internal 24 VDC control power supply feeds the control board, the operator panel, and the communication option card. If the driver board failure was caused by a DC bus overvoltage event, the 24 VDC supply should be tested before returning the drive to service. In some installations, a dedicated Mitsubishi PS-5R-SF24 DIN rail power supply is added to the cabinet to provide a clean, isolated 24 VDC rail for the drive’s control circuit, improving noise immunity in environments with high-frequency switching from adjacent servo amplifiers or soft starters.

Retrofit Guidance FAQ

Q: Do I need to re-wire the motor terminals after replacing the A22MC0.75B BC186A219G52 board?
A: No. The driver board replacement is a board-level operation within the drive chassis. The motor output terminals (U, V, W) and the input power terminals (R, S, T) are connected to the drive’s power module, not to the driver board directly. No motor wiring changes are required.

Q: Will my existing PLC program need to be modified after the board replacement?
A: No. The A22MC0.75B BC186A219G52 replacement board restores the drive’s gate drive function without altering the drive’s parameter set or communication interface. Your MELSEC Q Series or iQ-R PLC program, including any MC Protocol or CC-Link instructions referencing the drive, will continue to operate without modification.

Q: Is the communication protocol affected by the board replacement?
A: No. CC-Link, RS-485 Modbus, and PROFIBUS-DP communication are handled by the drive’s control board and communication option card, not by the power driver board. Replacing the A22MC0.75B BC186A219G52 board does not affect the drive’s network address, baud rate, or protocol configuration.

Q: Will the replacement board fit in the same physical space as the original?
A: Yes. The A22MC0.75B BC186A219G52 replacement board has an identical PCB form factor, mounting hole pattern, and connector layout to the original factory-installed assembly. No cabinet modification or bracket fabrication is required.

Q: What should I check before powering on the drive after board replacement?
A: Verify that the DC bus capacitors have been fully discharged before installation. After installation, confirm that all ribbon cable and power connectors are fully seated. Restore drive parameters from backup before the first power-on. Perform a no-load test run before reconnecting the motor load. Check the fault history register on the FR-PU07 parameter unit or GOT2000 HMI to confirm no residual fault codes are present.

Q: Can this board be used as a spare for preventive maintenance inventory?
A: Yes. The A22MC0.75B BC186A219G52 is suitable for inclusion in a critical spare parts inventory for FR-A Series drive installations. TOPNLMS ships with full anti-static packaging and includes a test report for each unit. The 12-month warranty applies from the date of shipment, supporting both immediate replacement and planned maintenance stock.

Warranty Assurance

Every Mitsubishi A22MC0.75B BC186A219G52 VFD power driver board shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional inspection including visual examination, connector integrity check, and component-level verification against the original Mitsubishi Electric assembly specification. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the nature of the fault and the customer’s preference. Warranty claims are processed within 3 business days of receipt of the returned unit. Return shipping for confirmed warranty faults is covered by TOPNLMS. Customers are encouraged to retain the original packaging and test report supplied with the shipment, as these documents expedite the warranty assessment process.

TOPNLMS ships from Xiamen, China, with DHL Express, FedEx International Priority, and UPI available as carrier options. Most destinations in Asia, Europe, and North America receive shipments within 3–7 business days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. A commercial invoice, packing list, and certificate of origin are included with every international shipment to support customs clearance.

For procurement teams requiring formal quotations, lead time confirmation, or batch pricing for multiple units, contact TOPNLMS directly. We support net-30 payment terms for qualified industrial accounts and can provide material traceability documentation upon request.
