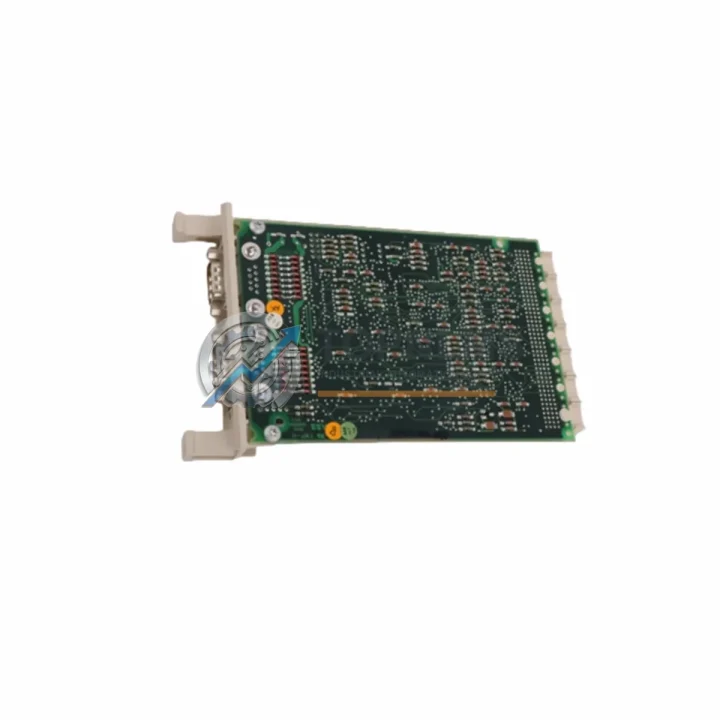

METSO IOP302-181524 Ruggedized Analog Input Module

Product Overview

METSO IOP302-181524 Ruggedized Analog Input Module for Harsh Industrial Environments

The METSO IOP302-181524 is an 8-channel analog input module engineered for the METSO DNA Distributed Control System (DCS), purpose-built to deliver reliable signal acquisition in the most demanding industrial environments. Whether deployed in high-temperature process areas, high-humidity coastal facilities, dust-laden mining operations, or electrically noisy heavy manufacturing plants, the IOP302-181524 maintains precise 4–20 mA and voltage signal processing without compromise. Its ruggedized design philosophy reflects METSO’s commitment to continuous availability in critical infrastructure — where a single module failure can cascade into costly unplanned shutdowns.

In process industries such as pulp and paper, power generation, oil and gas, and chemical manufacturing, analog input modules serve as the sensory layer of the entire control architecture. The IOP302-181524 interfaces directly with field transmitters — including pressure, temperature, flow, and level sensors — and delivers conditioned analog data to the METSO DNA controller layer for real-time process regulation. Its 8-channel capacity allows dense I/O consolidation within a single module slot, reducing cabinet footprint while maintaining full signal integrity across all channels simultaneously.

The module is designed for installation within the METSO DNA I/O cabinet infrastructure, mounting onto compatible DNA I/O baseplates and communicating via the DNA fieldbus architecture. Engineers migrating from legacy METSO Damatic XD or Damatic XDi systems will find the IOP302-181524 a natural upgrade path, as it preserves the same cabinet slot dimensions and wiring terminal conventions used in earlier DNA-generation hardware. This physical and electrical compatibility dramatically reduces retrofit engineering hours and eliminates the need for full cabinet redesigns during modernization projects.

Electromagnetic interference (EMI) is a persistent challenge in heavy industrial environments where large motors, variable frequency drives, and high-current switching equipment operate in close proximity to control hardware. The IOP302-181524 incorporates signal isolation and filtering circuitry that suppresses common-mode noise and protects analog measurement accuracy even when installed adjacent to power distribution equipment or motor control centers. This makes it particularly well-suited for steel mills, cement plants, and mining operations where EMI levels routinely exceed standard industrial thresholds.

Rugged Specifications Table

Comprehensive Protection Solutions

A reliable analog input layer is only as strong as the ecosystem surrounding it. In a fully configured METSO DNA control cabinet, the IOP302-181524 operates alongside a range of complementary modules that together form a complete, fault-tolerant control architecture. The METSO IOP302 family of I/O modules — including digital input variants such as the IOP302-181525 and analog output modules in the same series — share the same baseplate and power distribution infrastructure, enabling mixed I/O configurations within a single rack without additional interface hardware.

Power integrity is foundational to analog measurement accuracy. The IOP302-181524 draws regulated DC power from the DNA cabinet power supply modules, such as the METSO PSU-DNA series power supply units, which provide redundant 24 VDC rails with automatic failover. In installations where power quality is a concern — particularly in facilities with diesel generators or unstable grid connections — pairing the IOP302-181524 with a dedicated power conditioning module ensures that voltage transients do not corrupt analog readings or trigger spurious alarms.

For process facilities operating HART-enabled field instruments, the IOP302-181524 supports HART protocol pass-through on its analog channels, allowing the METSO DNA HART multiplexer to access device diagnostics and configuration data from smart transmitters without interrupting the primary 4–20 mA signal loop. This capability is particularly valuable in pharmaceutical and food processing plants where instrument calibration records must be maintained for regulatory compliance.

Communication between the I/O layer and the DNA controller is managed through the METSO ACN (Application Controller Node) or compatible DNA controller modules, which poll the IOP302-181524 at configurable scan rates to ensure real-time process data availability. In redundant controller configurations, dual ACN modules provide automatic controller failover, ensuring that analog input data remains continuously available to the process control application even during planned maintenance or unexpected controller faults.

Terminal modules and marshalling cabinets play a critical role in field wiring management. The IOP302-181524 connects to field instruments via METSO DNA terminal blocks and cable assemblies, which provide clearly labeled, individually fused wiring points for each of the 8 analog channels. In large-scale DCS installations, these terminal assemblies are housed in separate marshalling cabinets adjacent to the main control cabinet, with pre-wired multi-core cables running between the two enclosures — a configuration that simplifies field wiring and accelerates commissioning.

For facilities that also operate safety instrumented systems (SIS), the IOP302-181524 can coexist within the same control room infrastructure as METSO SIS safety controllers and associated safety I/O modules, provided that the basic process control and safety layers are maintained as logically and physically separate systems in accordance with IEC 61511 requirements. This architectural flexibility allows a single control room to house both the DNA DCS and the SIS without requiring separate physical enclosures.

Application in Critical Infrastructure

The IOP302-181524 has established a strong operational track record across the full spectrum of process industries where continuous availability and measurement accuracy are non-negotiable. In pulp and paper mills, the module monitors critical process variables including digester pressure, bleaching chemical flow rates, and paper machine headbox consistency — all of which require sub-second response times and high measurement repeatability to maintain product quality and prevent equipment damage.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the IOP302-181524 provides analog input services for boiler drum level monitoring, turbine exhaust temperature measurement, and generator cooling system supervision. The module’s tolerance for elevated ambient temperatures and its immunity to the strong electromagnetic fields generated by large generators and transformers make it a preferred choice for power plant DCS modernization projects.

The oil and gas sector presents some of the most challenging operating conditions for control hardware, combining high ambient temperatures, corrosive atmospheres, explosive gas hazards, and extreme vibration from rotating machinery. While the IOP302-181524 is designed for installation in climate-controlled control rooms and equipment rooms rather than in classified hazardous areas, it serves as the backbone of the safe-area DCS infrastructure that monitors and controls field instruments located in Zone 1 and Zone 2 hazardous areas via appropriate intrinsic safety barriers or galvanic isolators.

In water and wastewater treatment plants, the module handles analog inputs from flow meters, pH sensors, dissolved oxygen probes, and turbidity analyzers — instruments that require high input impedance and low noise floors to deliver accurate readings at the low signal levels typical of electrochemical sensors. Municipal water authorities operating METSO DNA-based SCADA systems rely on the IOP302-181524 as a long-term, supportable component that can be maintained and replaced without requiring system-wide software reconfiguration.

Mining and mineral processing operations benefit from the module’s robust construction in environments characterized by heavy vibration from crushers and conveyors, airborne silica and coal dust, and wide temperature swings between outdoor ambient conditions and heated process areas. The IOP302-181524’s sealed module housing and conformal-coated PCB assembly provide a meaningful degree of protection against particulate contamination, extending service life in these demanding applications.

Security & Quality FAQ

Q1: What warranty coverage is provided with the IOP302-181524?
Every IOP302-181524 unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. Each module undergoes functional testing prior to dispatch, including channel-by-channel analog signal verification and communication interface checks. In the event of a warranty claim, we provide rapid replacement support to minimize your process downtime. Our technical team is available to assist with fault diagnosis and module swap procedures.

Q2: How is the module tested before shipment?
All IOP302-181524 modules are subjected to a pre-shipment inspection protocol that includes visual inspection for physical damage, power-on functional verification, analog channel accuracy testing across the full 4–20 mA input range, and communication interface validation. Modules that do not meet our acceptance criteria are quarantined and not dispatched. A test report is available upon request for customers with quality management system requirements.

Q3: Is the IOP302-181524 compatible with my existing METSO DNA system version?
The IOP302-181524 is designed for compatibility with the METSO DNA DCS platform across multiple software generations. It is physically and electrically compatible with standard DNA I/O baseplates and uses the DNA fieldbus communication protocol supported by all DNA controller generations. For customers upgrading from Damatic XD or XDi systems, we recommend consulting your METSO DNA system documentation to confirm baseplate compatibility and firmware version requirements. Our technical team can assist with compatibility assessment prior to purchase.

Q4: What is your lead time and shipping capability for urgent replacement orders?
TOPNLMS maintains stock of the IOP302-181524 and can typically ship within 1–3 business days of order confirmation. We ship internationally from Xiamen, China, using DHL Express, FedEx International Priority, and UPS Worldwide Expedited services, with typical transit times of 3–7 business days to most destinations. For urgent plant breakdown situations, we offer priority processing and can arrange same-day dispatch for orders confirmed before 14:00 CST. Contact our team at [email protected] or +86 18359293191 to discuss your specific timeline requirements.
