Meggitt GSI124-244-124-000-021 Replacement for GSI Series

Product Overview

Meggitt GSI124-244-124-000-021 Replacement for GSI Series: Seamless Transition from Legacy Vibration Monitoring Systems

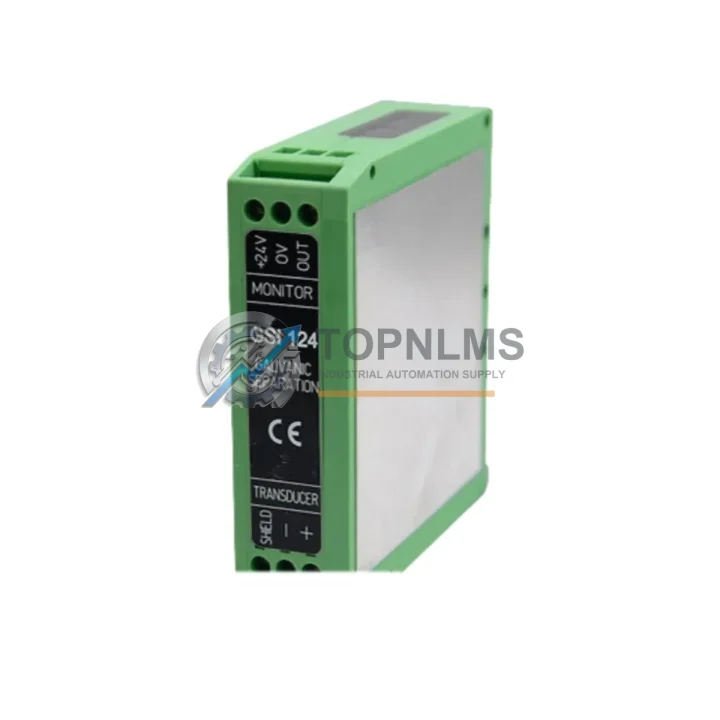

The Meggitt (VIBRO METER) GSI124-244-124-000-021 is a precision industrial vibration sensor engineered for continuous machinery health monitoring in rotating equipment applications. As legacy GSI Series sensors reach end-of-life or become discontinued, plant engineers and maintenance teams face the critical challenge of sourcing a drop-in replacement that preserves existing wiring infrastructure, signal conditioning compatibility, and system calibration — all while minimizing unplanned downtime.

TOPNLMS supplies the GSI124-244-124-000-021 as a direct replacement and upgrade solution for facilities currently operating Meggitt VIBRO METER GSI Series vibration monitoring systems. Whether you are managing a turbine protection system, compressor train, or pump monitoring loop, this sensor integrates into your existing architecture without requiring rewiring or reconfiguration of your signal conditioning chain.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the GSI124-244-124-000-021 sensor is rarely an isolated task. In most retrofit and modernization projects, the sensor swap is part of a broader system upgrade that touches multiple components across the vibration monitoring chain. During the migration process, engineers commonly evaluate and replace associated hardware to ensure end-to-end signal integrity.

For facilities running a Meggitt VM600 rack-based monitoring system, the GSI124 sensor feeds directly into signal conditioning cards such as the VM600 MPC4 machinery protection card or the VM600 AMC8 analog monitoring card. When upgrading from an older GSI Series sensor, it is advisable to verify that the rack’s input impedance and power supply configuration — typically provided by the VM600 RPS6U rack power supply — remain within specification for the new sensor’s output characteristics.

In turbine and compressor applications, the GSI124 sensor is often installed alongside Meggitt TQ401 speed sensors or TQ402 proximity probes for combined vibration and speed monitoring. Replacing the vibration sensor without auditing the proximity probe wiring and gap voltage settings can introduce measurement inconsistencies, particularly in overspeed protection loops. TOPNLMS recommends a concurrent inspection of the VM600 IOC4T I/O card terminal connections when performing sensor replacement on live machinery protection systems.

For older installations that interface the GSI Series sensor output with a Meggitt VM3000 distributed monitoring system, the migration path may also involve replacing the VM3000 signal conditioning module to ensure compatibility with the updated sensor’s sensitivity specification. In such cases, the VM3000 communication gateway module — which bridges the monitoring rack to plant DCS or SCADA systems via Modbus RTU or Profibus DP — should be reconfigured to reflect the new sensor’s engineering unit scaling.

Where the existing installation uses Meggitt CA-series extension cables or low-noise coaxial sensor cables routed through conduit to a junction box, these cables can typically be reused with the GSI124-244-124-000-021 provided the connector termination is inspected and the cable shielding continuity is verified. In high-EMI environments such as motor control rooms or near variable frequency drives, replacing the cable with a new Meggitt low-noise triaxial cable assembly is recommended to prevent ground loop interference from corrupting the vibration signal baseline.

Finally, for facilities transitioning from a standalone vibration monitoring panel to an integrated Meggitt Condition Monitoring System (CMS) platform, the GSI124 sensor is fully compatible with the CMS data acquisition front-end, enabling direct migration of historical vibration trend data and alarm setpoints without loss of machine baseline records.

Retrofit Guidance FAQ

Q: Can I replace the GSI124-244-124-000-021 without rewiring the existing cable run?
A: In the majority of GSI Series installations, the connector pinout and cable interface are preserved across the GSI124 platform. You can typically disconnect the legacy sensor, inspect the mating connector for corrosion or mechanical wear, and install the replacement sensor without modifying the cable run. Always verify the connector type (MIL-spec or M12) matches your existing harness before installation.

Q: Will the replacement sensor require reprogramming of the VM600 rack or DCS alarm setpoints?
A: If the sensitivity specification (mV/g or pC/g) of the GSI124-244-124-000-021 matches the outgoing sensor, no reprogramming is required. If sensitivity differs, the engineering unit scaling in the VM600 MPC4 or AMC8 card configuration must be updated accordingly. TOPNLMS provides the full sensor datasheet upon order confirmation to facilitate this comparison.

Q: Is the GSI124-244-124-000-021 compatible with Profibus DP or Modbus RTU plant networks?
A: The sensor itself outputs an analog signal; protocol compatibility is determined by the signal conditioning rack (e.g., VM600 or VM3000) and its communication gateway module. The GSI124 sensor is compatible with all standard Meggitt rack platforms that support Profibus DP, Modbus RTU, and OPC-UA communication.

Q: What is the physical installation footprint? Will it fit in the existing mounting location?
A: The GSI124 platform maintains the same stud-mount thread specification as predecessor GSI Series sensors. In most cases, the replacement sensor can be installed in the existing tapped hole without machining or adapter plates. Confirm the thread size (typically M8 or 1/4-28 UNF) against your mounting boss specification.

Q: How do I verify the replacement sensor is functioning correctly after installation?
A: After installation, perform a static bias voltage check at the signal conditioning input to confirm the sensor is powered and the cable is intact. Then perform a bump test or use a calibrated shaker to verify the sensor’s sensitivity against the datasheet value. Compare the live vibration spectrum in the VM600 or VM3000 display against the pre-replacement baseline to confirm signal integrity.

Warranty Assurance

Every GSI124-244-124-000-021 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify electrical continuity, connector integrity, and packaging condition. Units are shipped in anti-static, shock-protected packaging with full traceability documentation.

In the event of a warranty claim, TOPNLMS provides a rapid replacement dispatch process to minimize your plant downtime. Our technical support team is available to assist with installation verification, datasheet clarification, and compatibility confirmation before and after purchase. Replacement units are dispatched from our Xiamen warehouse with express international freight options to support urgent maintenance schedules.

For procurement teams requiring documentation, TOPNLMS can provide a commercial invoice, packing list, certificate of conformance, and country-of-origin declaration (Switzerland) for customs clearance purposes. Bulk orders and standing purchase agreements are available for facilities managing multi-unit sensor replacement programs across multiple machinery trains.

Contact our industrial components team to confirm availability, lead time, and pricing before placing your order.
