VIBRO-METER IPC704P-CP237 Ruggedized Vibration Protection Module

Product Overview

VIBRO-METER IPC704P-CP237 Ruggedized Vibration Protection Module: Industrial Resilience for Harsh Environments

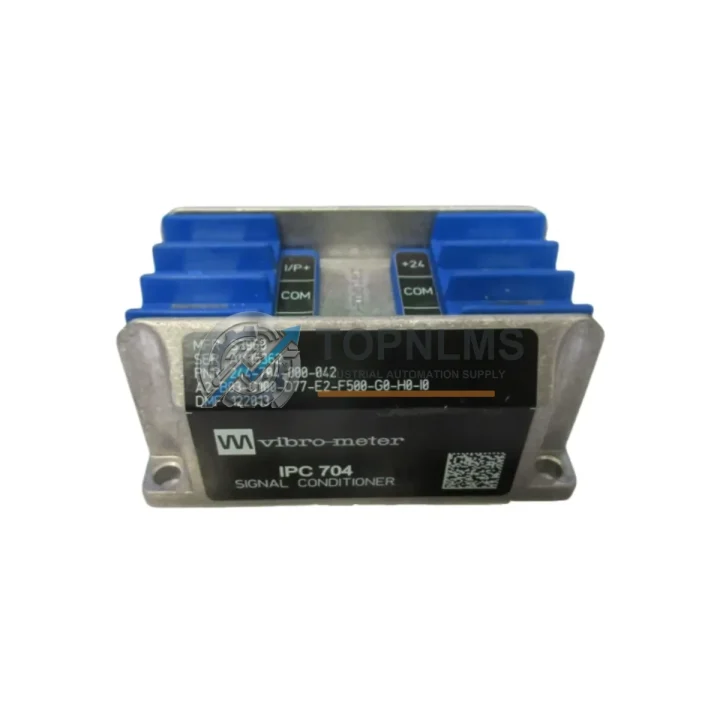

The VIBRO-METER IPC704P-CP237 (Part No. 244-704-000-042) is a precision-engineered vibration protection card from the IPC700 series, designed to deliver continuous, reliable machine protection in the most demanding industrial environments. Built to Swiss engineering standards, this module is purpose-built for applications where vibration monitoring is not optional — it is a safety-critical requirement. Whether deployed in rotating machinery protection systems, turbine monitoring panels, or heavy industrial control cabinets, the IPC704P-CP237 provides the signal integrity and fault-detection accuracy that plant engineers and reliability teams depend on.

In high-vibration environments such as compressor stations, gas turbine halls, and centrifugal pump skids, standard monitoring cards frequently suffer from signal drift, connector fatigue, and premature failure. The IPC704P-CP237 addresses these failure modes through robust hardware design, shielded signal paths, and a form factor optimized for DIN-rail or rack-mount installation within sealed control enclosures. Its compatibility with the broader VIBRO-METER IPC700 platform means it integrates seamlessly with companion cards such as the IPC704P-CP236 and IPC704P-CP238, as well as the VM600 rack-based machinery protection system — enabling a unified, scalable monitoring architecture across multiple machine trains.

Rugged Specifications Table

Comprehensive Protection Solutions

The IPC704P-CP237 does not operate in isolation — it is one node in a broader machine protection architecture. In a typical turbine or compressor protection panel, this card works alongside the VIBRO-METER VM600 MPC4 machinery protection card for relay output and trip logic, and the VM600 AMC8 analog monitoring card for continuous waveform acquisition. Signal conditioning is handled upstream by VIBRO-METER proximity probe drivers and velocity transducer signal conditioners, ensuring clean, calibrated inputs to the IPC704P-CP237 before any protection decision is made.

Within the control cabinet, the vibration protection system interfaces with the plant’s primary DCS (Distributed Control System) — commonly a Honeywell Experion, ABB System 800xA, or Emerson DeltaV platform — via hardwired relay contacts or 4–20 mA analog outputs. For facilities running Siemens S7-300 or S7-400 PLCs, the IPC704P-CP237 trip outputs can be wired directly into digital input modules such as the SM321 or SM331, enabling the PLC to initiate controlled shutdowns or alarm sequences without operator intervention. This integration is equally applicable to Allen-Bradley ControlLogix systems where the vibration trip signal feeds into a 1756-IB16 digital input card.

Power supply stability is critical in any protection system. The IPC700 rack is typically powered by a redundant 24 VDC industrial power supply — such as a Phoenix Contact QUINT or PULS DIMENSION series unit — ensuring that the IPC704P-CP237 remains energized even during mains disturbances. Upstream, surge protection devices (SPDs) and EMC filter modules on the terminal rail protect the card’s sensitive analog front-end from transient overvoltages common in substations and motor control centers. Terminal connections are made via Phoenix Contact or Weidmüller spring-clamp terminal blocks, which maintain reliable contact under the thermal cycling and vibration loads typical of heavy industrial sites.

For safety-instrumented systems (SIS) operating under IEC 61511, the IPC704P-CP237 is often paired with a dedicated safety relay module — such as a Pilz PNOZ or Siemens 3SK safety relay — to form a certified trip loop. Communication back to the control room is handled through PROFIBUS DP or Modbus RTU communication modules integrated into the VM600 rack, providing real-time vibration trend data to the plant historian and condition monitoring software.

Application in Critical Infrastructure

The IPC704P-CP237 is deployed across a wide range of critical infrastructure sectors where unplanned machinery downtime carries severe operational, financial, and safety consequences.

In oil and gas upstream and midstream facilities — including offshore platforms, onshore compression stations, and LNG terminals — this card protects high-speed centrifugal compressors and gas turbines from bearing failure, rotor imbalance, and shaft misalignment. A single undetected vibration event on a critical compressor can result in catastrophic mechanical failure, extended production shutdown, and significant safety risk to personnel. The IPC704P-CP237 provides the early-warning and trip capability that prevents these outcomes.

In coal-fired and combined-cycle power plants, the card is installed in turbine supervisory instrumentation (TSI) panels to monitor steam turbine shaft vibration, axial displacement, and differential expansion. Utilities operating under NERC reliability standards require continuous, redundant vibration monitoring on all critical rotating assets — a requirement the IPC700 platform is specifically designed to meet.

In mining and mineral processing, large ball mills, SAG mills, and conveyor drive motors are subject to extreme vibration loads. The IPC704P-CP237, installed in the motor control center or a field-mounted junction box enclosure, provides real-time protection that allows maintenance teams to schedule bearing replacements during planned shutdowns rather than reacting to catastrophic failures mid-shift.

In water and wastewater treatment plants, high-capacity pump stations rely on continuous vibration monitoring to detect cavitation, impeller wear, and bearing degradation before they escalate to pump failure. The IPC704P-CP237 integrates into SCADA-connected protection panels, providing alarm and trip outputs that the plant’s control system can log, trend, and act upon automatically.

In metallurgical and steel production facilities, rolling mills, continuous casters, and blast furnace blowers operate in environments with extreme heat, dust, and electromagnetic interference. The IPC704P-CP237’s robust signal conditioning and EMC-hardened design ensure reliable operation even when installed adjacent to large variable frequency drives (VFDs) and high-current bus bars that generate significant electrical noise.
