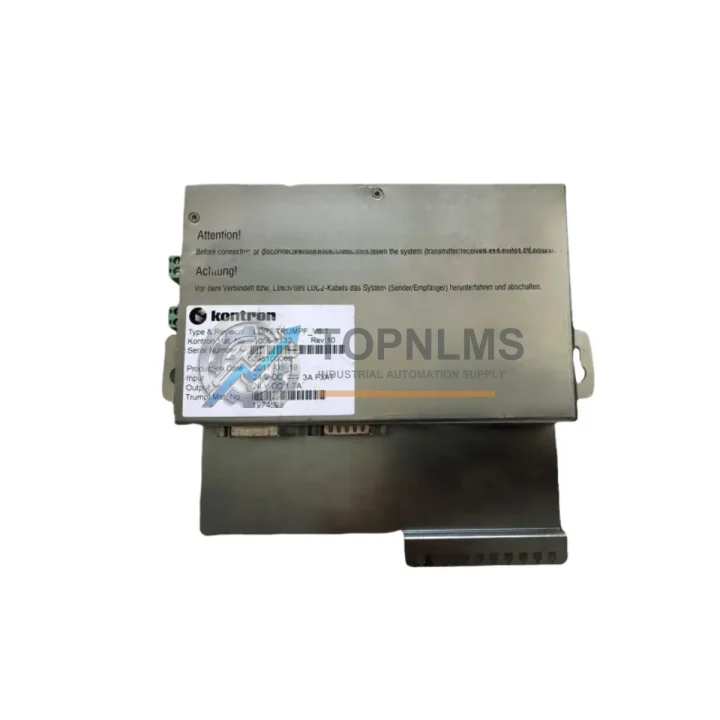

KONTRON LDR2-TRUMPF Original Industrial Spare LDR2 Compatible

Product Overview

KONTRON LDR2-TRUMPF Original Industrial Spare LDR2 Compatible: Ensuring System Stability in Machine Vision & Laser Environments

In high-precision industrial environments — from automotive body-in-white lines to semiconductor wafer inspection cells — the integrity of every optical and control component determines whether production runs on schedule or grinds to a halt. The KONTRON LDR2-TRUMPF is an original industrial light unit engineered for the LDR2 Series platform, purpose-built for machine vision illumination and laser-guided processing systems. Sourcing a genuine, tested replacement unit is not merely a procurement decision; it is a risk-management strategy that protects uptime, preserves calibration baselines, and extends the operational life of capital-intensive equipment.

TOPNLMS maintains verified stock of the LDR2-TRUMPF, pre-tested before dispatch, with a 12-month warranty covering manufacturing defects. Each unit ships with full inspection documentation, ensuring your maintenance team can install with confidence and your quality records remain audit-ready.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled replacement of the LDR2-TRUMPF light unit should never be treated in isolation. Machine vision and laser processing systems are tightly integrated assemblies where the failure of one component cascades rapidly into adjacent circuits. When your maintenance team schedules a planned outage to replace or inspect the LDR2-TRUMPF, it is operationally efficient — and strongly advisable — to simultaneously audit the surrounding components that share the same control cabinet, power rail, or signal loop.

Begin with the power supply module feeding the LDR2 unit. Aging capacitors and voltage drift in the PSU are a leading cause of premature light unit failure; replacing a worn PSU at the same time eliminates the risk of a repeat callout within weeks. Next, inspect the I/O interface module that carries trigger signals from the vision controller to the LDR2-TRUMPF — connector oxidation and signal jitter at this stage directly degrade image acquisition quality. If your system uses a KONTRON or TRUMPF communication module (e.g., PROFIBUS DP or EtherCAT gateway card) to coordinate the vision subsystem with the main PLC, verify firmware version compatibility and check for intermittent bus errors logged in the diagnostic buffer.

The signal isolation module between the light unit trigger output and the PLC digital input card deserves particular attention in older installations: isolation barriers degrade over time in high-EMI environments typical of laser cutting cells. Alongside this, inspect the terminal block assemblies and cable harnesses connecting the LDR2-TRUMPF to its controller — loose terminations are a disproportionate source of nuisance faults that are misdiagnosed as light unit failures. If the system includes a relay output module for interlock or safety-rated enable signals, test contact resistance and verify coil voltage under load.

For facilities running TRUMPF laser platforms integrated with a broader Siemens S7 or S5 PLC backbone, this maintenance window is also the right moment to pull the CPU module’s diagnostic log, check the analog input module calibration for any laser power feedback channels, and verify that the HMI panel (if co-located in the same control cabinet) is running current firmware. Fuse modules and miniature circuit breakers protecting the 24 VDC control rail should be load-tested; a fuse that has experienced repeated inrush events may be within spec on a continuity check but will fail under the next surge. Finally, if the installation uses a fiber-optic data link between the vision PC and the machine controller, clean and inspect the connectors — contamination is the primary cause of intermittent link errors that are often misattributed to software or the light unit itself.

Addressing all of these components during a single planned outage — rather than reactively replacing each one after it fails — is the foundation of a cost-effective industrial spare parts strategy. It reduces total maintenance labor hours, minimizes production loss, and keeps your spare parts inventory lean and purposeful.

Strategic Replacement Solutions

Legacy TRUMPF laser systems and LDR2-platform machine vision installations represent significant capital investment. Many facilities continue operating equipment that is 10–20 years old because the underlying process capability remains valid and the cost of full system replacement is prohibitive. The challenge is sustaining these systems when OEM support windows close and original spare parts become scarce on the open market.

The KONTRON LDR2-TRUMPF available through TOPNLMS is sourced as an original component — not a counterfeit or reverse-engineered substitute — which means it preserves the electrical and optical characteristics the OEM system was calibrated to expect. Drop-in replacement without recalibration is the expected outcome, dramatically reducing the time from parts receipt to system back-online. For maintenance engineers managing a fleet of similar machines, holding one or two LDR2-TRUMPF units in bonded stock eliminates the lead-time risk that turns a two-hour repair into a multi-day production stoppage.

TOPNLMS pre-tests every unit before shipment using functional verification procedures aligned with OEM acceptance criteria. Units are shipped with inspection records, enabling traceability for ISO 9001 and TS 16949 quality management systems. The 12-month warranty provides a clear accountability window, and our technical team can support compatibility verification queries prior to purchase — ensuring you order the correct variant for your specific machine configuration before the part ships.

Support FAQ

Q1: How do I verify the LDR2-TRUMPF is compatible with my specific TRUMPF machine model before ordering?
Provide your machine serial number and control cabinet configuration to [email protected]. Our technical team will cross-reference the LDR2 Series compatibility matrix and confirm the correct part number before you commit to purchase. We do not ship parts we cannot confirm are compatible.

Q2: What does the 12-month warranty cover, and what is the claims process?
The warranty covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. Each unit ships with a pre-shipment test record. To initiate a claim, contact [email protected] with your order reference and a description of the fault. We will arrange return logistics and either repair or replace the unit at no additional cost.

Q3: How quickly can the LDR2-TRUMPF be dispatched for an emergency breakdown situation?
For in-stock units, same-day or next-business-day dispatch is available for orders confirmed before the daily cut-off. Express courier options (DHL Express, FedEx Priority) are available to most industrial regions globally. Contact us directly at +86 18359293191 for urgent breakdown support and we will prioritize your shipment.

Q4: Should I stock multiple LDR2-TRUMPF units if I operate several machines of the same type?
Yes. For facilities running two or more TRUMPF laser or machine vision systems using the LDR2 platform, holding a minimum of one spare unit per two machines is a widely adopted best practice in industrial spare parts management. The LDR2-TRUMPF has a finite shelf life in active service, and the lead time for sourcing original units on the open market can be unpredictable. Bonded stock eliminates that risk entirely and is often justifiable on a single avoided-downtime event basis.
