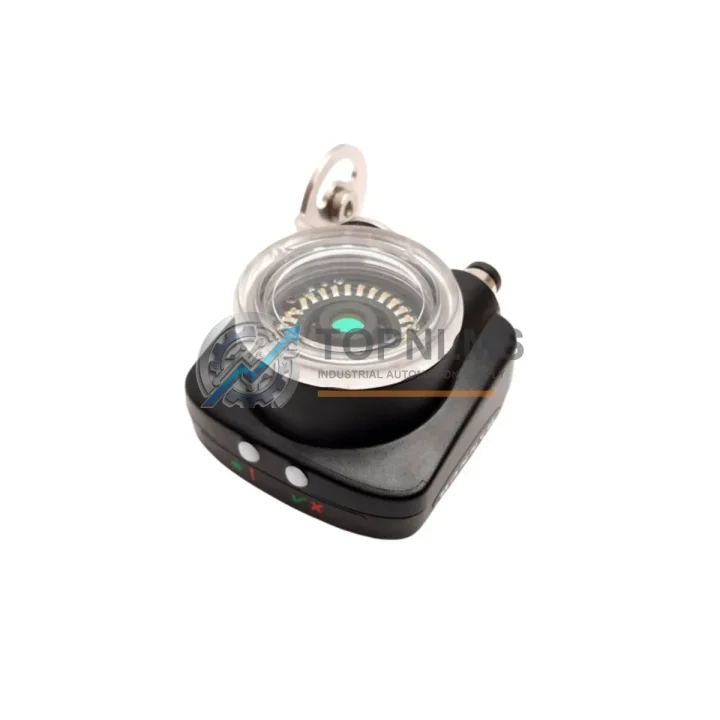

Banner IVUTGPR04 Original Industrial Spare iVu Series Compatible

Product Overview

Banner IVUTGPR04 iVu Series: Original Industrial Spare for System Stability and Uptime Assurance

In modern manufacturing and process automation environments, machine vision systems are mission-critical assets. The Banner Engineering IVUTGPR04 is an original iVu Series industrial image sensor designed for inline inspection, presence/absence detection, pattern matching, and barcode reading on high-speed production lines. When a vision sensor fails unexpectedly, the downstream impact — halted conveyors, rejected batches, unplanned maintenance windows — can cost thousands per hour. Stocking a verified original spare like the IVUTGPR04 is not merely a procurement decision; it is a core element of any responsible preventive maintenance strategy.

The IVUTGPR04 is engineered for direct drop-in replacement within existing iVu Series installations. Its plug-and-play compatibility with Banner iVu Series mounting brackets, lens assemblies, and communication interfaces means field technicians can complete a swap in minutes rather than hours, dramatically reducing mean time to repair (MTTR). Whether your facility runs 24/7 continuous production or operates on scheduled shift cycles, having this unit on the shelf eliminates the lead-time risk associated with emergency procurement.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your iVu Vision System

A machine vision system is only as reliable as its weakest component. When scheduling preventive maintenance for a Banner iVu Series installation, the IVUTGPR04 sensor is typically the primary inspection point — but experienced maintenance engineers know that a sensor failure is rarely an isolated event. Contamination, vibration fatigue, and power fluctuations affect the entire vision cell simultaneously.

During any planned maintenance window involving the IVUTGPR04, it is best practice to simultaneously inspect the iVu Series remote display unit (such as the IVUDRDY0A or IVUDRD0A) for screen integrity and communication continuity. The iVu Series controller or processor module (e.g., IVUBC0A or IVUTG0A) should be checked for firmware currency and I/O terminal condition. Loose or corroded terminals on the M12 4-pin or 8-pin cordsets — the primary power and I/O interface cables — are a leading cause of intermittent sensor faults that are frequently misdiagnosed as sensor failure.

The 24 VDC power supply module feeding the vision cell deserves particular attention: under-voltage conditions accelerate CMOS sensor degradation and cause false inspection failures. If your facility uses a shared DIN-rail power supply (such as a Phoenix Contact QUINT or Siemens SITOP unit) for multiple sensors and I/O modules, verify that the rail voltage holds within ±5% under full load. Alongside the power supply, inspect the terminal block assemblies and fuse modules on the same circuit — a blown fuse or a high-resistance terminal connection can produce symptoms identical to a failed sensor.

For facilities integrating the IVUTGPR04 into a broader PLC-controlled line, it is advisable to audit the digital input/output module on the host PLC (whether Allen-Bradley 1756-IB16, Siemens S7-300 SM321, or Mitsubishi MELSEC QX40) that receives the sensor’s pass/fail discrete output. A degraded I/O channel can mask a healthy sensor’s output, leading to unnecessary sensor replacement. Similarly, if the iVu system communicates over EtherNet/IP or PROFINET, inspect the managed switch port, patch cable, and any communication gateway or protocol converter in the signal path.

Finally, for high-vibration environments such as stamping presses or packaging lines, inspect the sensor mounting bracket and lens assembly for micro-fractures or loosening. A misaligned lens — even by fractions of a millimeter — will degrade inspection accuracy far more than sensor electronics degradation. Keeping a spare lens assembly and mounting hardware alongside the IVUTGPR04 spare sensor ensures a complete, rapid restoration of the vision cell to factory-calibrated performance.

Strategic Replacement Solutions: Extending Legacy System Life

Many facilities continue to operate Banner iVu Series vision systems installed five to ten years ago. OEM production of specific sensor variants may be discontinued or subject to extended lead times, making verified original spares like the IVUTGPR04 increasingly valuable. Rather than undertaking a full vision system upgrade — which requires new mounting hardware, software reconfiguration, operator retraining, and production downtime — a direct spare replacement preserves the existing validated inspection program, calibration data, and PLC integration logic.

The IVUTGPR04 is fully backward-compatible with iVu Series Gen1 and Gen2 controller platforms, meaning no firmware changes or inspection program rewrites are required in most replacement scenarios. This compatibility is a critical procurement advantage: your maintenance team can execute the swap during a scheduled 30-minute PM window rather than a multi-day system changeover. For facilities managing multiple vision stations, establishing a minimum stock level of one IVUTGPR04 per production line — or one shared spare per three to five stations — is a widely adopted inventory strategy that balances carrying cost against downtime risk.

When sourcing replacement units, always verify the full cross-reference SKU set: the IVUTGPR04 is also catalogued under TSBC-ACRTC, 881-620160, 281-501049-C, and 208-501049-7 across different regional distributor systems. Confirming the correct variant against your installed unit’s nameplate before ordering eliminates the risk of receiving an incompatible lens mount or output configuration.

Support FAQ

Q1: What is the warranty coverage for the IVUTGPR04?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes a full functional test prior to shipment, and a test report is available upon request. Warranty claims are processed within 5 business days of unit receipt.

Q2: How do I verify compatibility with my existing iVu Series installation?
The IVUTGPR04 is compatible with all iVu Series TG (trigger-based) controller platforms. Confirm compatibility by matching the lens mount type (C-mount or integrated lens), output configuration (discrete I/O vs. Ethernet), and supply voltage of your installed unit against the IVUTGPR04 datasheet. If you provide your existing unit’s nameplate SKU, our technical team can confirm compatibility before you order.

Q3: What is the recommended inventory strategy for machine vision spares?
For production lines with a single vision inspection station, maintain a minimum of one spare sensor on-site. For multi-station lines or 24/7 operations, a ratio of one spare per three to five installed sensors is standard practice. Spares should be stored in anti-static packaging in a temperature-controlled environment (0–40 °C) and inspected annually for storage integrity.

Q4: What is the lead time and shipping process?
In-stock units ship within 1–3 business days. Each unit is individually tested, labeled with a test-pass sticker, and packed in protective anti-static foam. Worldwide shipping is available via DHL, FedEx, and UPS with full tracking. Express delivery options are available for emergency maintenance situations — contact us directly for priority dispatch arrangements.
