INFINEON TT430N22KOF Original Industrial Spare SEMIPACK3 Compatible: System Stability Through Proven Power Semiconductor Reliability

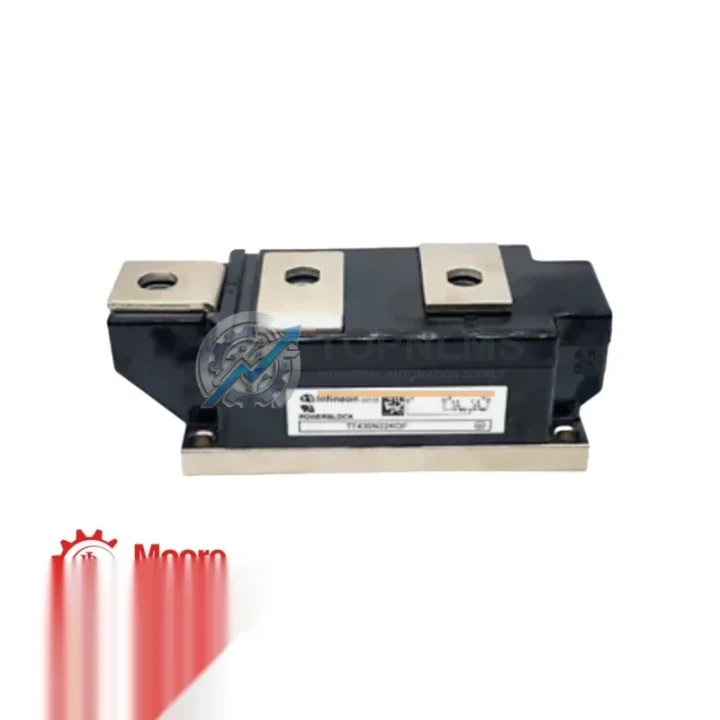

In high-demand industrial environments — from steel rolling mills and large-scale motor drives to crane control systems and rectifier stations — the thyristor module is the silent backbone of power conversion. The INFINEON TT430N22KOF is a 430A / 2200V Dual SCR (Silicon Controlled Rectifier) Thyristor Module in the industry-standard SEMIPACK3 housing, engineered for continuous operation under demanding electrical and thermal conditions. Sourcing an original, tested replacement unit before a failure occurs is the single most effective strategy for protecting system uptime and reducing unplanned maintenance costs.

At TOPNLMS, every TT430N22KOF unit is sourced from verified supply channels, individually inspected, and dispatched with full documentation. Our 12-month warranty covers functional integrity from the moment of delivery, giving procurement engineers and maintenance teams the confidence to stock this module as a long-cycle spare.

Critical Technical Specs

Preventive Maintenance Strategy

A thyristor module failure rarely occurs in isolation. In most industrial power conversion cabinets, the TT430N22KOF operates as part of a tightly coupled electrical circuit where adjacent components are subjected to the same thermal cycling, voltage transients, and load stress. A disciplined preventive maintenance program should treat the entire power stage as a system — not just the failed component.

When scheduling a planned replacement of the TT430N22KOF, maintenance engineers should simultaneously inspect the snubber capacitor and resistor network mounted across each thyristor, as these components absorb dV/dt transients and degrade over time. The gate driver board or firing card — which delivers the precise gate pulse timing to trigger the SCR — should be tested for output signal integrity; a weak or delayed gate pulse is a common root cause of thyristor misfiring and premature failure. If the system uses an INFINEON BSM or SKiiP IGBT module in a hybrid topology, those modules should be checked for thermal interface compound degradation at the same service interval.

The DC bus capacitor bank in the rectifier section should be measured for capacitance and ESR drift — capacitors that have lost more than 20% of rated capacitance introduce ripple that stresses the thyristor junction. Inspect the bus bar connections and copper terminal torque at the module’s anode and cathode terminals; loose connections cause localized heating that accelerates module aging. The heatsink thermal resistance should be verified — accumulated dust, corroded fin surfaces, or degraded thermal compound between the module baseplate and heatsink can raise junction temperature by 15–25°C under full load, dramatically shortening service life.

For systems using a Siemens SIMOREG DC Master, ABB DCS800, or similar DC drive platform that incorporates SEMIPACK-series thyristors in the converter bridge, it is advisable to maintain a matched set of spare modules — typically the full six-pulse bridge complement — so that a single-phase failure can be corrected without waiting for individual unit procurement. Alongside the TT430N22KOF, consider stocking the TT250N16KOF or TT320N16KOF for lower-voltage drive sections within the same facility, as these share the SEMIPACK3 footprint and installation procedure, reducing technician retraining time.

The overcurrent protection fuse (semiconductor-grade, ultra-fast acting, typically aR or gR type) in series with each thyristor arm must be replaced whenever a module is changed — a fuse that has experienced a fault current event may have degraded without visibly blowing, and reusing it eliminates the protection it provides. Finally, review the cooling system performance: fan speed, coolant flow rate, and inlet temperature should all be within specification before returning the drive to service.

Strategic Replacement Solutions

The TT430N22KOF was originally manufactured under the Eupec brand before INFINEON Technologies acquired Eupec’s power semiconductor division. Many legacy industrial systems — particularly those installed in the 1990s and 2000s — were designed around Eupec SEMIPACK modules and continue to operate reliably when maintained with original-specification replacement parts. Sourcing a genuine TT430N22KOF preserves the original gate trigger characteristics, thermal resistance profile, and surge current rating that the drive’s control firmware and protection circuitry were calibrated for.

Attempting to substitute a non-equivalent module — even one with nominally similar voltage and current ratings — risks mismatched dV/dt immunity, different gate charge requirements, or an incompatible SEMIPACK sub-variant footprint. The result is often a repeat failure within weeks, compounding downtime and repair costs. The correct strategy is to replace like-for-like with a verified TT430N22KOF, restore the system to its validated operating state, and then evaluate whether a broader drive modernization project is warranted on a planned basis rather than under emergency conditions.

For facilities managing aging DC drive infrastructure across multiple production lines, establishing a consignment stock agreement for SEMIPACK3 thyristor modules significantly reduces mean time to repair (MTTR). A standing inventory of two to four TT430N22KOF units — rotated on a first-in, first-out basis within the 12-month warranty window — eliminates the 3–10 day procurement lead time that typically extends unplanned downtime events into multi-shift production losses.

Support FAQ

Q1: Is the TT430N22KOF a direct drop-in replacement for the original Eupec module of the same part number?
Yes. INFINEON Technologies acquired Eupec and continued production of the SEMIPACK series under the same part numbering convention. The TT430N22KOF supplied by TOPNLMS meets the original Eupec datasheet specifications for VDRM, IT(AV), ITSM, and gate parameters, and uses the same SEMIPACK3 mechanical footprint for direct installation.

Q2: What pre-shipment testing is performed on each unit?
Every TT430N22KOF unit undergoes visual inspection for physical integrity, terminal condition verification, and functional parameter screening prior to dispatch. Units are packed in anti-static, shock-protected packaging with individual labeling. A 12-month warranty covering functional performance is included with each shipment.

Q3: How should I verify compatibility before installation in my specific drive system?
Confirm the SEMIPACK3 housing designation on your existing module’s label, verify the voltage class (22 = 2200V) and current rating (430A) match your drive’s converter bridge specification, and cross-reference the gate trigger current requirement with your firing card output. If you have the drive’s service manual or original BOM, our technical team at [email protected] can assist with compatibility confirmation before you order.

Q4: What is the recommended inventory strategy for facilities with multiple DC drives using SEMIPACK thyristors?
For facilities with three or more drives using SEMIPACK3 thyristors, we recommend maintaining a minimum of two TT430N22KOF units in bonded stores, reviewed and rotated annually. This covers a single-phase failure on any drive without emergency procurement. For critical production lines where downtime cost exceeds HKD 50,000 per hour, a full six-pulse bridge set (six modules) as a cold-standby assembly is the industry best practice.
