Infineon DD180N16S Replacement Upgrade for DD-Series

Product Overview

Infineon DD180N16S Replacement Upgrade for DD-Series: Seamless Transition from Legacy Rectifier Systems

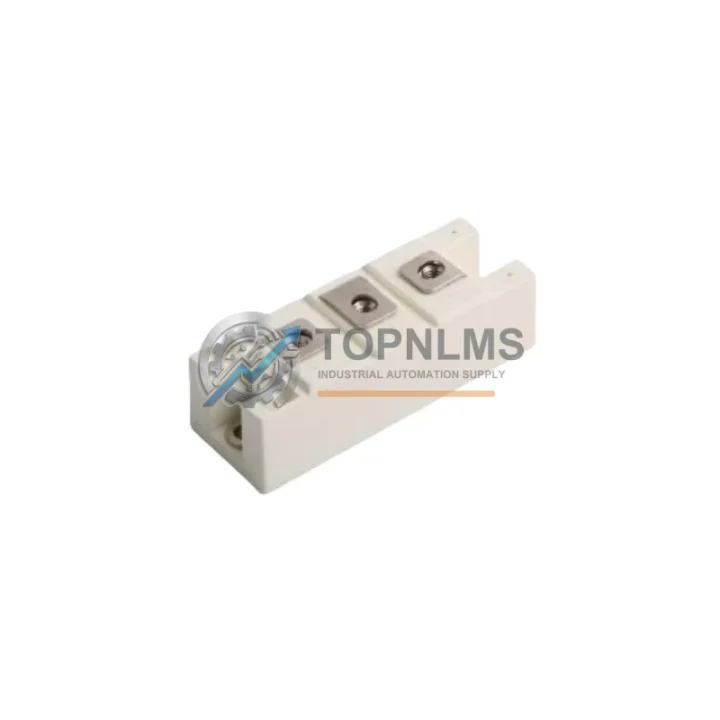

Upgrading or replacing a failed rectifier diode module in an active industrial control system demands precision, speed, and verified compatibility. The Infineon DD180N16S — a 180A, 1600V dual rectifier diode module from Infineon’s proven DD-series — is a direct replacement solution for aging or discontinued power conversion stages found in legacy drive systems, DC bus assemblies, thyristor converters, and industrial rectifier bridges. Whether your facility is migrating from an older Semikron SKD or a discontinued Eupec DD module, the DD180N16S delivers a mechanically and electrically compatible upgrade path with minimal re-engineering.

Industrial sites running legacy variable frequency drives (VFDs), DC motor controllers, uninterruptible power supplies (UPS), or crane and hoist control systems frequently encounter obsolete rectifier modules that are no longer available through OEM channels. The DD180N16S addresses this gap directly: it fits standard 34mm pitch dual-diode module footprints, uses industry-standard M6 power terminals, and operates within the same thermal and electrical envelope as the modules it replaces. Engineers can mount it to existing heatsinks without modification, reuse existing bus bar connections, and retain original gate/control wiring layouts — dramatically reducing retrofit labor and commissioning time.

In drive system retrofits, the DD180N16S is commonly paired with complementary components such as the Infineon FF300R12KE3 IGBT module for the inverter stage, Infineon BSM300GA120DN2 power modules for high-current bridge configurations, and Semikron SKHI22A gate driver boards for isolated gate drive control. When replacing the full rectifier-inverter stack in a legacy Siemens SIMOREG DC Master or ABB DCS800 drive, engineers typically also source Infineon TT250N16KOF thyristor modules for the controlled rectifier front-end and Infineon DD200N16K diode modules as parallel redundancy components in high-availability systems.

For systems using older Eupec or Semikron DD-series modules in crane control panels, the DD180N16S integrates directly into existing Semikron SKD 82/16 rectifier bridge assemblies and is compatible with standard DIN-rail mounted Phoenix Contact TRIO-PS power supply modules used for auxiliary 24VDC control circuits. Communication-layer components such as Siemens PROFIBUS DP interface modules and Beckhoff EL3174 analog I/O terminals remain unaffected during the power module swap, as the replacement is confined to the power conversion layer and does not alter the control or fieldbus architecture.

Thermal management is a critical consideration in any diode module replacement. The DD180N16S is rated for a junction temperature of up to 150°C and a case temperature of 80°C under full load, consistent with its DD-series predecessors. Existing thermal interface materials (TIM) and heatsink assemblies rated for 180A continuous current remain fully compatible. No changes to cooling fan sizing, airflow ducting, or thermal cutout setpoints are required in most standard retrofit scenarios.

From a procurement and supply chain perspective, TOPNLMS maintains verified stock of the DD180N16S sourced from authorized distribution channels. Each unit undergoes pre-shipment functional verification including forward voltage drop testing, reverse leakage current measurement, and thermal resistance spot-check. Units ship from our Xiamen warehouse with full ESD-protective packaging, and standard lead times are 3–7 business days for international destinations. Expedited shipping is available for emergency plant-down situations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful rectifier module replacement rarely involves a single component in isolation. During DD180N16S retrofit projects, engineers typically address the surrounding power conversion architecture to ensure system-level reliability. In three-phase bridge rectifier configurations, the DD180N16S is often installed alongside Infineon TT250N16KOF thyristor modules to form a fully controlled or semi-controlled rectifier front-end. For the inverter stage of the same drive, Infineon FF300R12KE3 IGBT modules provide the switching function with compatible thermal and mechanical interfaces.

In cabinet-level upgrades, engineers frequently replace aging Semikron SKD 82/16 rectifier bridge assemblies with individual DD-series modules for improved serviceability and reduced spare-parts complexity. Auxiliary power for control circuits is typically supplied by Phoenix Contact TRIO-PS 24VDC power supply modules, which mount on the same DIN rail as protection relays and I/O terminals. For systems with analog process signals, Beckhoff EL3174 4-channel analog input terminals provide the signal conditioning layer without requiring changes to the PLC program or fieldbus topology. Where PROFIBUS DP is the plant communication backbone, Siemens DP/DP coupler modules allow the upgraded drive to remain integrated in the existing network segment. Finally, Infineon DD200N16K diode modules serve as parallel redundancy components in high-availability rectifier banks where N+1 configurations are required.

Retrofit Guidance FAQ

Q: Does replacing the DD180N16S require any rewiring of control or signal circuits?
A: No. The DD180N16S is a power-stage component. Its replacement is confined to the AC input and DC output bus connections using M6 terminals. All control wiring, gate driver signals, and fieldbus connections remain untouched.

Q: Is the DD180N16S compatible with existing heatsinks used for predecessor DD-series modules?
A: Yes. The 34mm pitch baseplate footprint and single-side cooling design are consistent across the DD-series family. Existing heatsinks, thermal pads, and mounting hardware are fully reusable. Apply fresh thermal interface material (TIM) during installation.

Q: Will the replacement affect the PROFIBUS DP or PROFINET communication layer of the drive system?
A: No. Communication protocols operate at the control layer, which is independent of the power conversion stage. Replacing the rectifier diode module does not affect fieldbus addressing, network topology, or PLC program execution.

Q: Can the DD180N16S be used in a three-phase fully controlled rectifier bridge alongside thyristor modules?
A: Yes. In semi-controlled bridge configurations, the DD180N16S occupies the diode positions while thyristor modules (e.g., TT250N16KOF) handle the controlled switching positions. This is a standard topology in DC motor drive front-ends.

Q: What is the recommended commissioning procedure after installation?
A: After mechanical installation and torquing of M6 terminals to specification (typically 6–8 Nm), perform a cold insulation resistance test (Megger test) at 500VDC between power terminals and baseplate. Then apply reduced AC input voltage and verify DC output voltage and ripple before restoring full load. No PLC program changes are required.

Q: How long does shipment take for emergency plant-down situations?
A: Standard shipment from our Xiamen warehouse is 3–7 business days internationally. Expedited DHL Express options are available for next-day or 2-day delivery to most industrial regions. Contact us directly at [email protected] or +86 18359293191 for urgent orders.

Warranty Assurance

Every Infineon DD180N16S unit supplied by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Our pre-shipment inspection protocol includes forward voltage drop (VF) measurement at rated current, reverse leakage current (IR) verification at VRRM, visual inspection for mechanical damage, and ESD-protective packaging verification. Units that fail any inspection criterion are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of claim confirmation. Defective units are returned via prepaid shipping label. Our after-sales team responds to technical inquiries within 24 hours on business days. For B2B customers with ongoing procurement requirements, we offer priority stock reservation and blanket order agreements to ensure supply continuity for critical spare parts programs.

Purchasing the DD180N16S through TOPNLMS provides full traceability: each unit is accompanied by a test report, country-of-origin documentation (Germany), and a packing list. We support LC, TT, and trade credit payment terms for qualified industrial buyers.
