INDRAMAT CTA10.1B-000-FW Replacement Solution for CTA10

Product Overview

INDRAMAT CTA10.1B-000-FW Replacement Solution for CTA10: Smooth Transition & Legacy System Compatibility

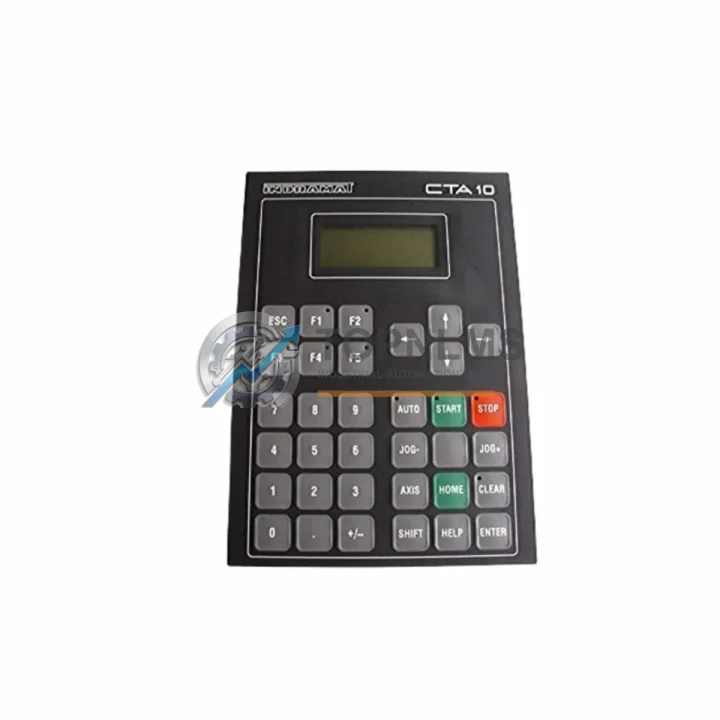

The INDRAMAT CTA10.1B-000-FW is a CTA10 Series HMI Visualization and Operator Panel unit originally manufactured by INDRAMAT (now part of Bosch Rexroth). As legacy INDRAMAT drive and control systems reach end-of-life, sourcing a verified replacement for the CTA10.1B-000-FW has become a critical priority for maintenance engineers and procurement teams managing older servo drive platforms, motion control cabinets, and CNC retrofit projects.

At TOPNLMS, we specialize in supplying hard-to-find, discontinued, and obsolete industrial control components. Our CTA10.1B-000-FW units are sourced from verified channels, fully inspected before shipment, and backed by a 12-month warranty — giving your engineering team the confidence to proceed with planned or emergency replacements without extended downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the CTA10.1B-000-FW is rarely an isolated task. In most INDRAMAT-based control architectures, the operator panel interfaces directly with the drive controller, motion bus, and I/O subsystem. During a planned retrofit or emergency replacement, engineers frequently need to address adjacent components in the same control cabinet.

For systems built around the INDRAMAT TDM or KDS servo drive series, the CTA10.1B-000-FW communicates via the SERCOS fiber-optic ring. If the SERCOS interface module or the fiber-optic cable assembly has degraded alongside the operator panel, both should be replaced simultaneously to avoid a second unplanned outage. Similarly, the INDRAMAT CLM motion logic module — which coordinates axis sequencing and program execution — should be verified for firmware compatibility with the replacement CTA10 panel before commissioning.

In multi-axis systems, the INDRAMAT DDS or MDD servo motor feedback cables and resolver connections should be inspected during the same maintenance window. The CTA10 operator panel displays real-time axis status and fault codes; if encoder feedback signals are degraded, the new panel will surface those faults immediately upon startup, making this an ideal time to address them proactively.

For customers migrating from older INDRAMAT rack-based systems to a modernized Bosch Rexroth IndraControl or IndraDrive platform, the CTA10.1B-000-FW can serve as an interim visualization solution while the broader migration is staged. The PROFIBUS DP or SERCOS communication backbone can often be retained during the transition, reducing the scope of rewiring and program conversion required in the first phase.

Power distribution within the control cabinet — typically managed through a 24 VDC SITOP or equivalent PSU — should be verified to supply adequate current for the replacement panel. If the existing power supply module is aging, replacing it alongside the CTA10.1B-000-FW eliminates a common root cause of intermittent HMI faults. Terminal blocks, cable ferrules, and DIN rail mounting hardware are low-cost items that are frequently overlooked but contribute to long-term reliability after a panel replacement.

For sites running INDRAMAT BTV or MTV operator terminals in parallel with the CTA10 panel, the replacement process should include a review of the operator station wiring topology to ensure consistent fault acknowledgment and mode selection behavior across all HMI nodes in the system.

Retrofit Guidance FAQ

Q: Can I replace the CTA10.1B-000-FW without modifying the existing wiring?
A: Yes. The CTA10.1B-000-FW is a direct drop-in replacement. The connector pinout and panel cutout dimensions are identical to the original unit. No rewiring or cabinet modification is required in standard installations.

Q: Do I need to reload the application program after replacing the operator panel?
A: The CTA10 operator panel does not store the PLC or motion program — that resides in the CLM or drive controller. However, any panel-specific parameter sets or display configurations stored on the original unit will need to be re-entered or restored from backup after replacement.

Q: Is the CTA10.1B-000-FW compatible with SERCOS-based drive topologies?
A: Yes. The CTA10 series was designed for use within INDRAMAT SERCOS environments. The replacement unit maintains full compatibility with the existing SERCOS fiber-optic ring without requiring changes to the communication configuration.

Q: What if my control cabinet has limited space for installation?
A: The CTA10.1B-000-FW uses the standard CTA10 form factor. Physical dimensions are unchanged from the original, so no additional space or bracket modification is needed.

Q: How do I verify the replacement unit is functioning correctly after installation?
A: Power on the system and confirm the panel displays the correct axis status and system mode. Check for active fault codes on the INDRAMAT drive modules. Run a manual jog cycle on each axis to verify feedback and command response before returning the machine to production.

Warranty Assurance

Every CTA10.1B-000-FW unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit undergoes a functional inspection to verify power-on behavior, display integrity, and connector condition. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable via email and phone to support fault diagnosis, installation guidance, and return logistics. We maintain stock of CTA10 series components to ensure rapid dispatch — typically within 1–3 business days from our Xiamen warehouse.

For procurement teams requiring documentation, we can provide inspection reports, packing lists, and commercial invoices suitable for customs clearance and internal asset management. Bulk orders and long-term supply agreements are available for MRO and OEM customers managing multiple INDRAMAT installations.

We understand that unplanned downtime in industrial environments carries significant operational and financial consequences. Our goal is to be a reliable, responsive supply partner — not just a parts vendor.
