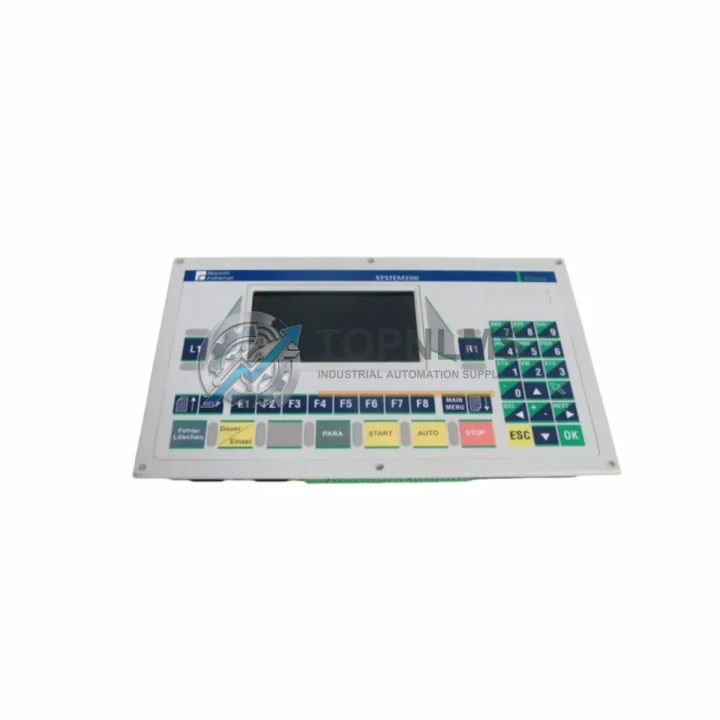

INDRAMAT BTV06.1HN-RS-FW Ruggedized HMI Terminal

Product Overview

INDRAMAT BTV06.1HN-RS-FW Ruggedized HMI Operator Terminal for Harsh Industrial Environments

The INDRAMAT BTV06.1HN-RS-FW is a ruggedized RS Serial HMI operator terminal engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed as part of the INDRAMAT BTV06 series, this panel provides direct access to drive parameter configuration, real-time fault diagnostics, and operational status monitoring for INDRAMAT servo drive systems. Whether deployed on a continuous steel rolling line, a high-cycle injection moulding machine, or a hazardous-area process control cabinet, the BTV06.1HN-RS-FW delivers the interface reliability that mission-critical automation demands.

Industrial facilities operating in high-temperature foundries, high-humidity coastal plants, dusty mining galleries, or environments subject to constant mechanical vibration require operator terminals that go beyond standard commercial-grade specifications. The BTV06.1HN-RS-FW is built to withstand these conditions, maintaining stable RS serial communication with the host drive controller even under sustained electromagnetic interference from adjacent variable-frequency drives, large motor starters, and high-current bus bars. Its sealed front panel resists ingress of fine metallic dust and coolant mist common in machining and metalworking environments, protecting the display and keypad matrix from premature degradation.

Rugged Specifications Table

Comprehensive Protection Solutions

The BTV06.1HN-RS-FW does not operate in isolation — it is the human interface layer of a tightly integrated INDRAMAT drive and control architecture. In a typical servo press or CNC machining centre, the terminal connects via RS serial link to an INDRAMAT TDM 1.2 servo drive module, allowing operators to read and write axis parameters without interrupting the production cycle. Alongside the drive, an INDRAMAT KDS 1.1 digital AC servo controller may govern spindle or feed axis motion, with the BTV06.1HN-RS-FW providing a unified diagnostic window across both axes.

In larger multi-axis systems, the terminal integrates with INDRAMAT CLM 1.3 or CLM 1.4 CNC motion logic modules, enabling parameter synchronisation across coordinated axes from a single handheld or panel-mounted interface. For power conditioning and bus stability, INDRAMAT TVD 1.2 or TVW 1.2 power supply units feed the DC bus, and the BTV06.1HN-RS-FW can display bus voltage status and regenerative feedback alarms in real time, allowing maintenance engineers to act before a fault escalates to an unplanned shutdown.

Safety integrity is further reinforced when the BTV06.1HN-RS-FW is deployed alongside INDRAMAT DDS 2.1 digital drive controllers and paired with dedicated safety relay modules or emergency-stop monitoring units within the control cabinet. In high-cycle packaging lines or automotive body-in-white welding cells, where a single axis fault can cascade across an entire production segment, the ability to read fault codes and reset parameters directly from the BTV06.1HN-RS-FW — without requiring a laptop or proprietary software dongle — dramatically reduces mean time to repair. Communication integrity is maintained through shielded RS serial cables routed away from high-voltage drive output conductors, a practice that the BTV06.1HN-RS-FW’s differential signal architecture supports natively.

For facilities managing mixed INDRAMAT and third-party I/O infrastructure, the terminal’s parameter export capability supports documentation of drive configurations, which can then be archived alongside INDRAMAT RAC 2.2 or RAC 3.1 AC servo drive commissioning records. This is particularly valuable during planned maintenance windows in continuous process industries, where configuration backup and rapid parameter restore are essential to minimising restart time after a drive replacement.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the BTV06.1HN-RS-FW is deployed in wellhead pump drive cabinets and compressor station motor control centres, where ambient temperatures can exceed 45 °C and airborne hydrocarbon particulates demand sealed enclosures. The terminal’s ability to operate without active cooling and its resistance to chemical vapour ingress make it a preferred diagnostic interface in these environments.

In underground mining operations, where diesel particulate, rock dust, and mechanical shock are constant factors, the BTV06.1HN-RS-FW is mounted in reinforced control cabinets on continuous miners and longwall shearer drives. Maintenance crews rely on its direct fault-code readout to diagnose INDRAMAT drive faults without extracting the drive module from the machine — a critical advantage when working in confined headings with limited tooling access.

In power generation and grid infrastructure, including coal-fired and hydroelectric plant auxiliary systems, the terminal supports parameter management for servo-driven valve actuators and turbine governor control drives. Its EMI immunity is particularly valued in switchyard environments where high-voltage switching transients are routine.

In water and wastewater treatment facilities, the BTV06.1HN-RS-FW is used on pump and blower drive systems operating in high-humidity, chemically aggressive atmospheres. Plant operators use the terminal to monitor drive load profiles and adjust ramp parameters seasonally as flow demand changes, without requiring specialist drive engineers on site.

In metallurgical and steel production environments — rolling mills, continuous casting lines, and electric arc furnace auxiliary drives — the terminal withstands radiated heat, scale dust, and the intense electromagnetic fields generated by large thyristor rectifier banks. Its robust keypad and display remain legible and responsive even after years of continuous service in these conditions.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the BTV06.1HN-RS-FW?
The 12-month warranty covers all manufacturing defects and functional failures under normal industrial operating conditions from the date of shipment. If the unit fails to perform its specified RS serial communication, parameter display, or keypad input functions within the warranty period, we will repair or replace it at no charge. The warranty does not cover physical damage caused by incorrect installation, overvoltage events beyond rated limits, or unauthorised modification.

Q2: How is the BTV06.1HN-RS-FW tested before shipment?
Every unit undergoes a full functional test prior to dispatch. This includes verification of RS serial communication link establishment, display integrity across all character positions, keypad matrix response, and power supply stability. Units that do not pass all test criteria are quarantined and not shipped. A test record is retained for traceability. Customers requiring a formal test report may request one at the time of order.

Q3: Is the BTV06.1HN-RS-FW compatible with all INDRAMAT drive generations?
The BTV06.1HN-RS-FW is designed for use with INDRAMAT RS serial-compatible drive families, including TDM, KDS, DDS, MDD, and RAC series controllers. Compatibility depends on the firmware version of the target drive. We recommend confirming the drive’s firmware revision and parameter set version before ordering. Our technical team can assist with compatibility verification based on your drive nameplate data — contact us with your drive model and firmware suffix for confirmation.

Q4: Can you support long-term or repeat supply of the BTV06.1HN-RS-FW for ongoing maintenance programmes?
Yes. We maintain dedicated stock of BTV06 series operator terminals and can support scheduled maintenance programmes, annual spare parts contracts, and emergency breakdown supply. For facilities managing fleets of INDRAMAT-equipped machines, we recommend establishing a standing spare parts arrangement to ensure availability without lead-time risk. Contact our team to discuss volume pricing, reserved stock agreements, and priority dispatch options for critical infrastructure operators.
